Additional Pictures
| Close-up view
of the DIS206A Nine-Digit Calculator Numeric Seven-Segment LED Display. Full-Hybrid COB Technology, FR4 Substrate, 19-pin Package. 9 Digits, Common Cathode, 0.12" Character Height.   |

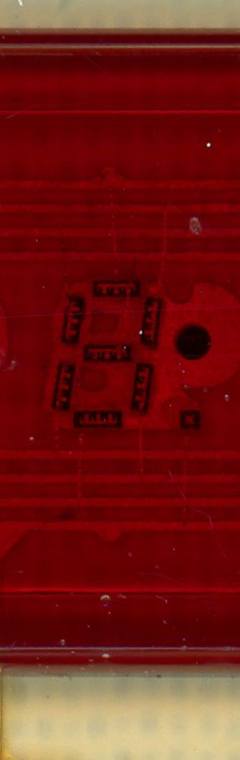

| Close-up
view of one character of the DIS206A Seven-Segment LED Display. Seven Segment GaAsP chips and one GaAsP Decimal Point chip per Digit. Common Cathode, 0.12" Character Height.  |
