Additional Pictures

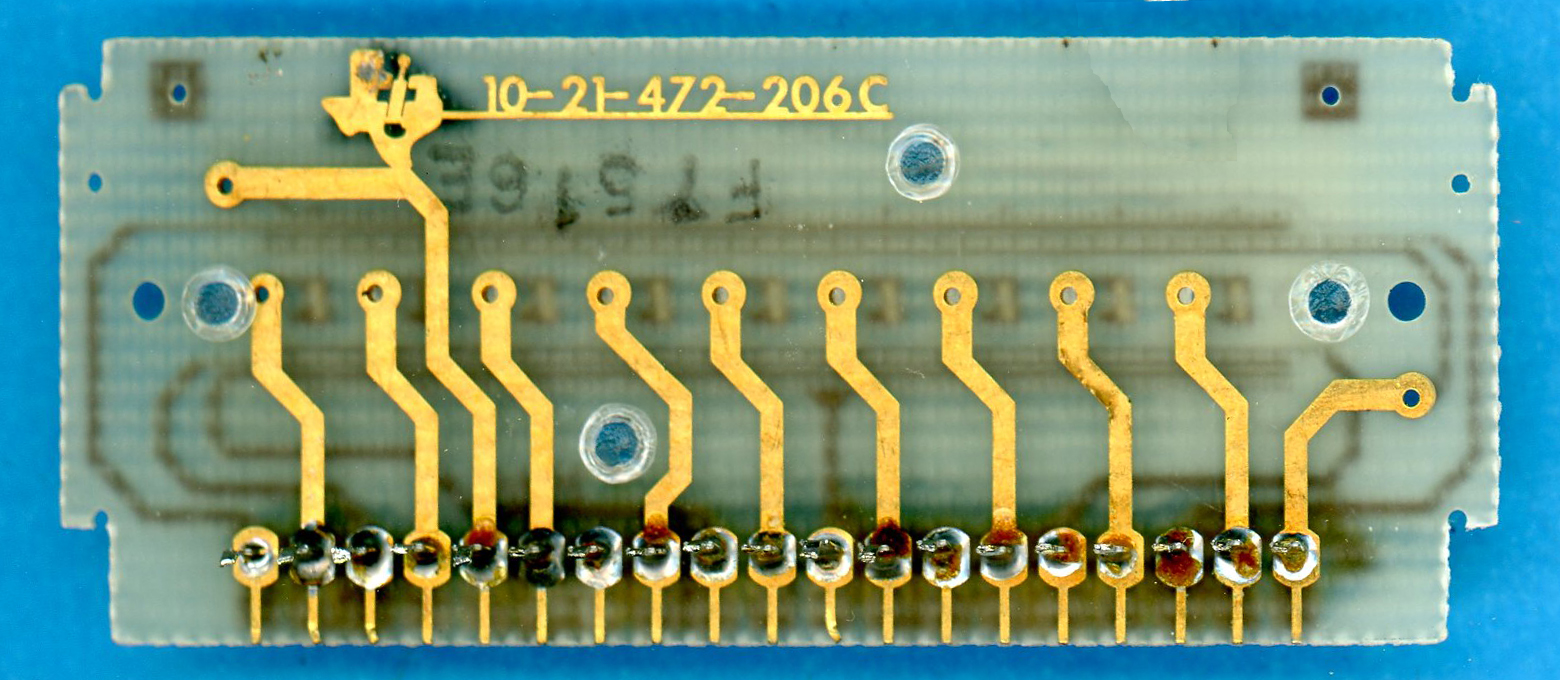

| Close-up view
of the DIS206C Nine-Digit Calculator Numeric Seven-Segment LED Display. PCB Technology, 19-pin Package. 9 Digits, Common Cathode, 0.1" Character Height.   |

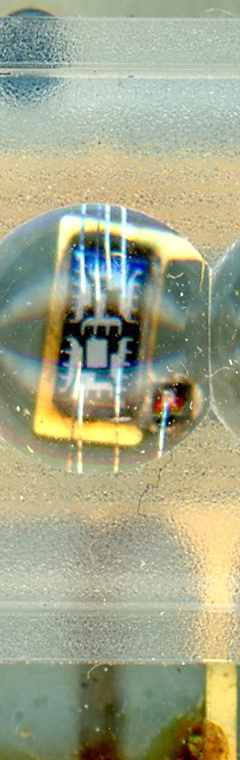

| Close-up
view of one character of the DIS206C Seven-Segment LED Display. One GaAsP chip for Seven Segments and one GaAsp chip for the Decimal Point per Digit. Common Cathode, 0.10" Magnified Character Height.  |
