Additional Pictures
| Close-up view

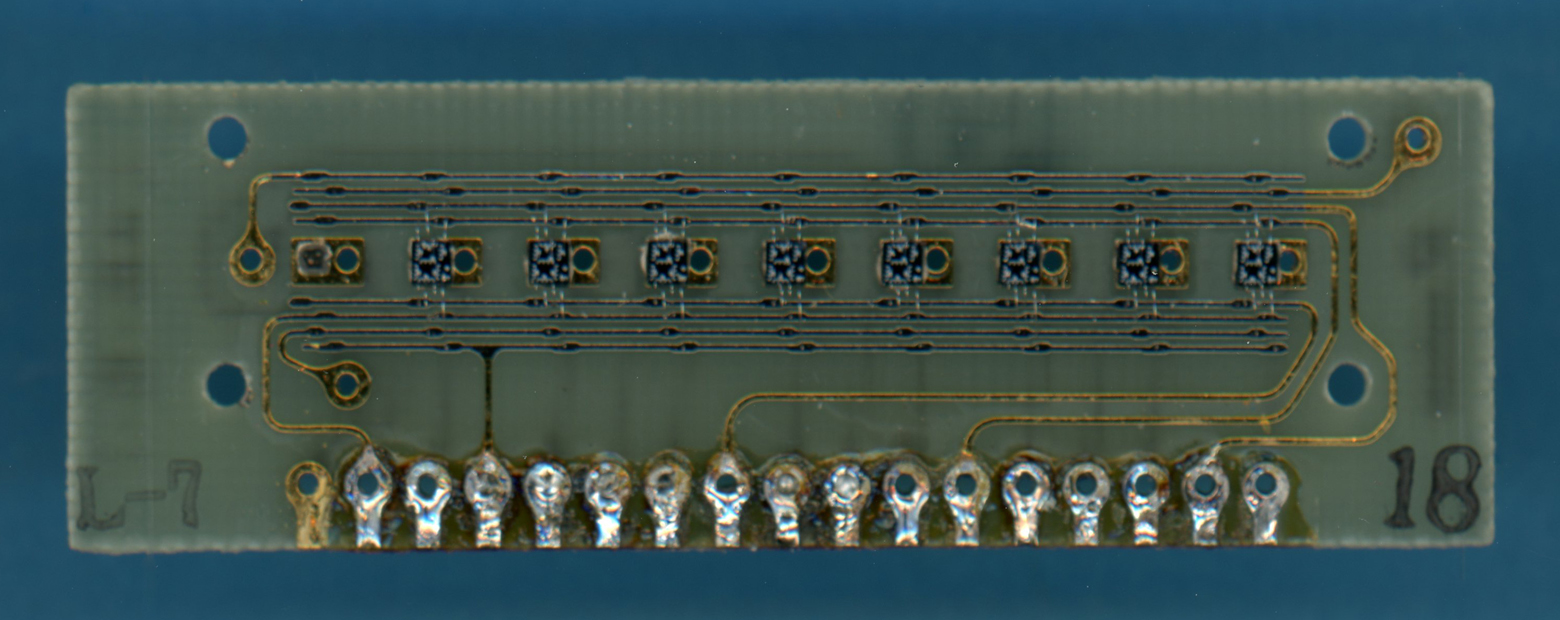

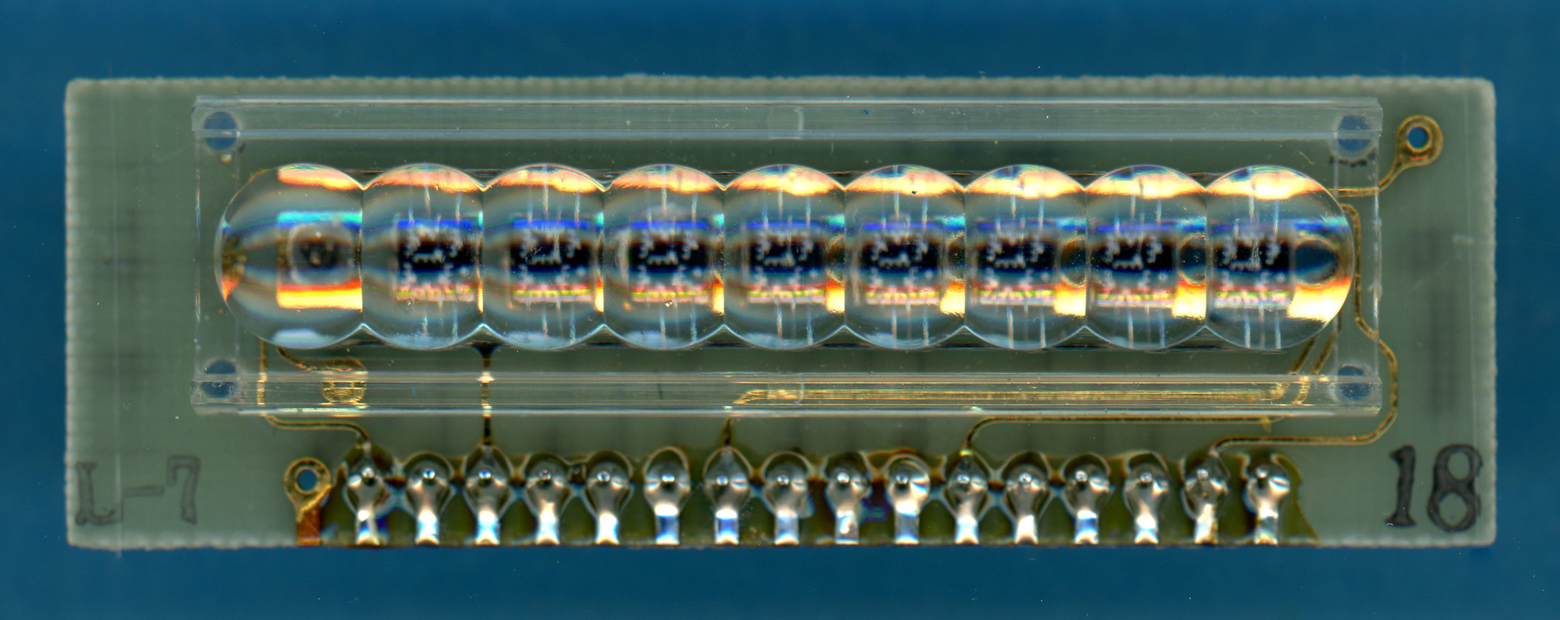

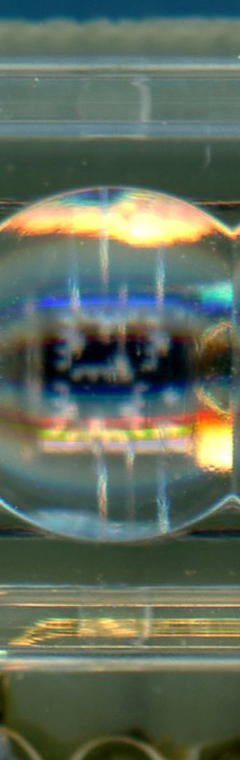

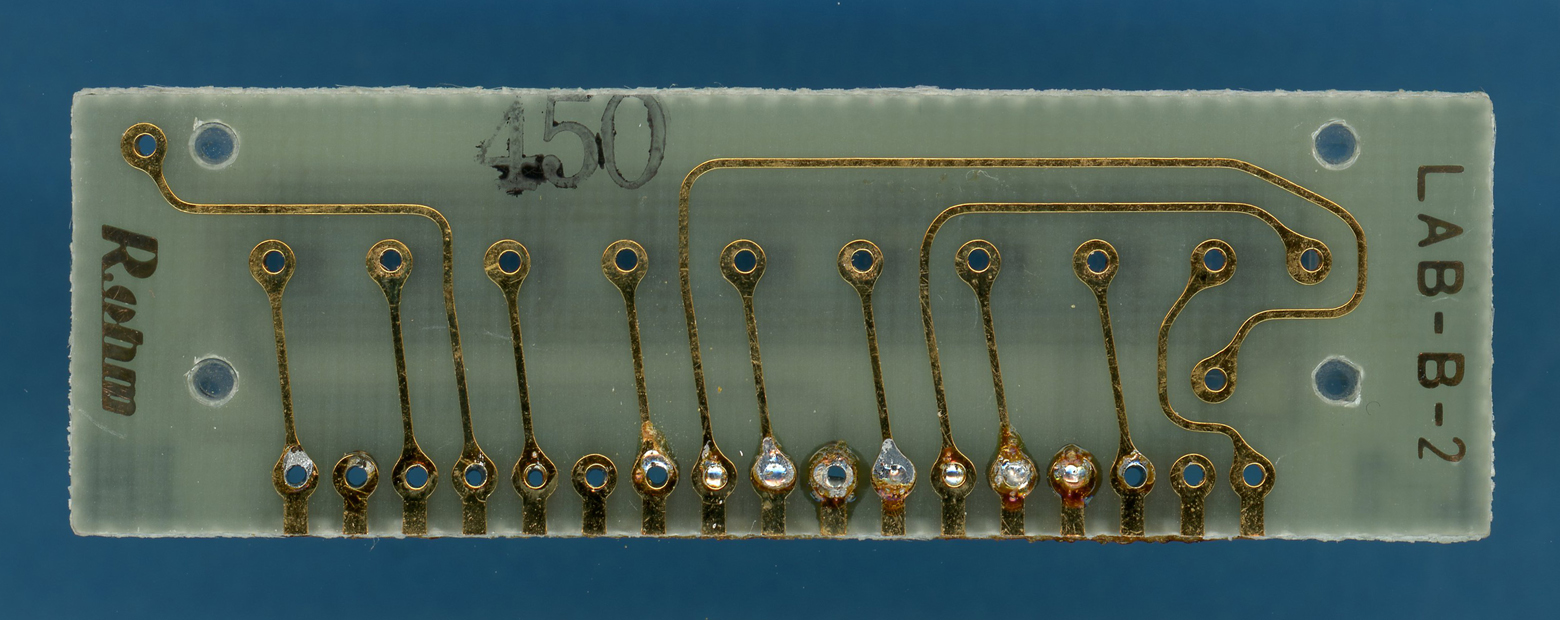

of the LAB-B-2 Nine-Digit Calculator Numeric Seven-Segment LED Display. Semi-Hybrid COB Technology, FR4 Substrate, 17-pin Package. 8 Digits, Common Cathode, 0.08" Magnified Character Height.   |
|
Close-up
view of the LAB-B-2 Nine-Digit Calculator Numeric Seven-Segment LED Display
Assembly with the lens removed. |
|

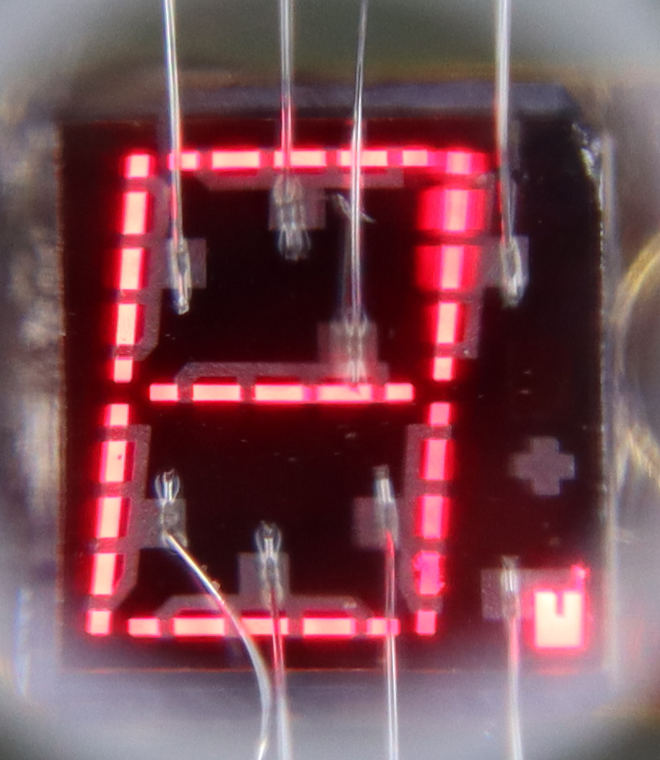

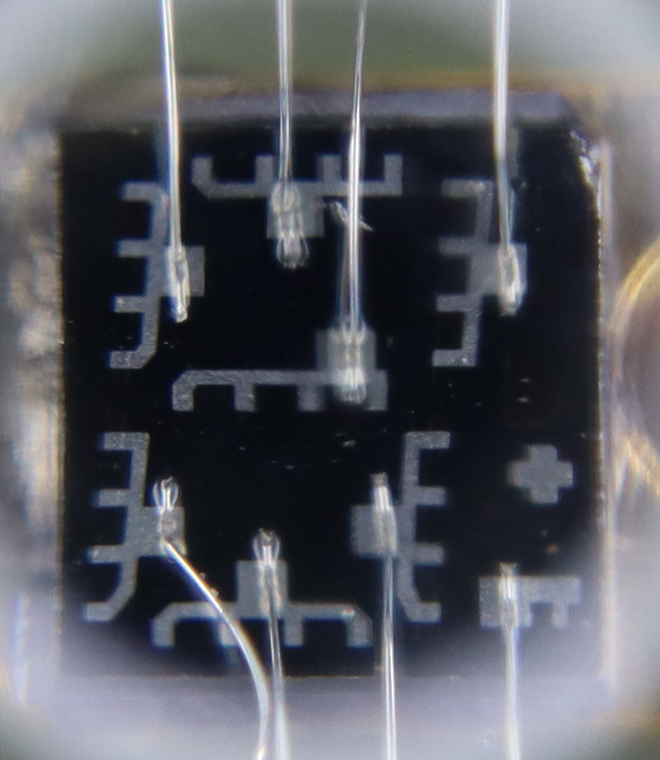

| Close-up
view of one character of the LAB-B-2 Seven-Segment LED Display. One GaAsP chip for Seven Segments and Decimal Point per Digit. Common Cathode, 0.10" Magnified Character Height.  |
|

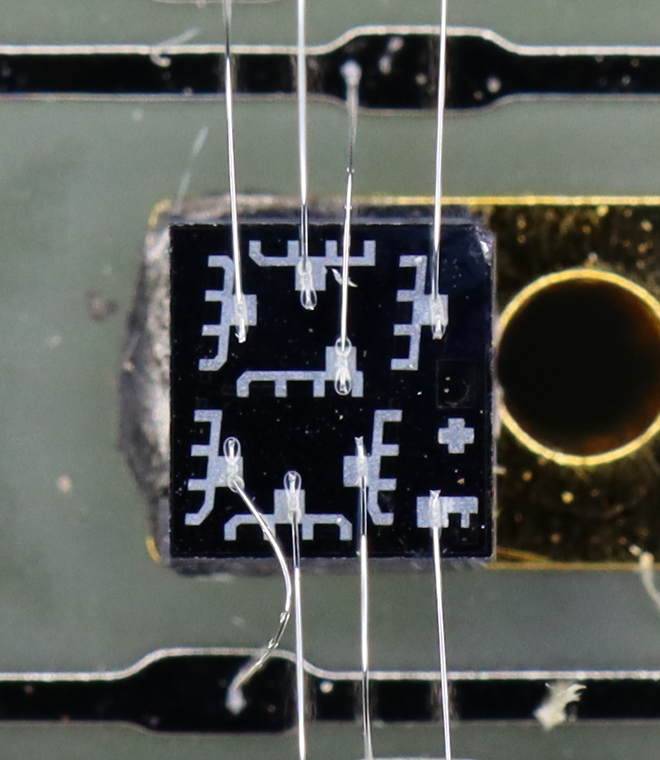

Die photo of the LAB-B-2. 4,800
DPI. |

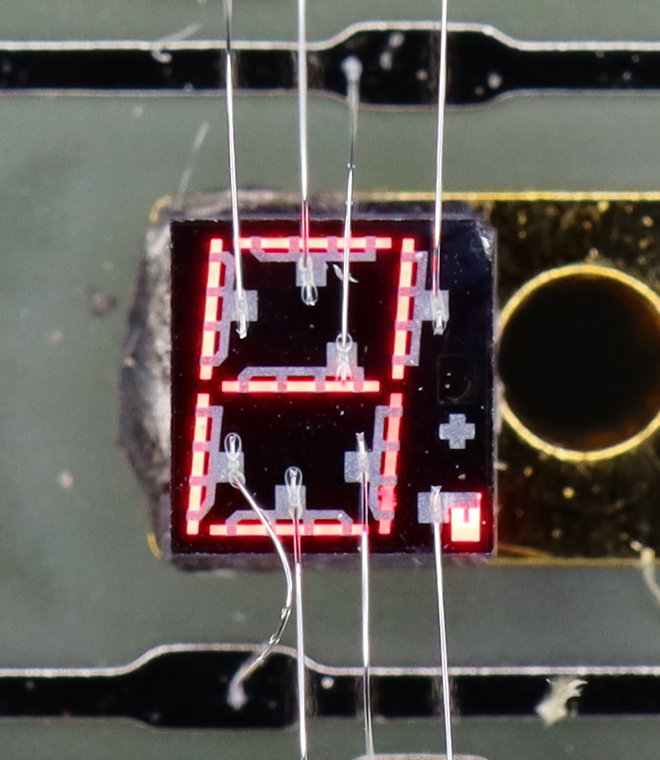

Die photo of the LAB-B-2, 10 mA
per Segment. |
Die photo of the LAB-B-2 with
Lens. |
Die photo of the LAB-B-2 with
Lens, 10 mA per Segment. |
