Additional Pictures

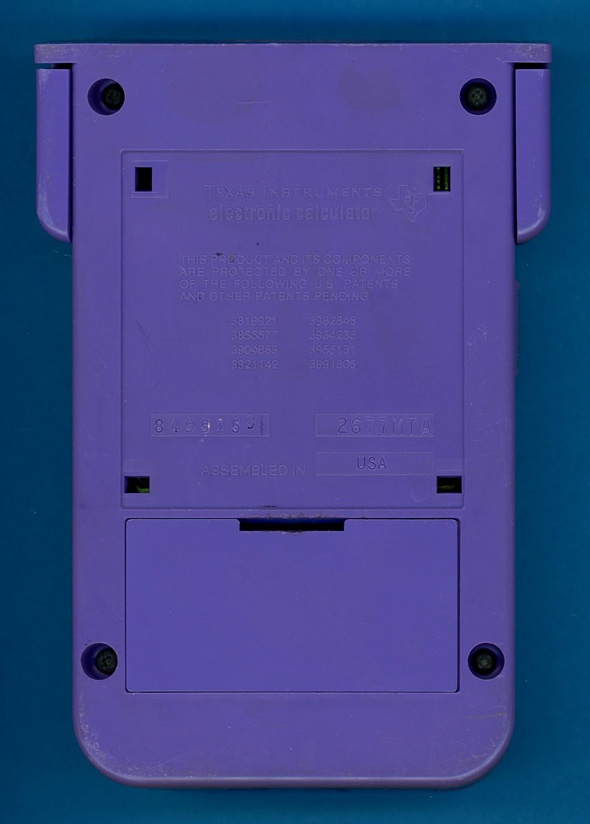

| This MATH MAGIC was manufactured
in June 1977 by Texas Instruments in Midland, TX (Date code 2677 MTA »week 26 year 1977).
|

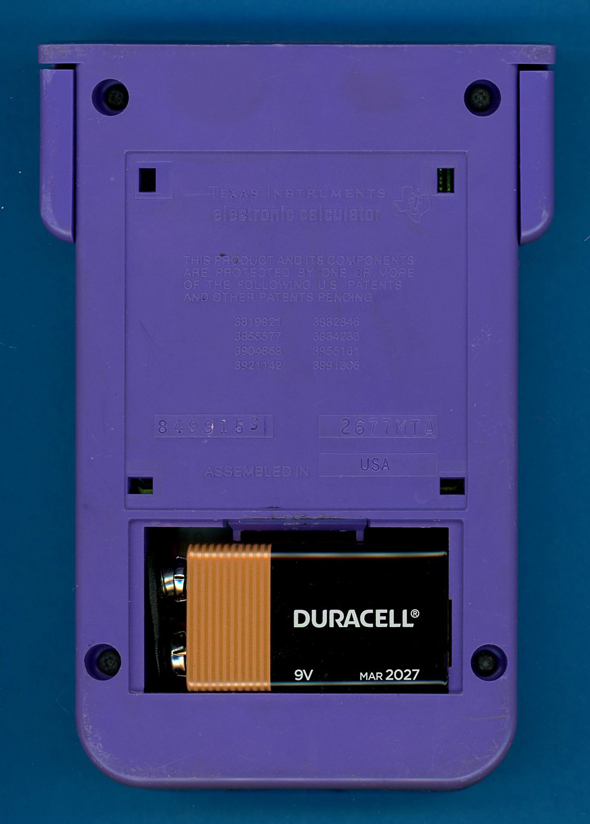

The MATH MAGIC is powered
by a 9V battery. |

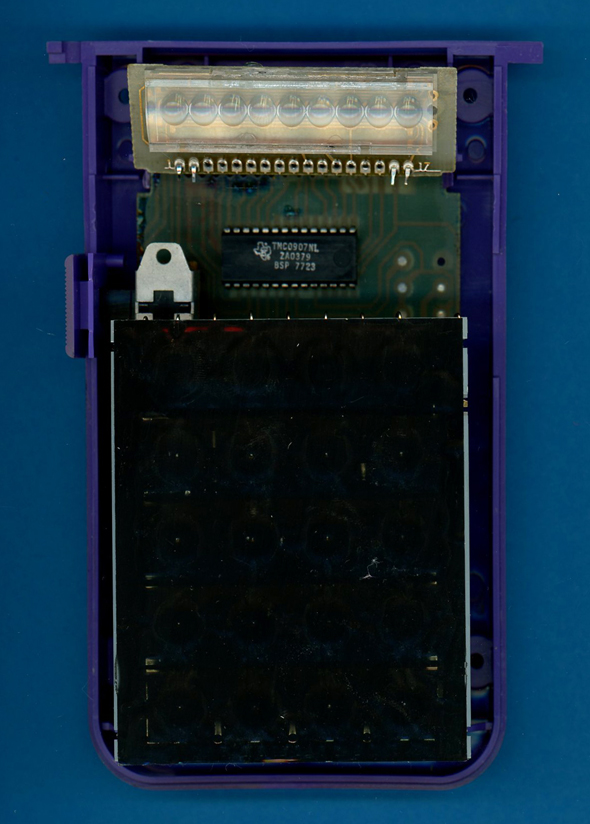

The MATH MAGIC with
the front part of its housing removed. |

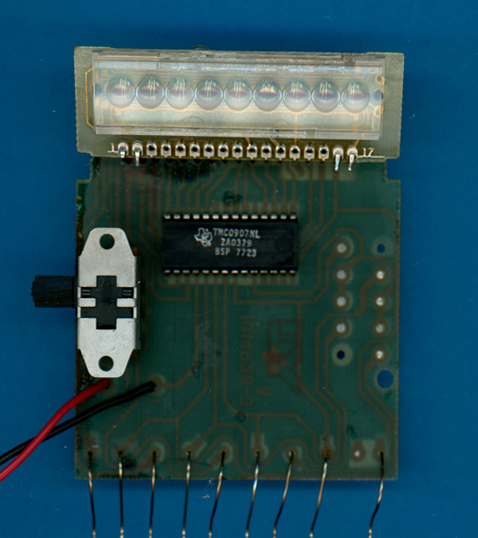

| The printed circuit board
(PCB) of the MATH MAGIC is centered around a TMC0907 single-chip calculator circuit.
|

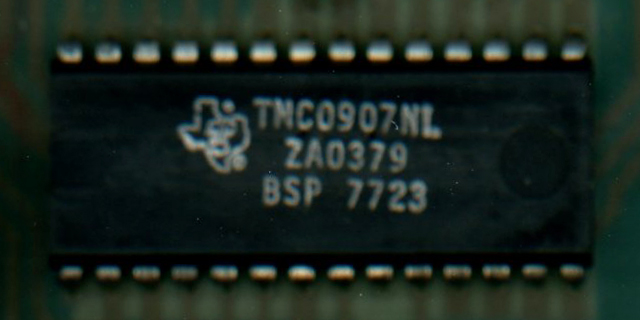

| Close-up view of
a
TMC0907 packaged in a 28-pin SPDIP (Shrink Plastic Dual In-line Package).  |
