Additional Pictures



The binder of the Spelling B with both the device and activity book inside.

This Spelling B was manufactured in April 1980 by
Texas Instruments in Abilene, TX (Date code ATA 1580 » wk 15 yr 1980).

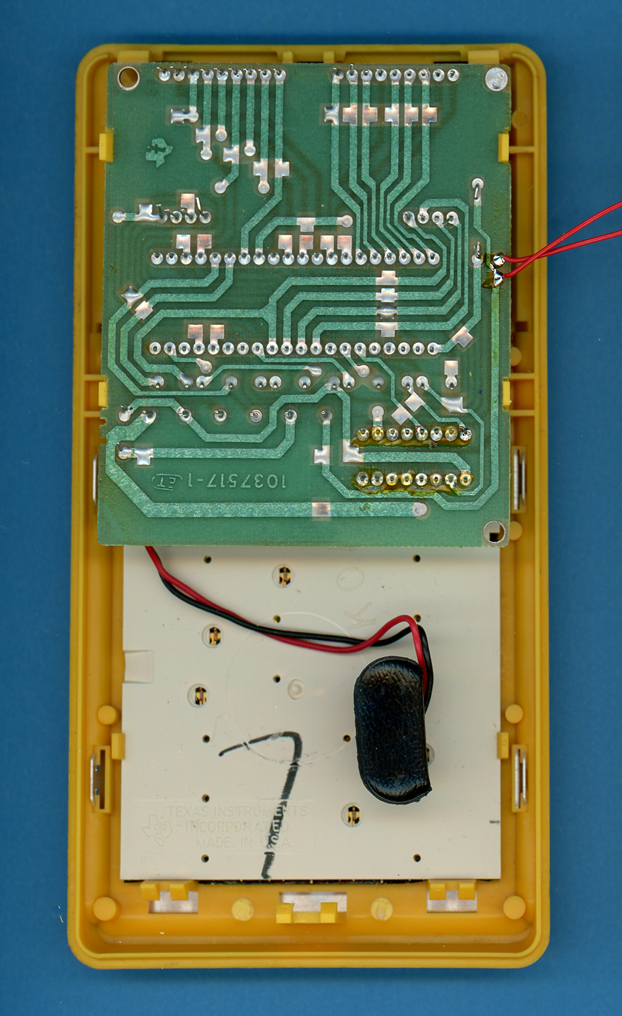

Inside-view of the Spelling B manufactured in April 1980.

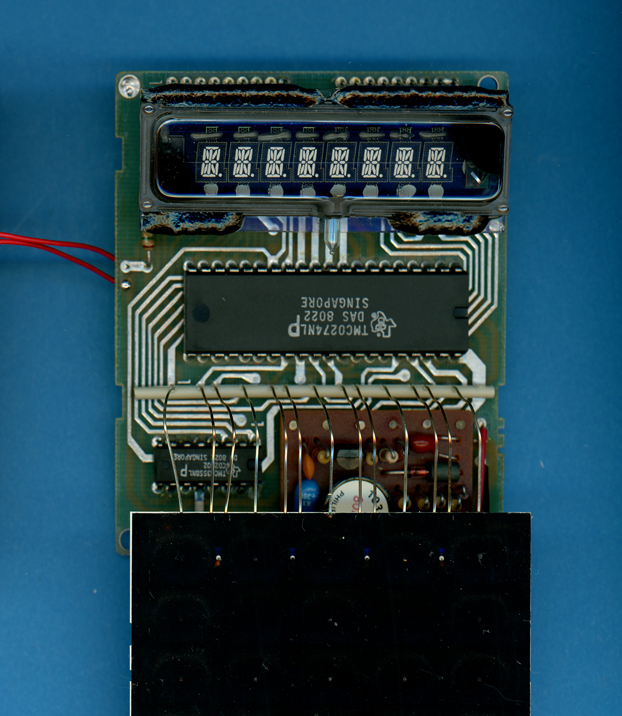

The printed circuit board (PCB) of the later Spelling B is centered
 around a TMC0274 single-chip microcontroller supported by a TMC0355 chip.

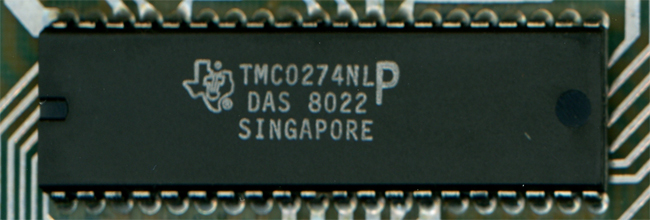

Close-up view of a TMC0274 single-chip calculator circuit.


Close-up view of a TMC0355 Speech ROM.




If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, April 22, 2021. No reprints without written permission.
