Additional Pictures



The binder of the Spelling B with both the device and activity book inside.

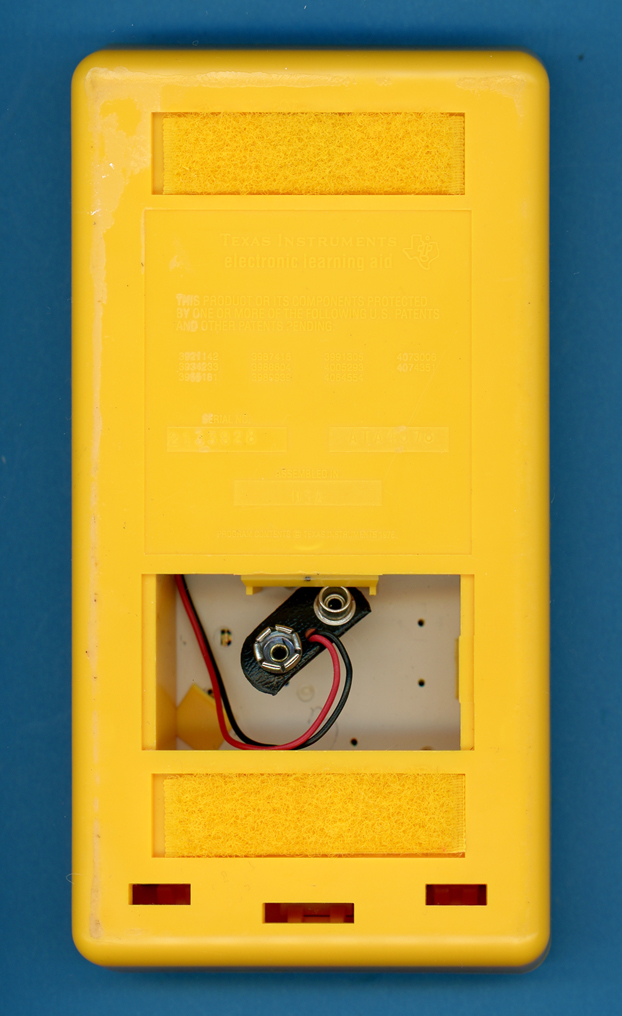

This Spelling B was manufactured in December 1978 by
Texas Instruments in Abilene, TX (Date code ATA 4978 » wk 49 yr 1978).

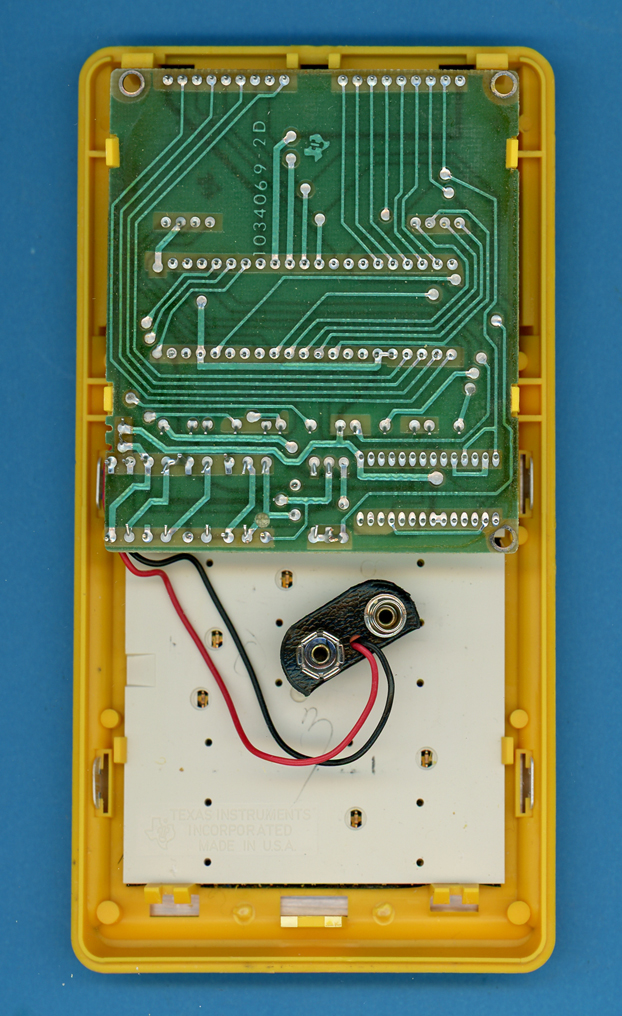

Inside-view of the Spelling B manufactured in December 1978.

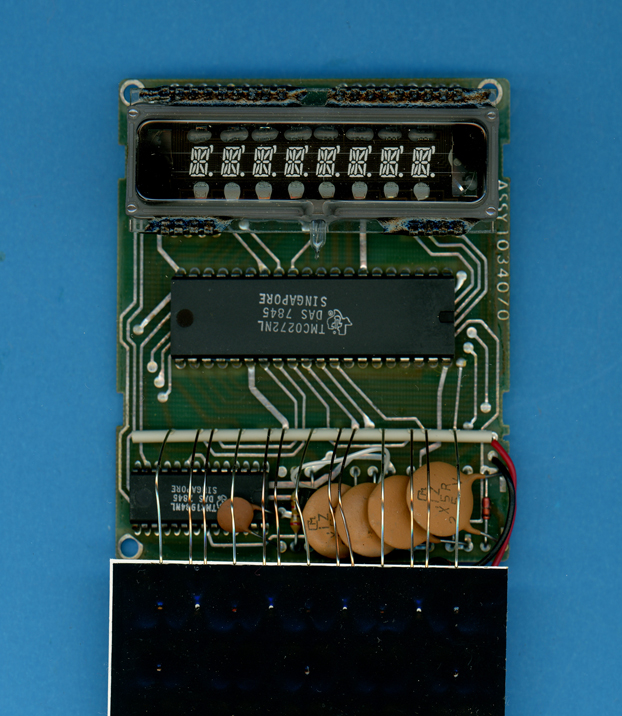

The printed circuit board (PCB) of the early Spelling B is centered
 around a TMC0272 single-chip microcontroller supported by a TMC1984 chip.

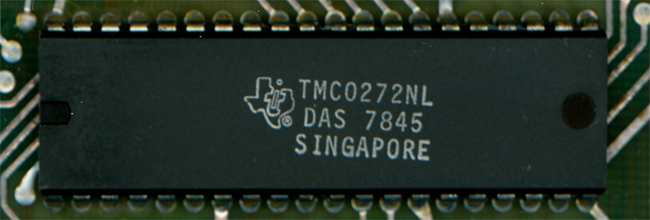

Close-up view of a TMC0272 single-chip calculator circuit.

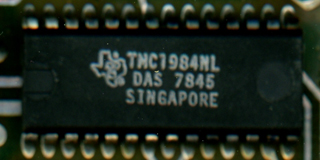

Close-up view of a TMC1984 single-chip calculator circuit.
