Additional Pictures

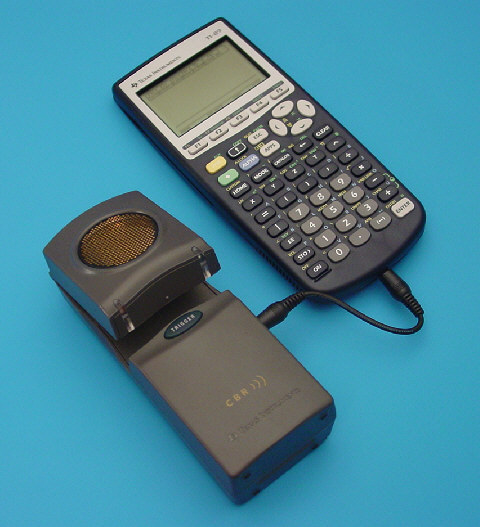

| The CBR
system connected
with the link cable to a TI-89 graphing calculator. The sonic sensor is slightly adjusted to a target.
|
|

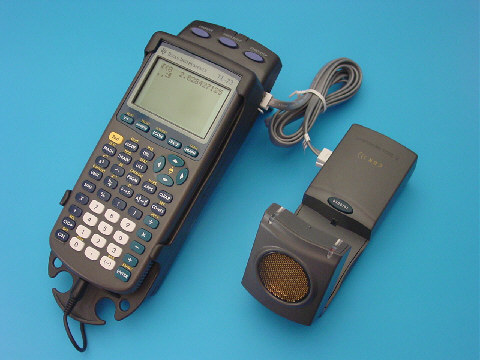

| The CBR
system connected to the motion input of the CBL2
system. A TI-73 graphing calculator controls this powerful combination.
|
|
| The sonic transducer is
located under the black component in the middle of the small PCB.
|

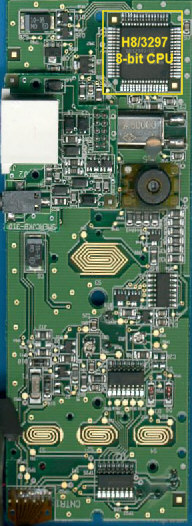

The main PCB of the
CBR system with a powerful H8/3297 microcontroller.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 16, 2003. No reprints without written permission.
