Additional Pictures

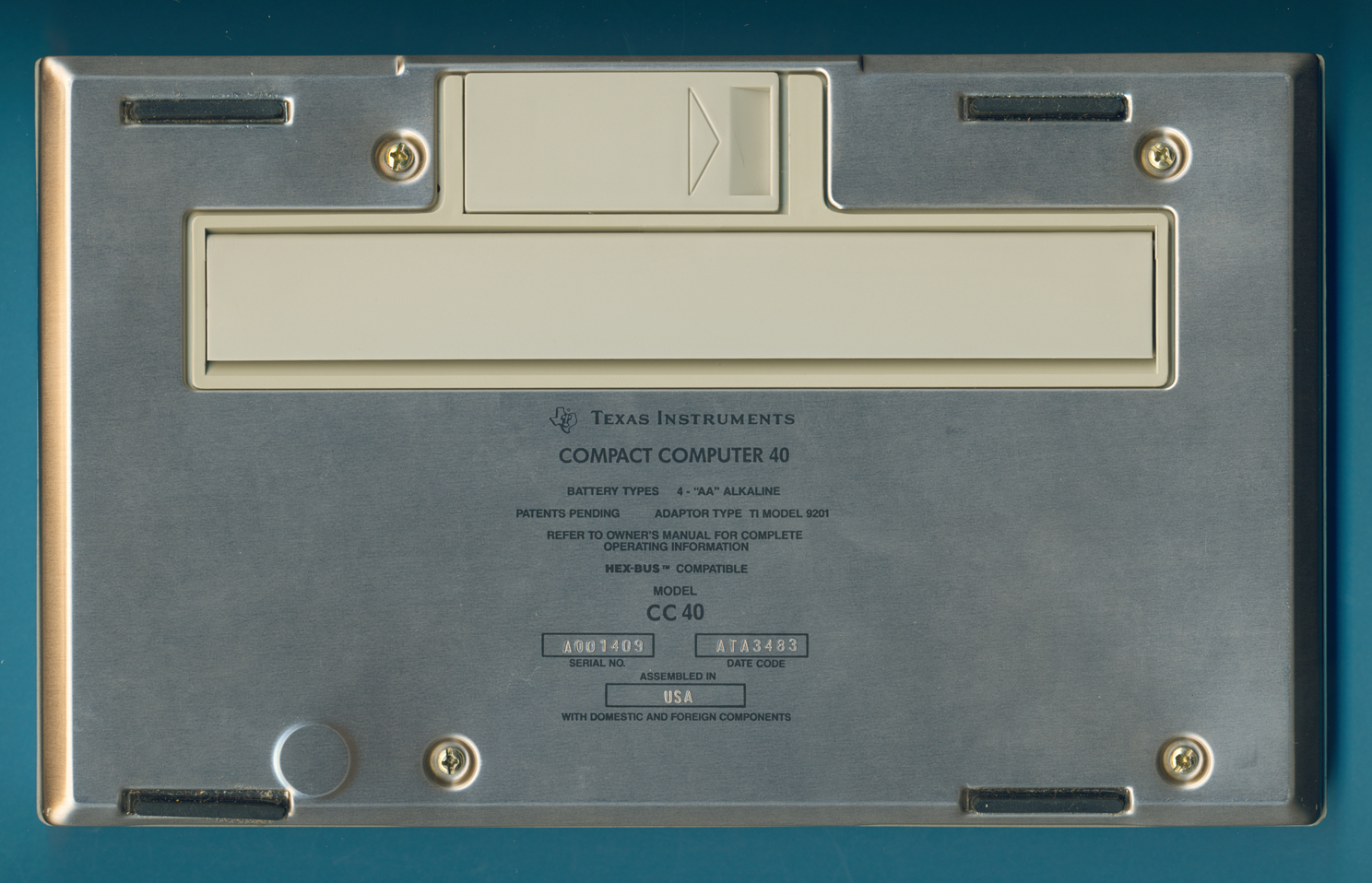

This CC-40 with 18k Bytes RAM was manufactured in August 1983 by Texas Instruments in Abilene, TX (Date code ATA 3483 wk 34 yr 1983.

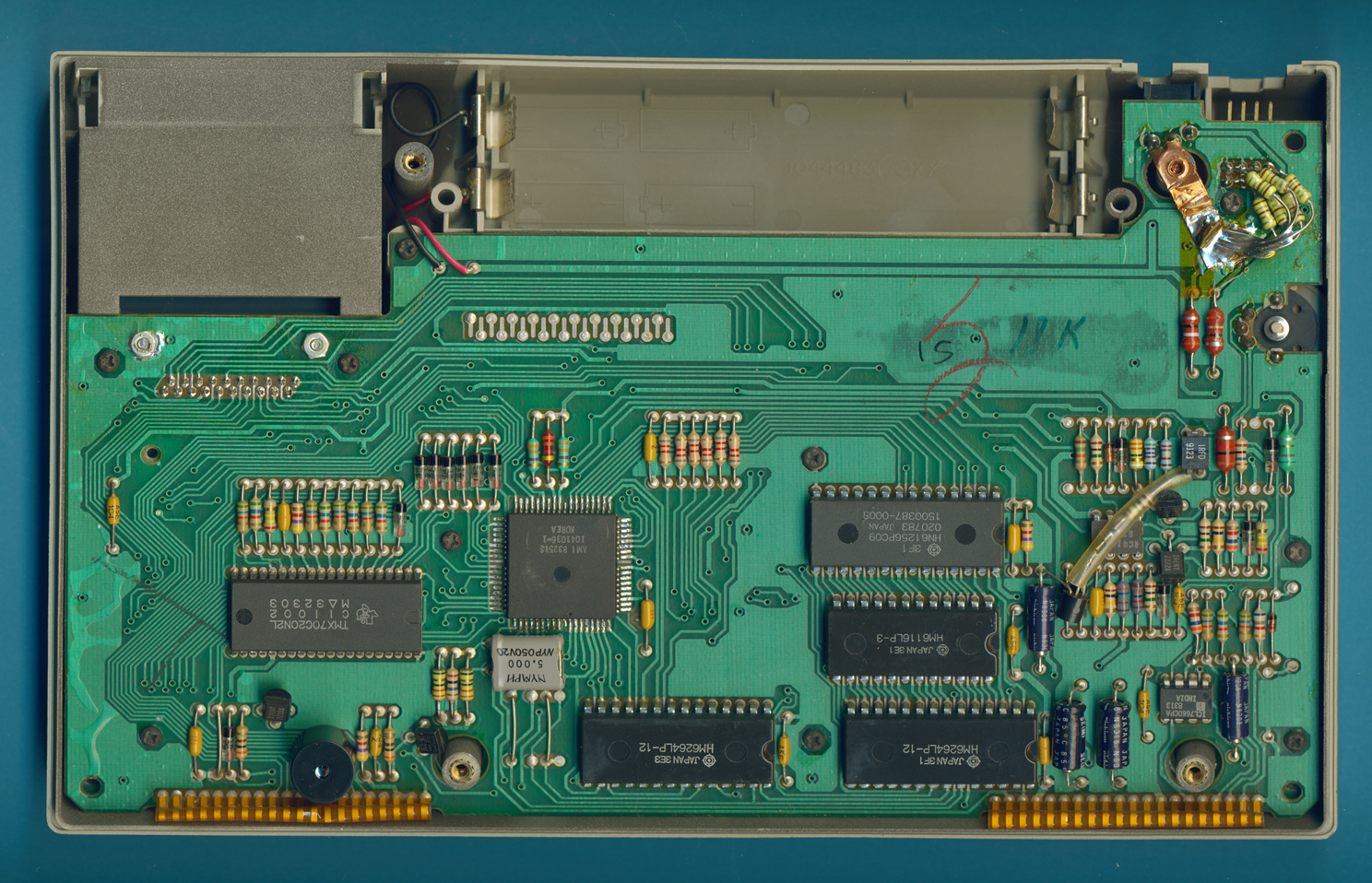

The CC-40 with 18k Bytes RAM dismantled with the Main Printed Circuit Board (CPB).

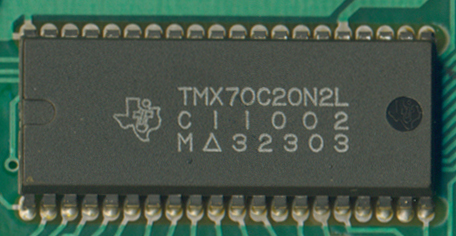

The TMX70C20 8-bit microcontroller of the CC-40.

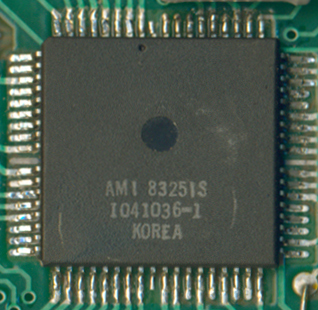

The AMI 1041036 ASIC.

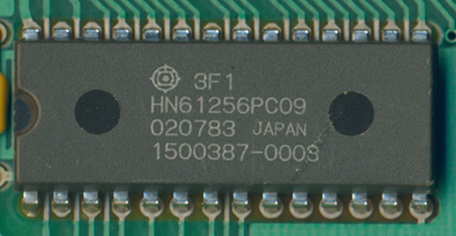

The Hitachi HN61256 ROM with 32k Bytes capacity.

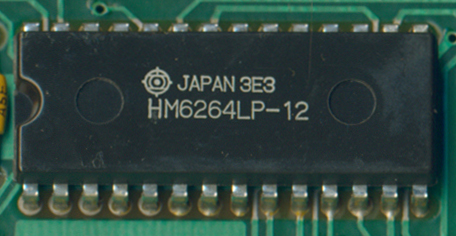

One of the two Hitachi HM6264 RAMs with 8k Bytes capacity, each.

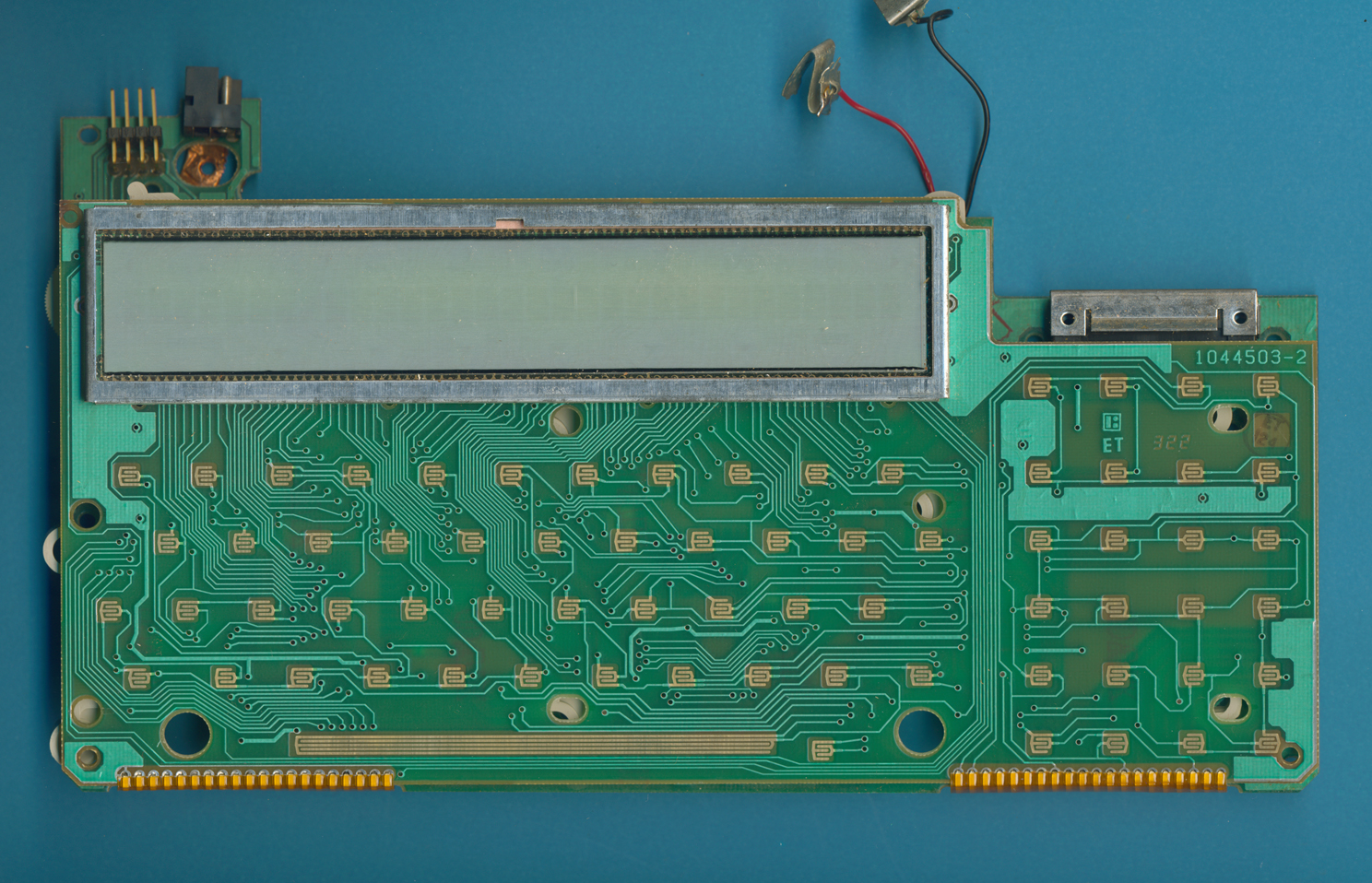

 The front view of the second Printed Circuit Board of the CC-40 with the LC-Display and the keyboard contacts.

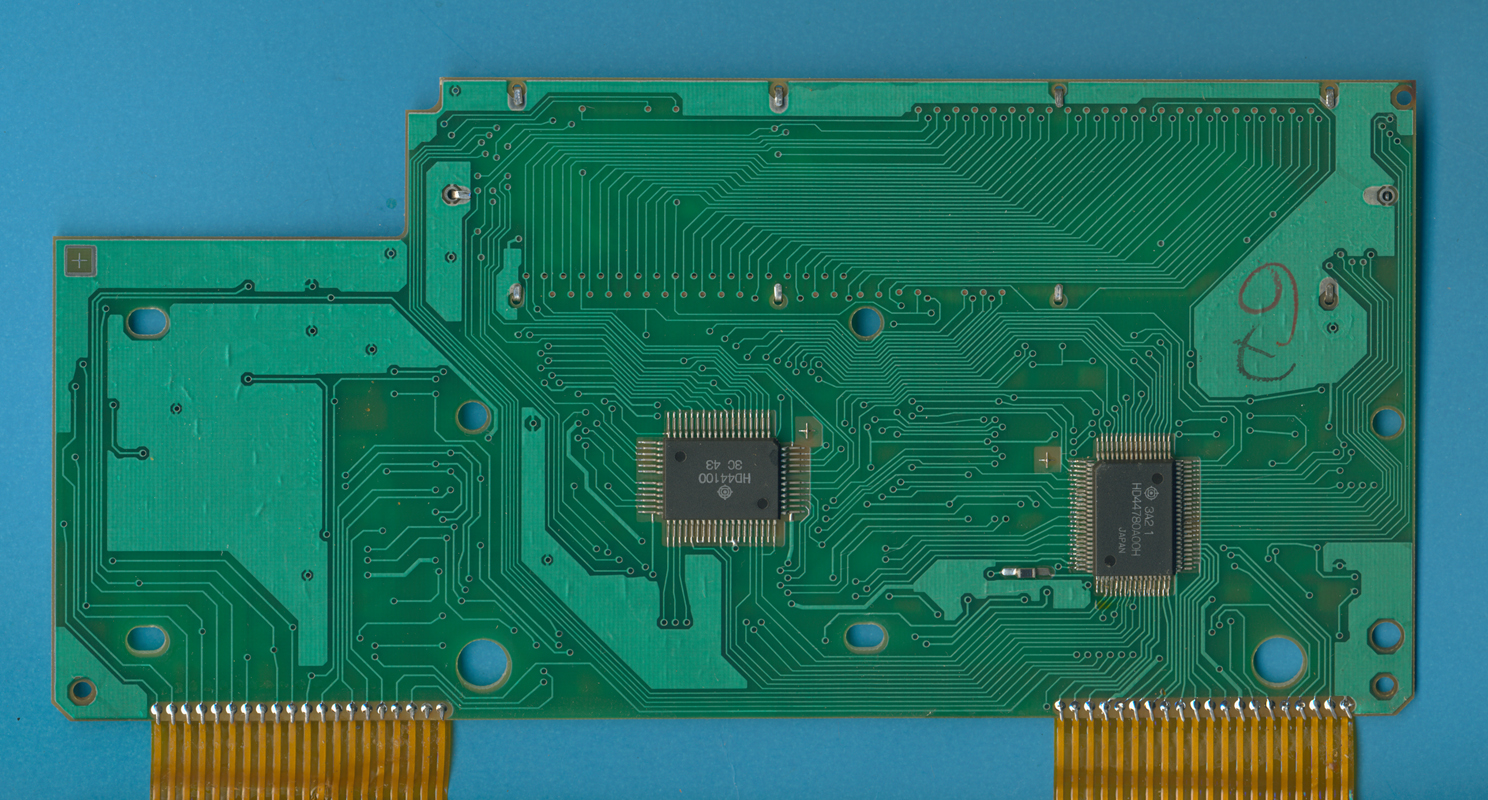

 The rear view of the second Printed Circuit Board of the CC-40 with the Controller and additional Driver for the LC-Display.

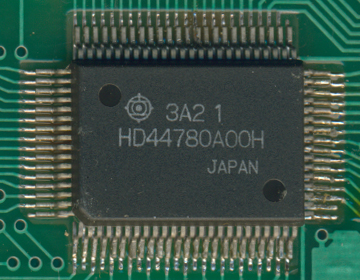

 The Hitachi HD44780 LCD Controller.

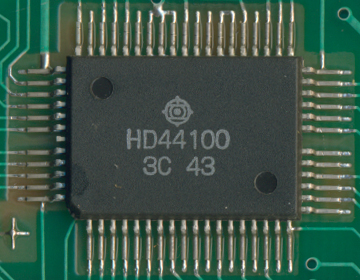

 The Hitachi HD44100 LCD Driver.
