Additional Pictures



This Compact Computer 40 Plus (DVT) was manufactured in April 1984 by Texas Instruments in Abilene, TX (Date code X 1584 wk 15 yr 1984.

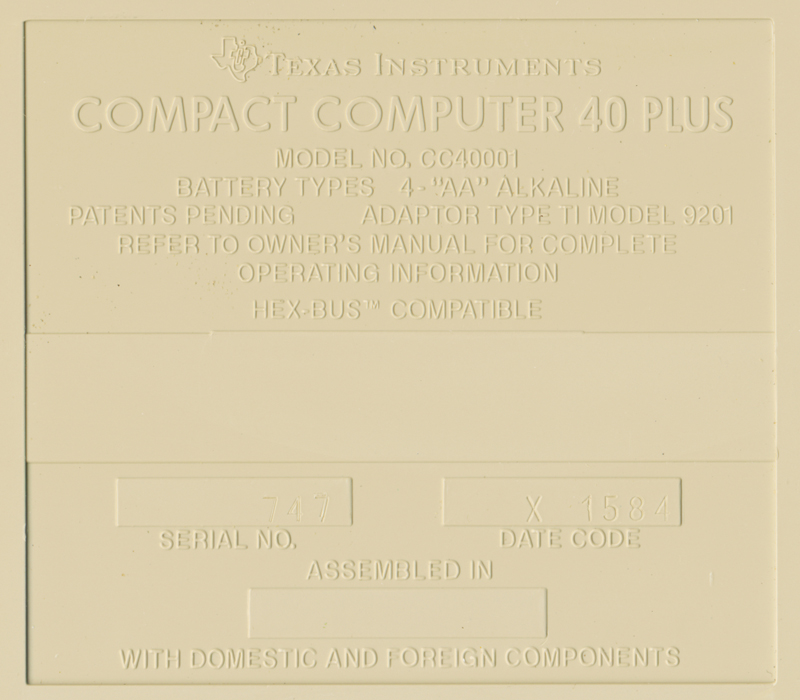

Close-up view of the product information of the Compact Computer 40 Plus (DVT).

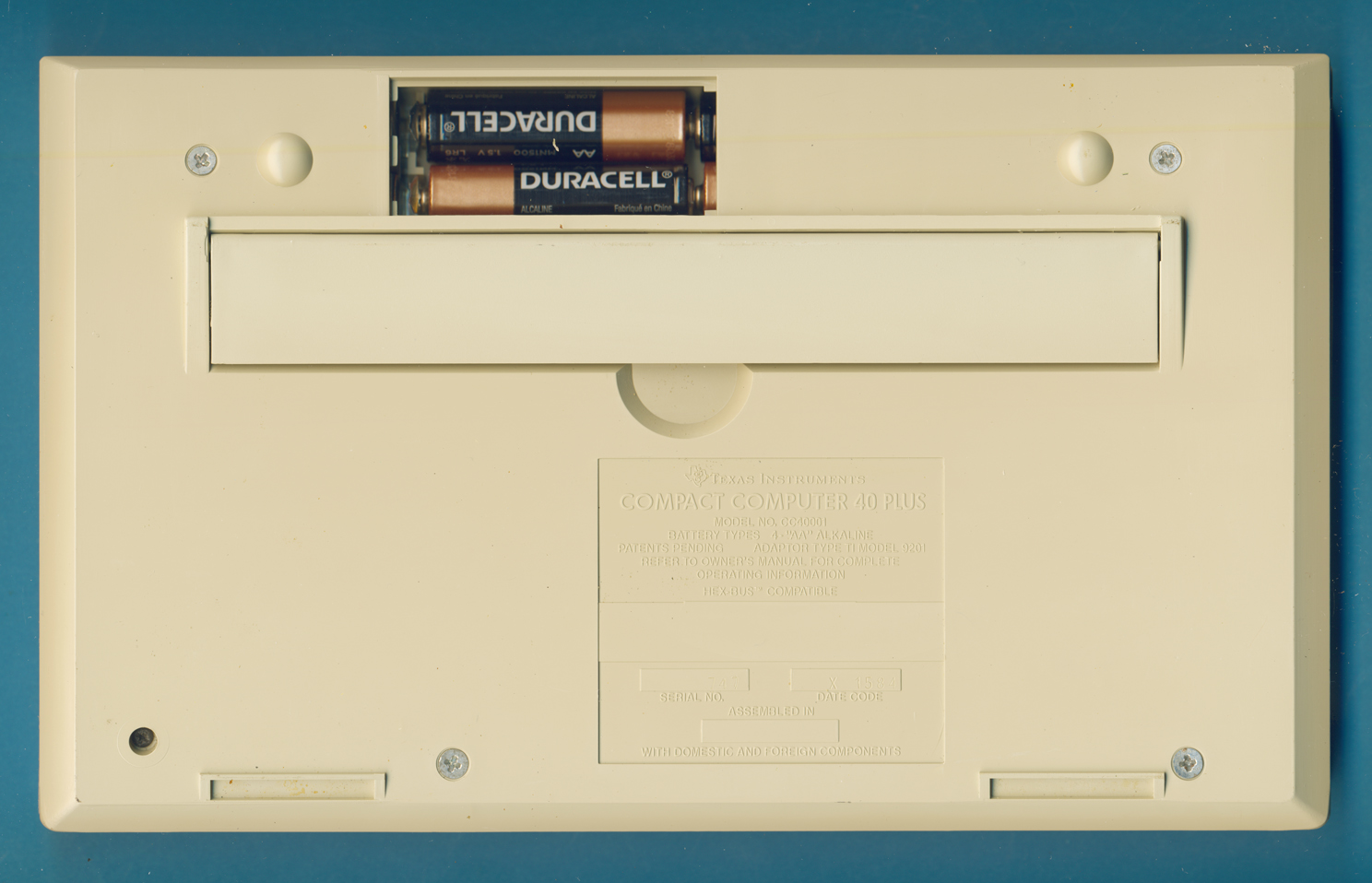

The Compact Computer 40 Plus is powered by 4 AA-sized batteries.

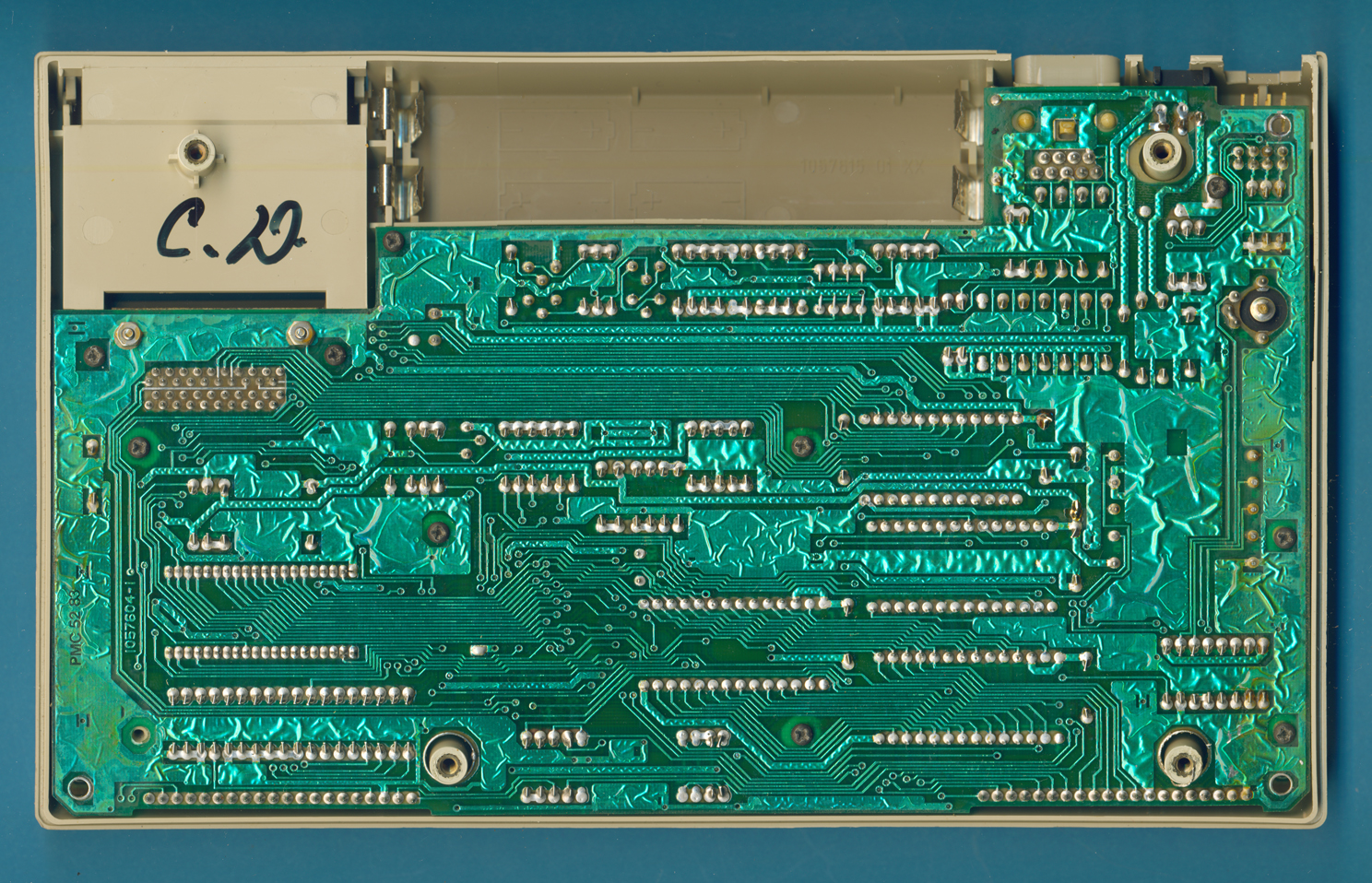

The internal construction of the CC-40 Plua was changed completely compared to the original CC-40.

The Main printed circuit board (PCB) of the Compact Computer 40 Plus showing the additional connector for the tape recorder.

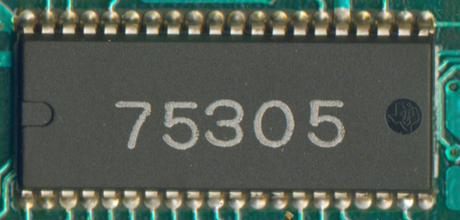

Close-up view of the TMC70C40/75305 8-bit microcontroller of the CC-40 Plus.

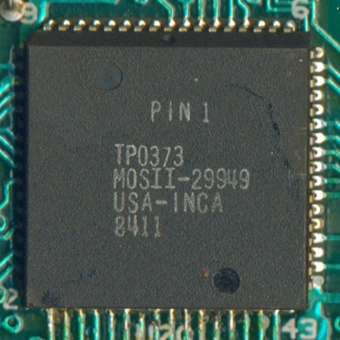

Close-up view of the TP0373 ASIC.

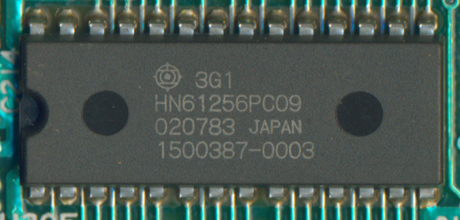

Close-up view of the Hitachi HN61256 ROM with 32k Bytes capacity.

Close-up view of one of the three Hitachi HM6116 RAMs with 2k Bytes capacity, each.

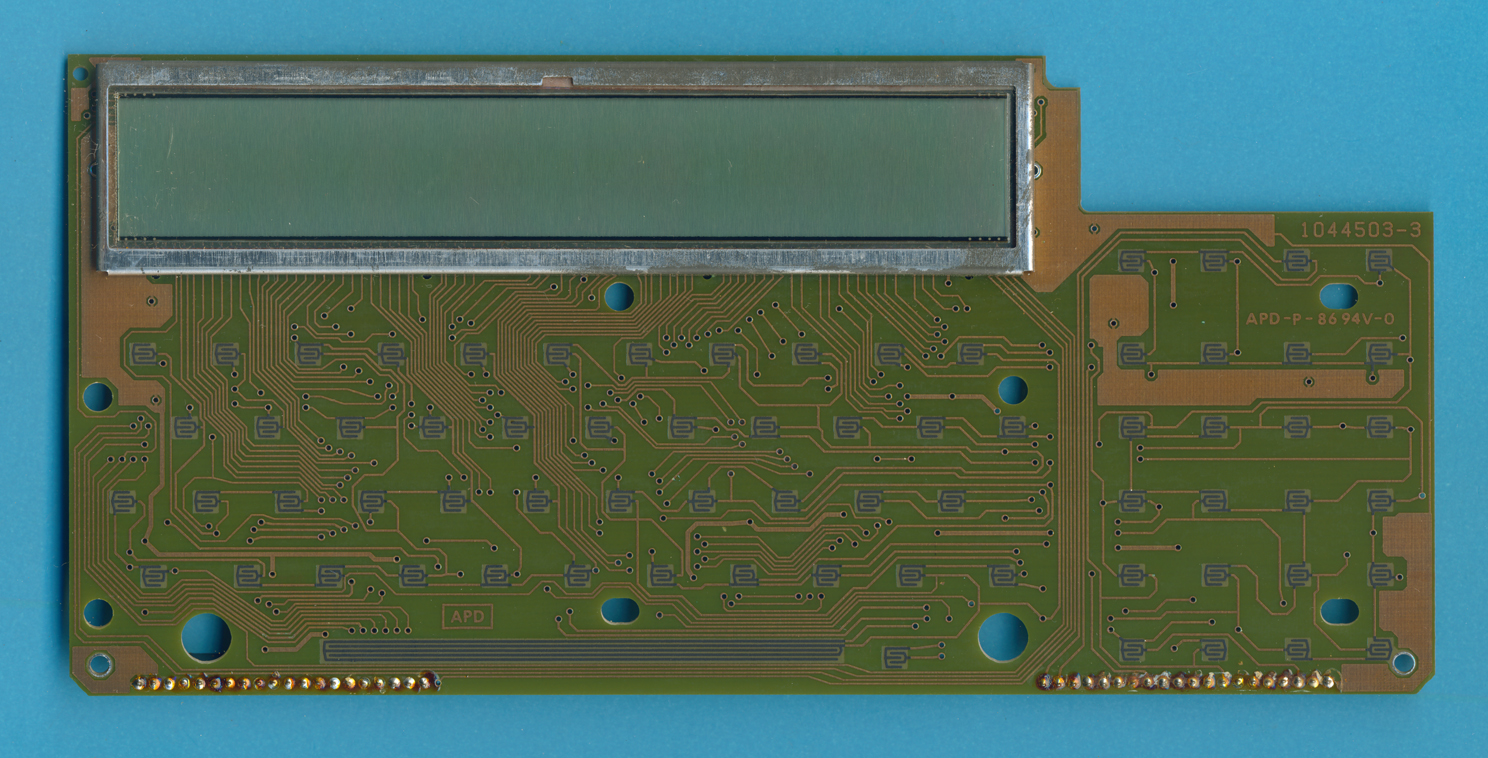

 The front view of the second Printed Circuit Board of the CC-40 Plus with the LC-Display and the keyboard contacts.

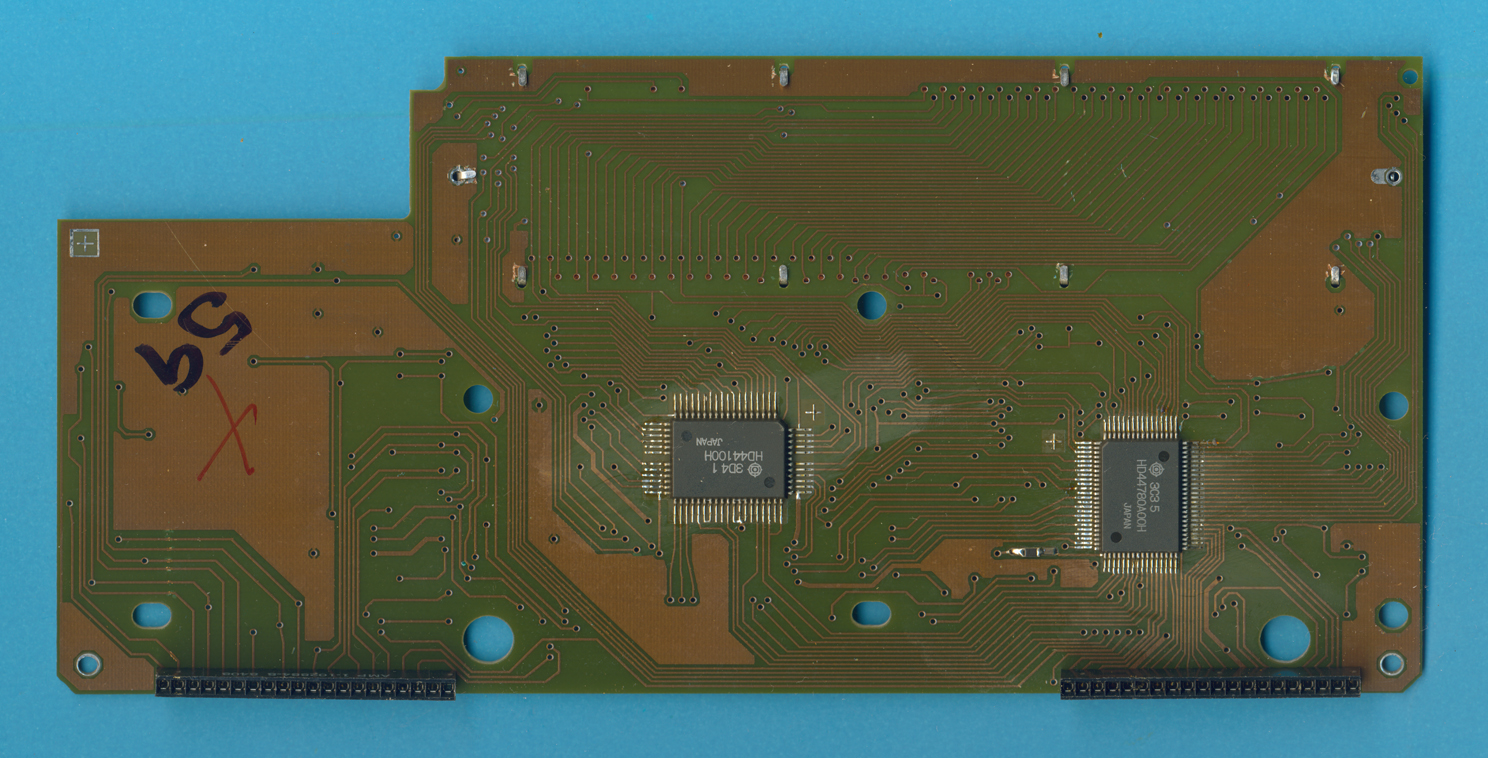

 The rear view of the second Printed Circuit Board of the CC-40 Plus with the Controller and additional Driver for the LC-Display.

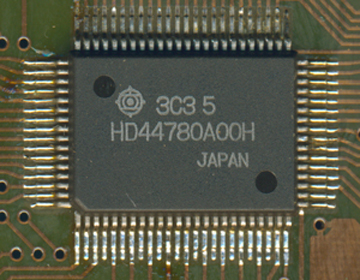

 Close-up view of the Hitachi HD44780 LCD Controller.

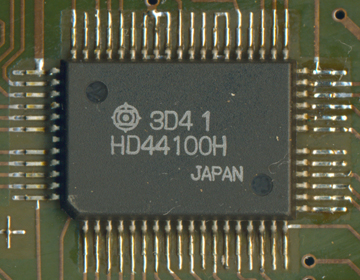

 Close-up view of the Hitachi HD44100 LCD Driver.
