Additional Pictures

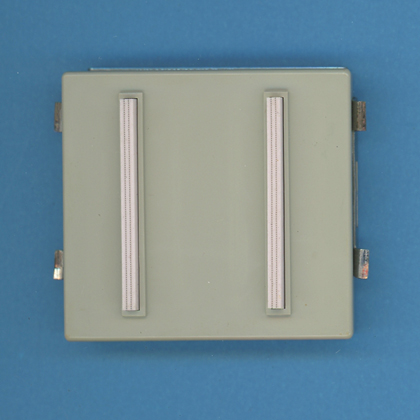

This PLOT DEMO SSSC Prototype for the CC-40 was manufactured in September 1982 by
Texas Instruments with software dating January 4, 1983.

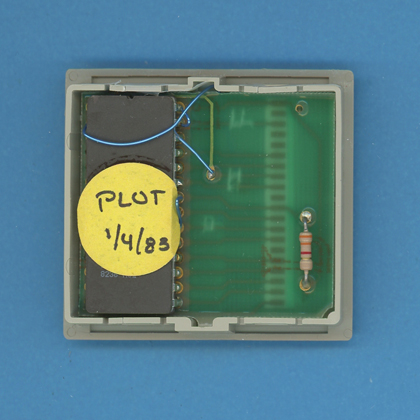

The printed circuit board (PCB) of the STATISTICS SSSC Prototype
with one 28-pin Dual-Inline Memory.
The PLOT DEMO SSSC Prototype uses one MBM27C64 Erasable Programmable Read Only Memory (EPROM)
with 8k Bytes capacity.
