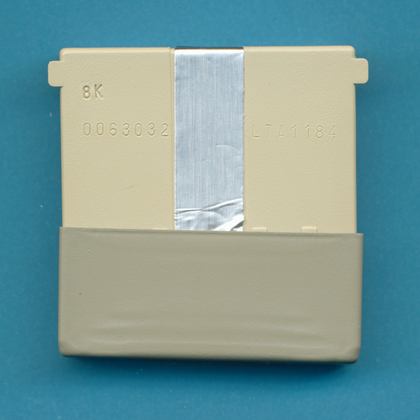

This UV-8K EPROM EXPANSION Cartridge for the CC-40 was manufactured in March 1984 by
Texas Instruments in Lubbock, TX (Date code LTA 1184 » wk 11 yr 1984).

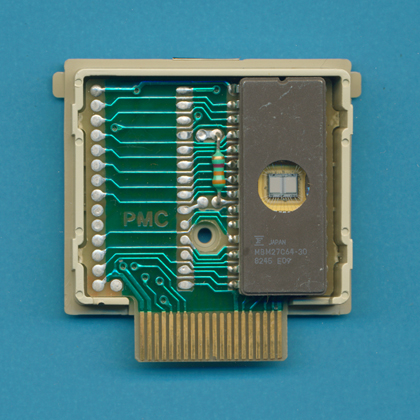

The printed circuit board (PCB) of the 8K EPROM EXPANSION
with one 28-pin Dual-Inline Memory and a CR2420 Lithium backup battery.
The upper plastic part of the 8K EPROM Cartridge with a small lid to access the
memory cells of the EPROM chip with strong UV light to reset them.

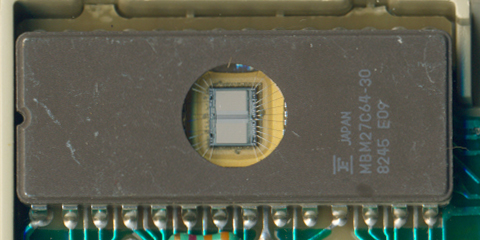

The 8K EPROM EXPANSION uses one MBM27C64 Memory (EPROM) with 8k Bytes.
