Additional Pictures



This HX-2000 Wafertape Digital Tape Drive Prototype for the CC-40 was manufactured in September 1983 by
Texas Instruments in Abilene, TX (Date code ATA 3683 » wk 36 yr 1983).

The Wafertape Cartridge.

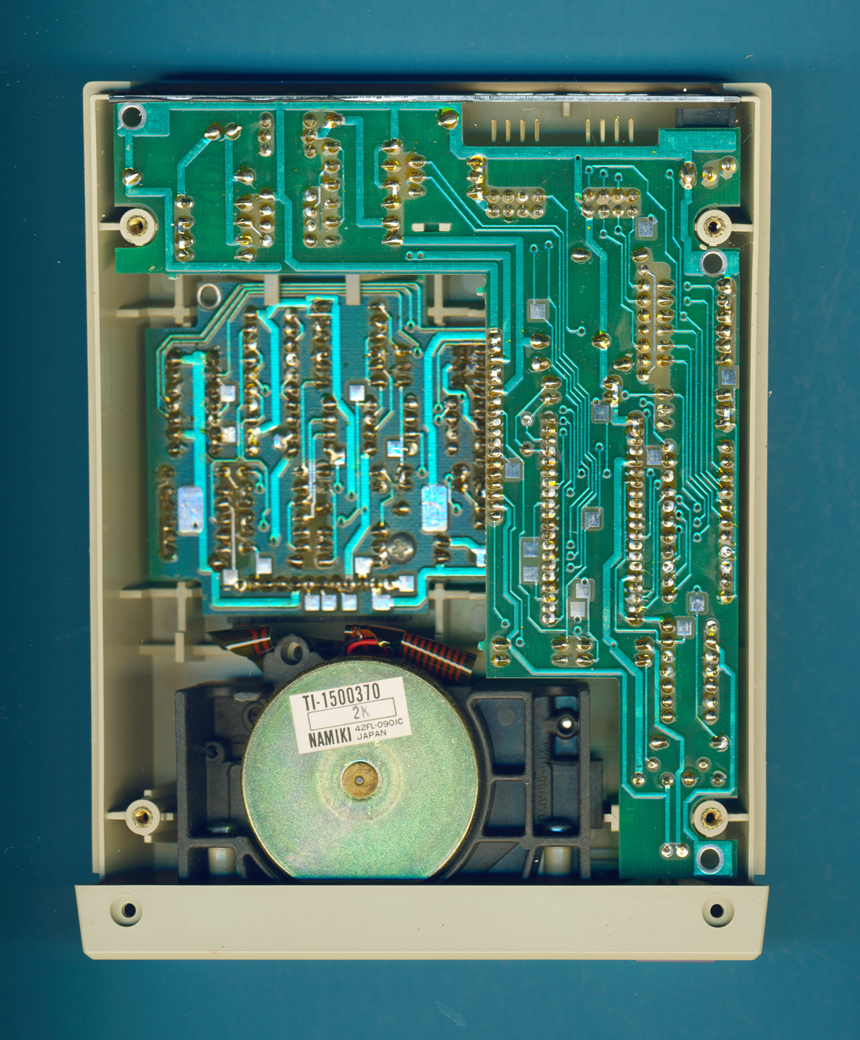

The bottom shell of the housing of the HX-2000 Wafertape Digital Tape Drive removed.

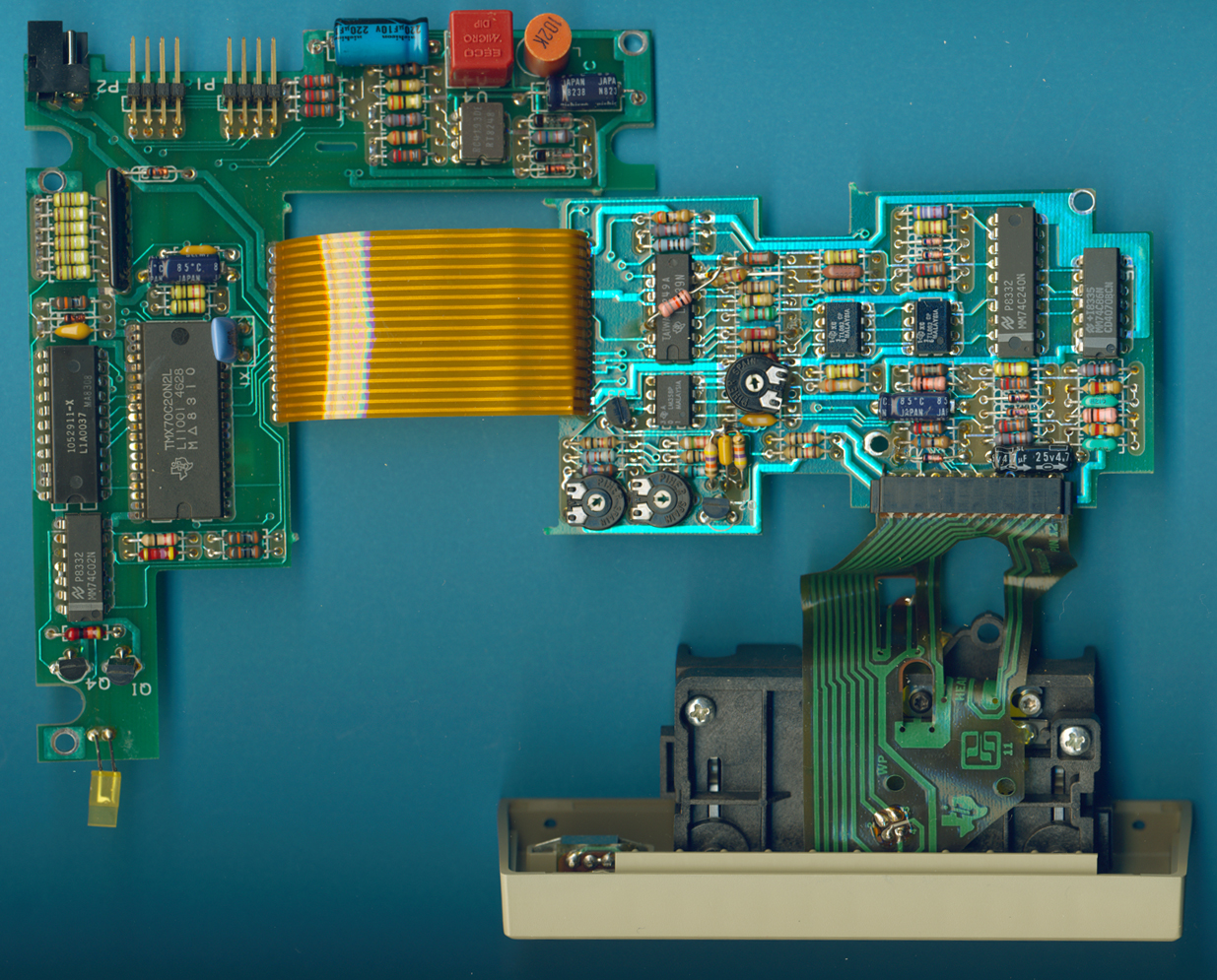

The two printed circuit boards (PCBs) of the HX-2000 Wafertape Digital Tape Drive are connected with a flexible jumper cable.

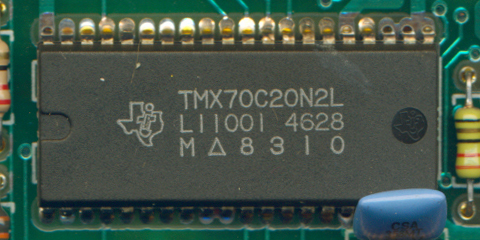

Close-up view of the TMX70C20.

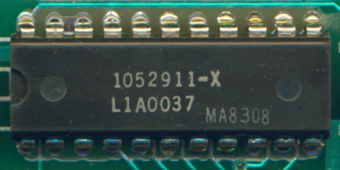

Close-up view of the IBC.
