Additional Pictures

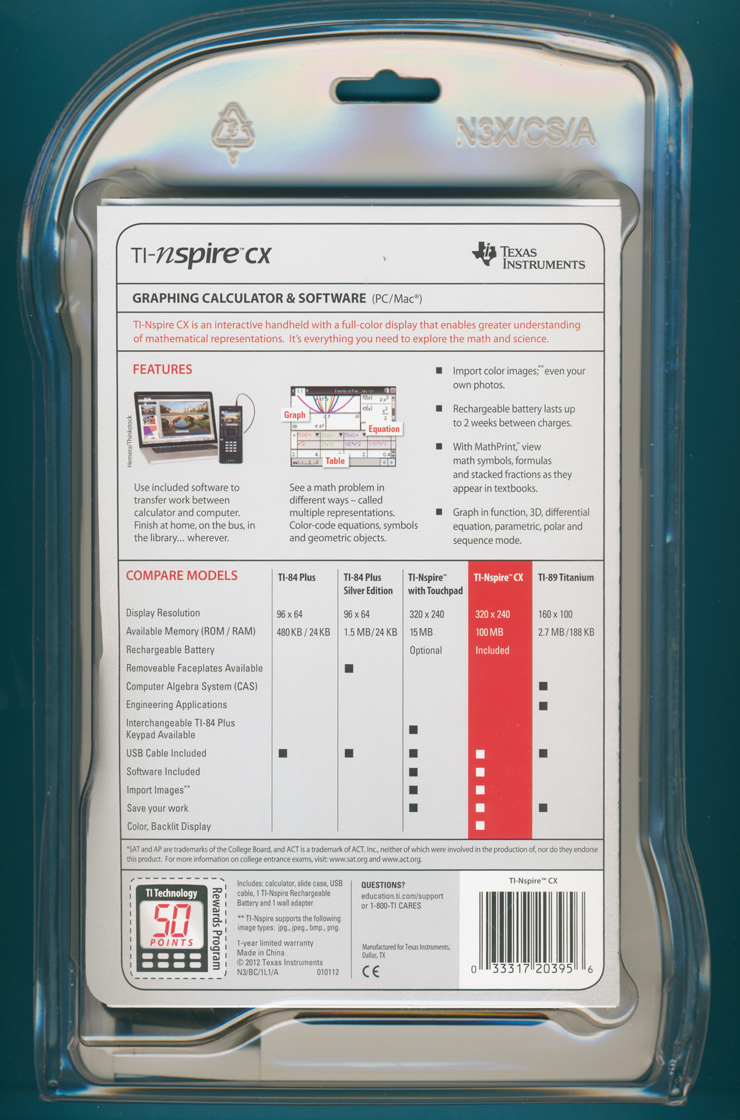

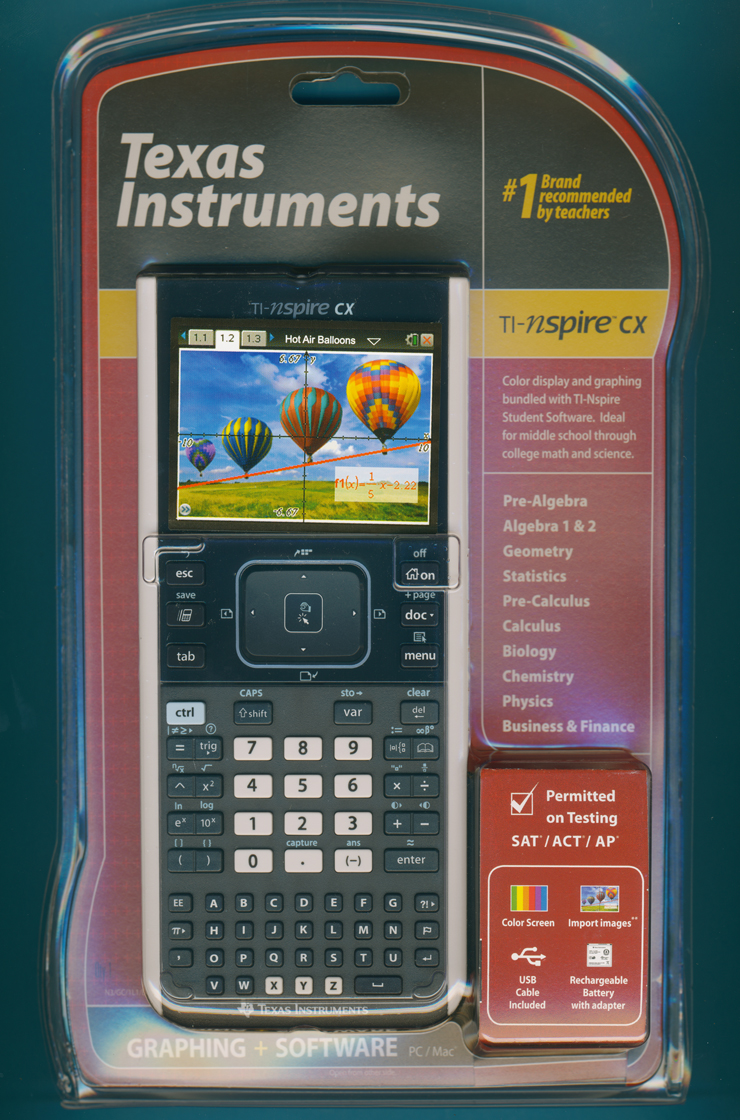

The
TI-Nspire CX calculator
sold in 2012 in its package. |
|
This TI-Nspire CX
was manufactured in August 2011 by Inventec Corporation in China (Date code P-0811C » mth 08 yr 2011).
|

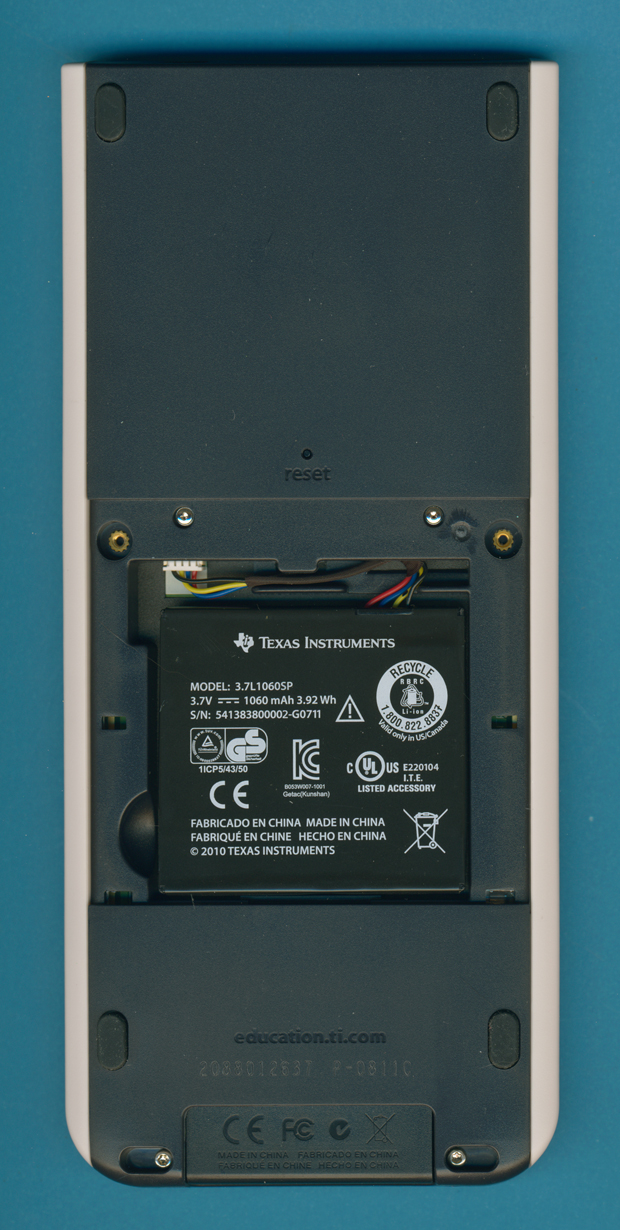

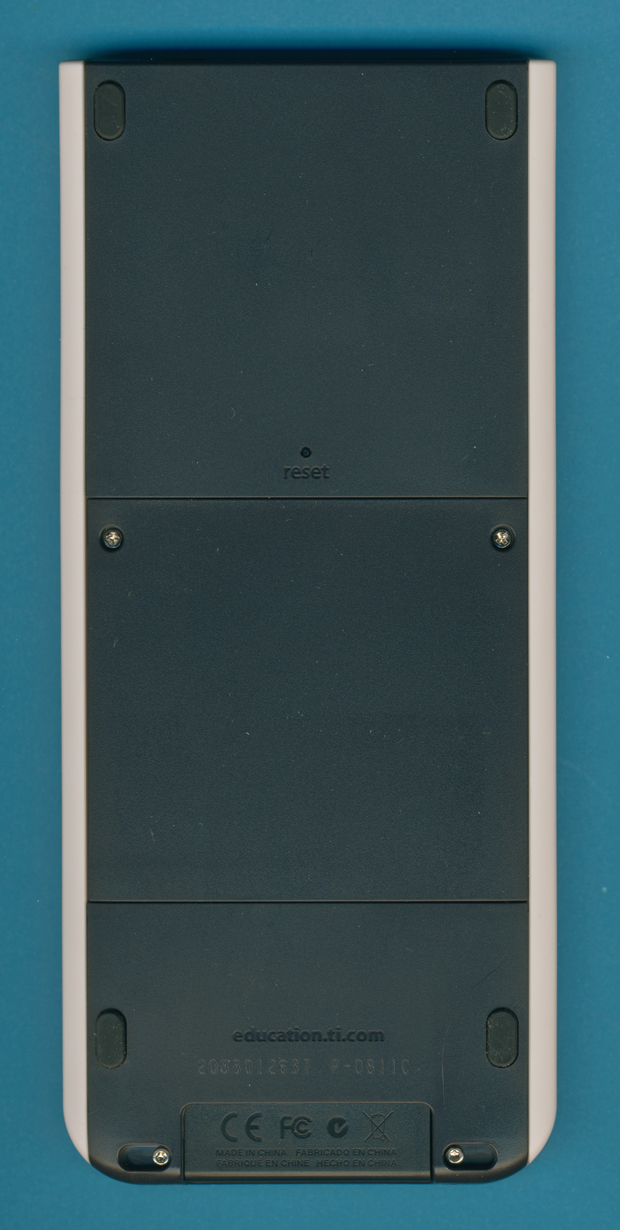

The backside
of the TI-Nspire CX features a cover to access the rechargeable battery.
|

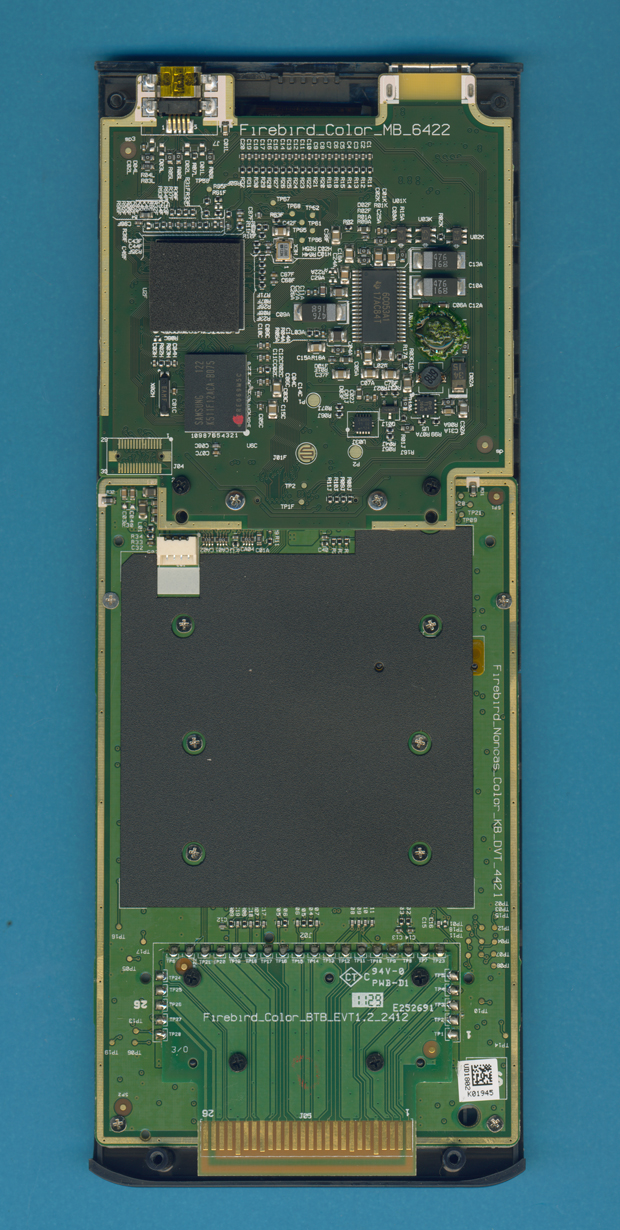

The internal
construction of the TI-Nspire CX makes use of just two printed circuit boards
(PCBs), one for the computing unit, color LC-Display and power supply and one for the keyboard. |
|

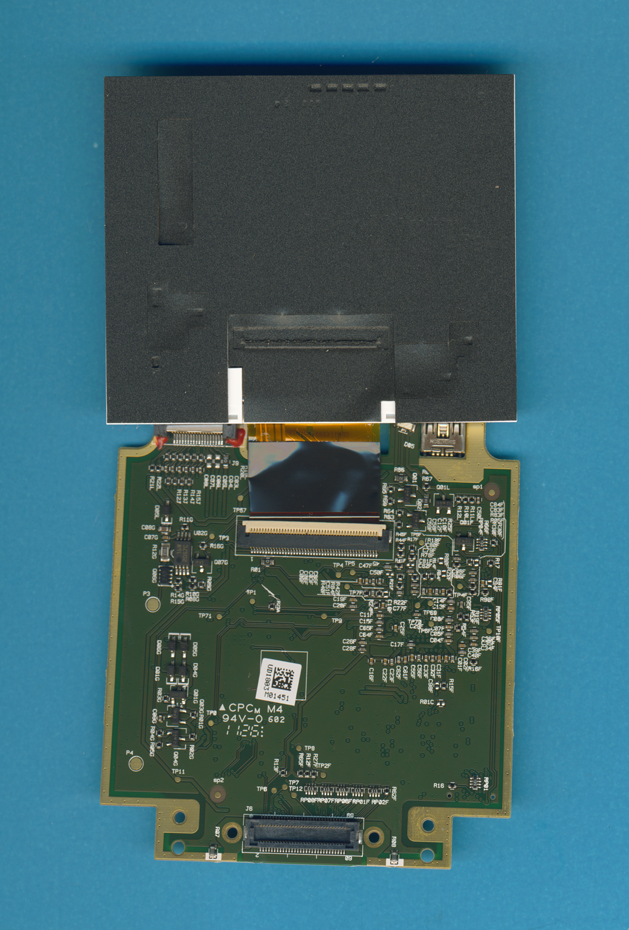

The main PCB
is connected to the color LC-Display. |
|

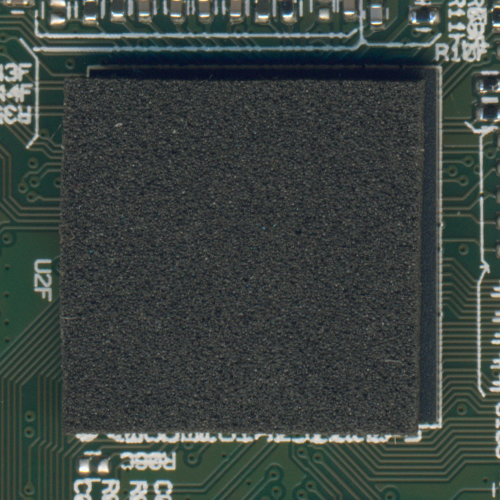

The brain of the
TI-Nspire CX is actually a System-on-Chip based on Toshiba's
ASIC technology hidden under some foam material. |
|

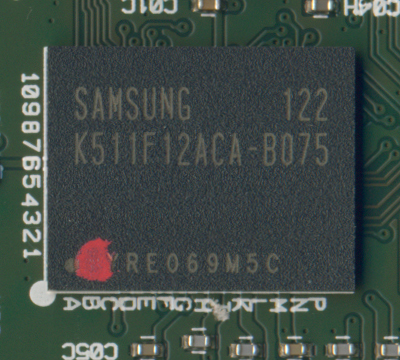

The
memory of the TI-Nspire CX EZ-Spot is composed of a Multichip Package with both the Flash-ROM and SDRAM combined. |
