Additional Pictures

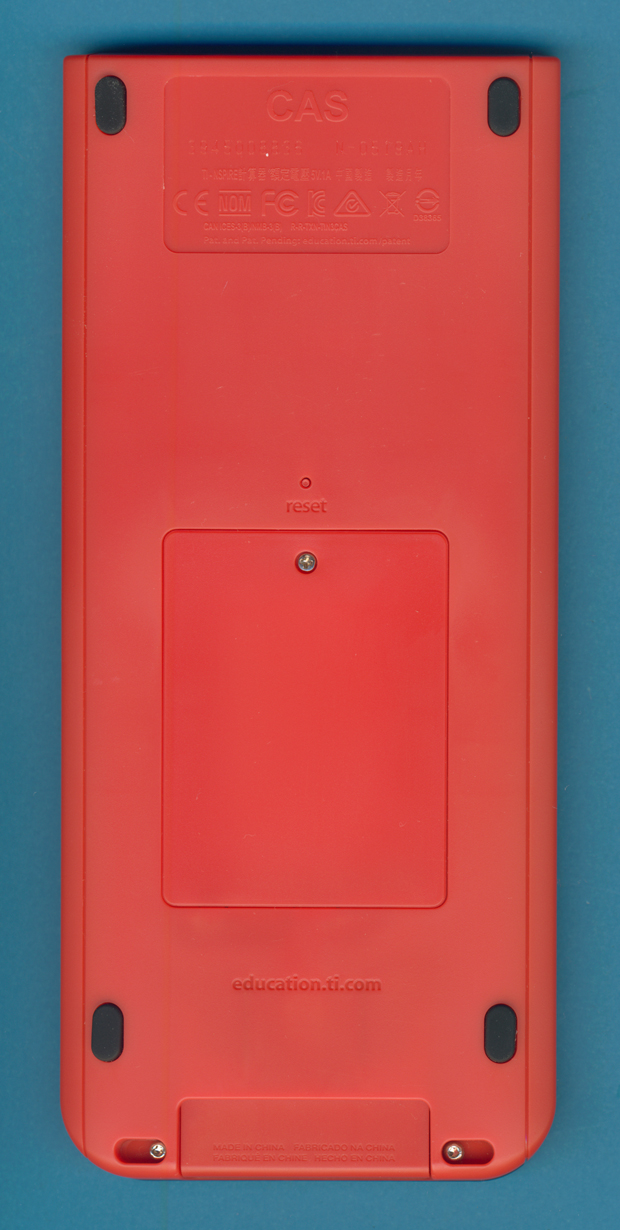

This TI-Nspire CX II-T CAS was manufactured in May 2019 by
an Inventec in Malaysia (Date code M-0519AH » mth 05 yr 2019).

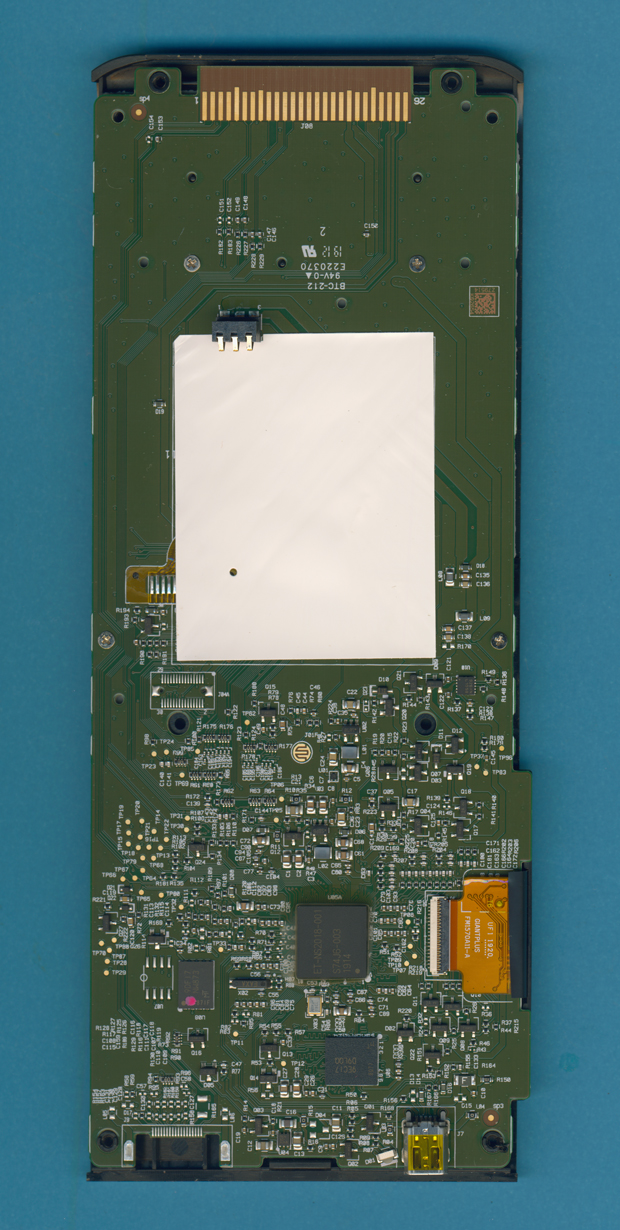

The internal construction of the TI-Nspire CX II-T CAS makes use of just two printed circuit boards (PCBs),
 one for the computing unit, keyboard, color LC-Display and power supply and one for the trackpad.

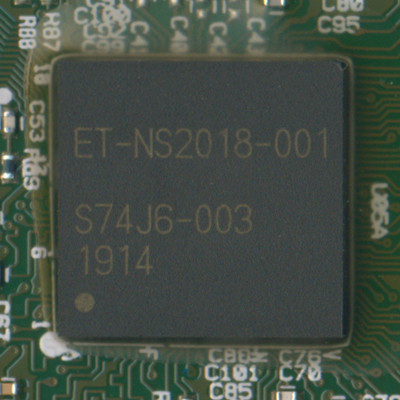

Close-up view of the ET-NS2018-001 ASIC.

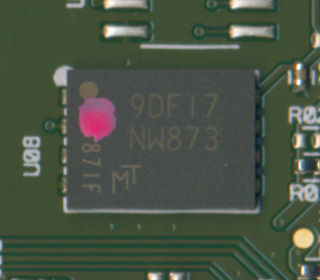

Close-up view of the MT29F1G01 Flash-ROM.

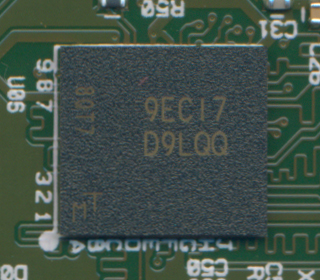

Close-up view of the MT46H32M SDRAM.




horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, April 4, 2021. No reprints without written permission.
