Additional Pictures



This TI-Nspire CX EZ-Spot was manufactured in June 2011 by
Inventec Corporation in China (Date code P-0611C mth 06 yr 2011).

The backside of the TI-Nspire CX EZ-Spot features a
cover to access the rechargeable battery.

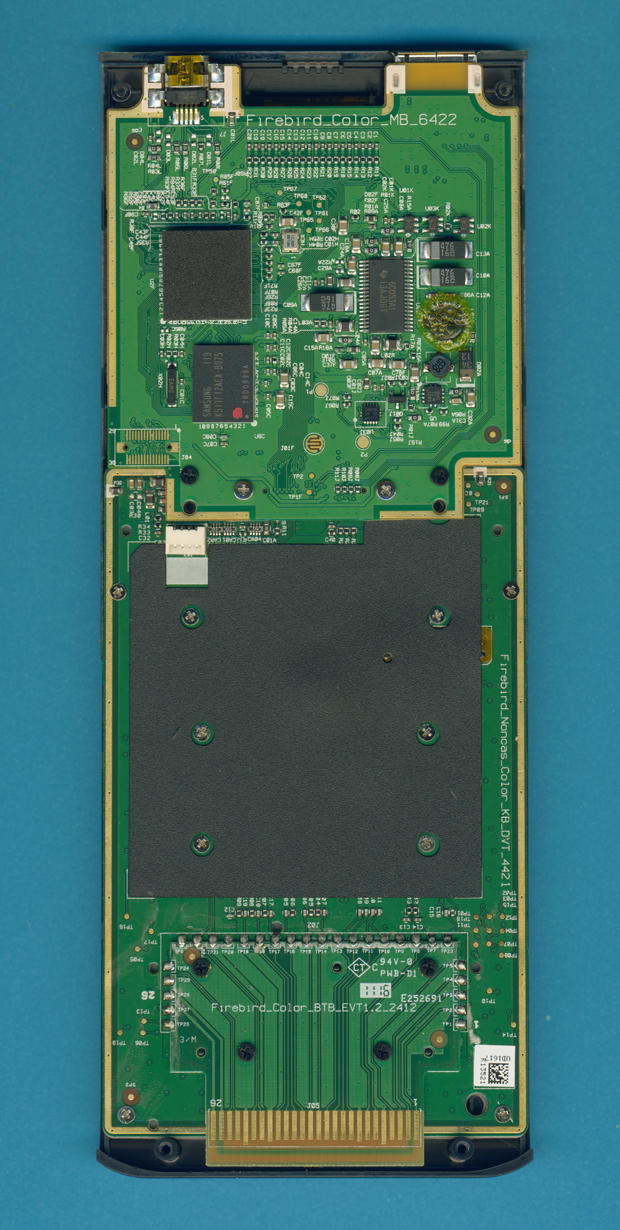

The internal construction of the TI-Nspire CX EZ-Spot makes use of just two printed circuit boards (PCBs),
 one for the computing unit, color LC-Display and power supply and one for the keyboard.

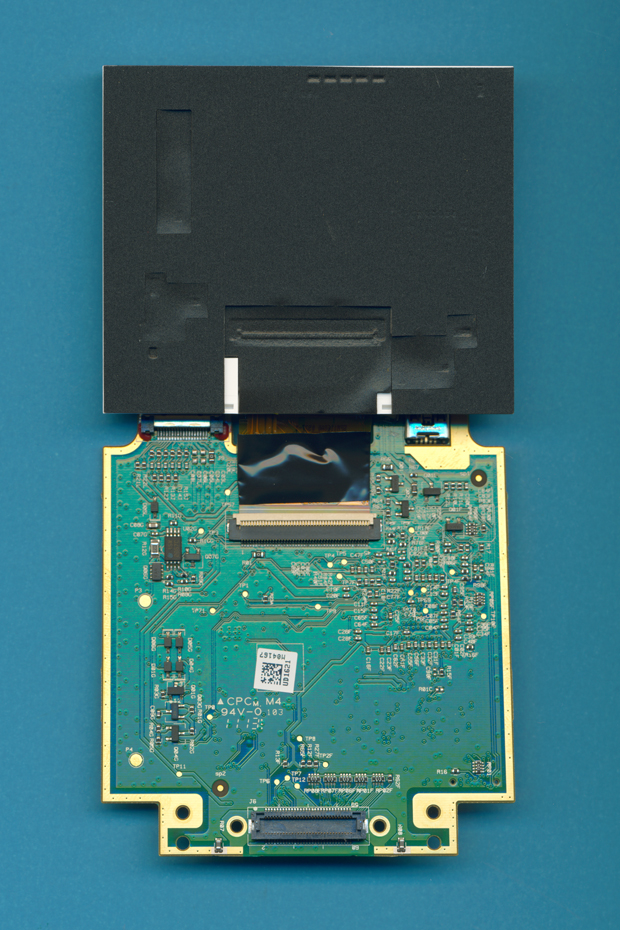

The main PCB is connected to the color LC-Display.

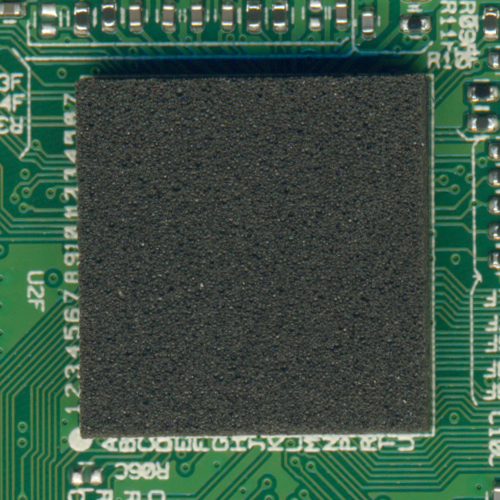

The brain of the TI-Nspire CX EZ-Spot is actually a System-on-Chip based on Toshiba's ASIC technology hidden under some foam material.

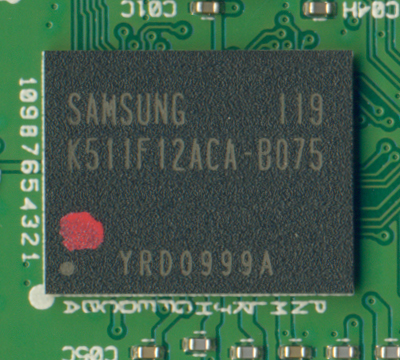

The memory of the TI-Nspire CX EZ-Spot is composed of a Multichip Package
with both the Flash-ROM and SDRAM combined.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, May 30, 2013. No reprints without written permission.
