Additional Pictures

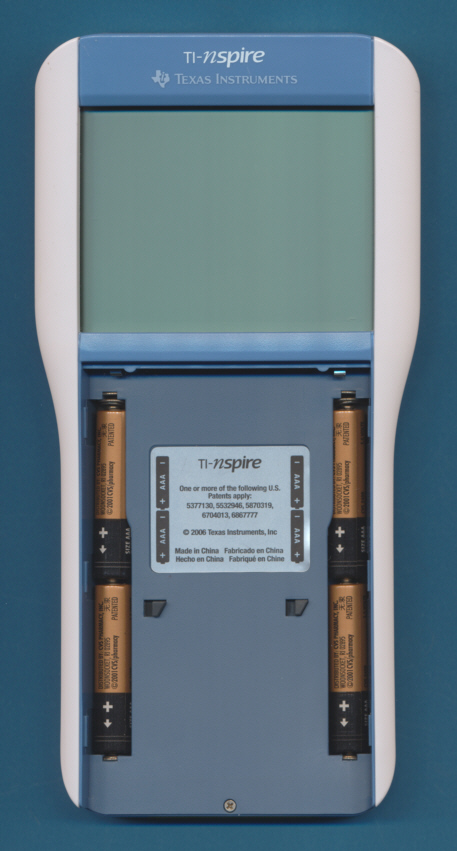

Changing the 4 AAA-sized batteries of the TI-Nspire
needs the keyboard to be removed.

The backside of the TI-Nspire EZ-Spot with the typical
"school bus yellow" color scheme.

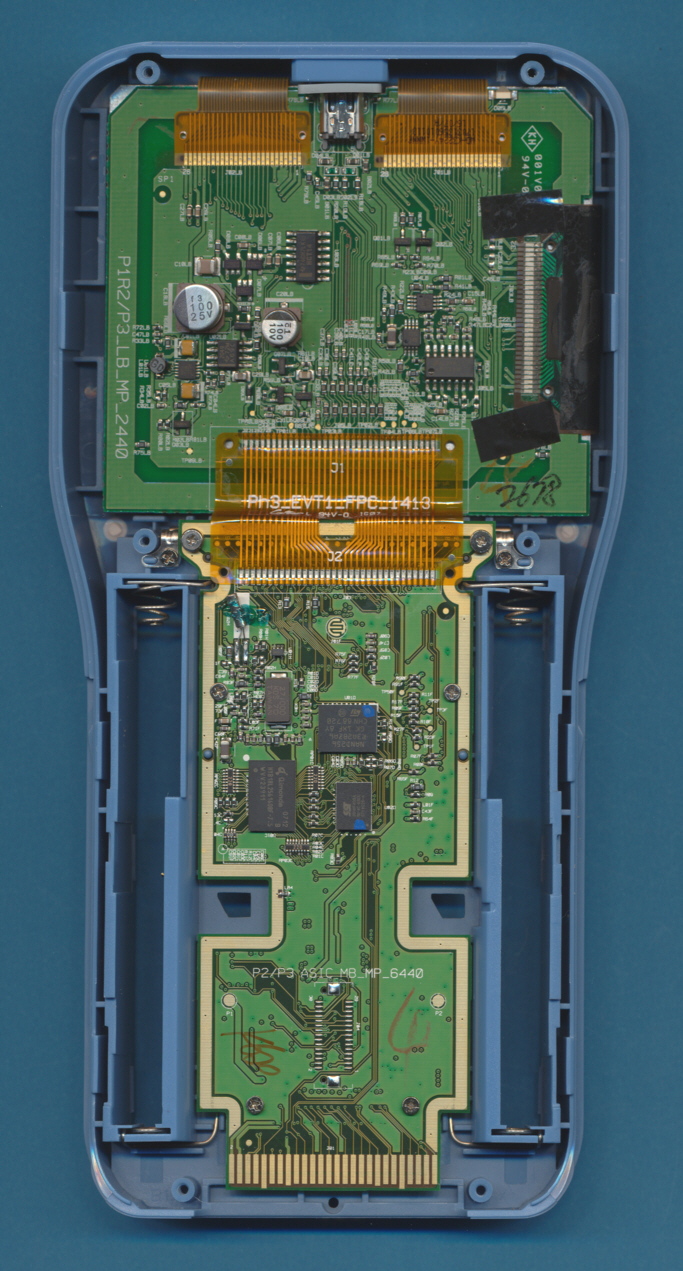

The internal construction of the TI-Nspire makes use of just 2 printed circuit boards (PCB's),
one for the gray-scale LC-Display and power supply and another one for the computing unit.

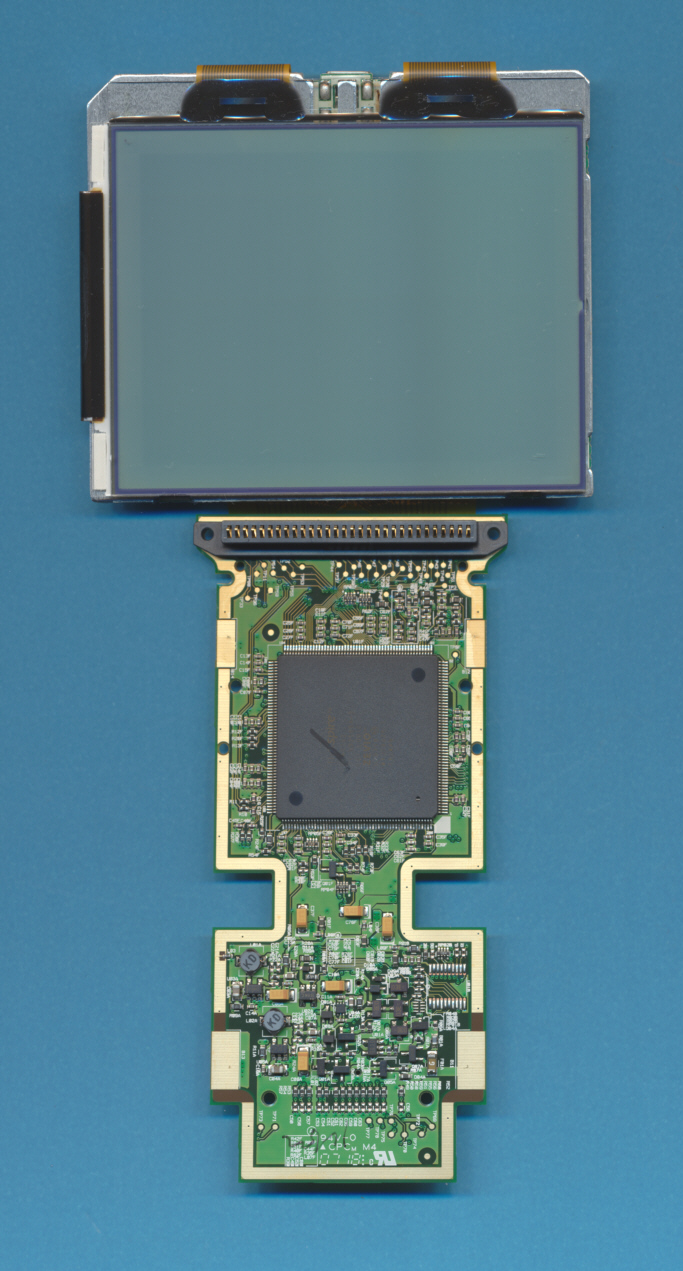

The frontside of the PCB's reveal the construction of the 240 * 320 pixel gray-scale
LC-Display and the ARM9 based 32-bit RISC processor.

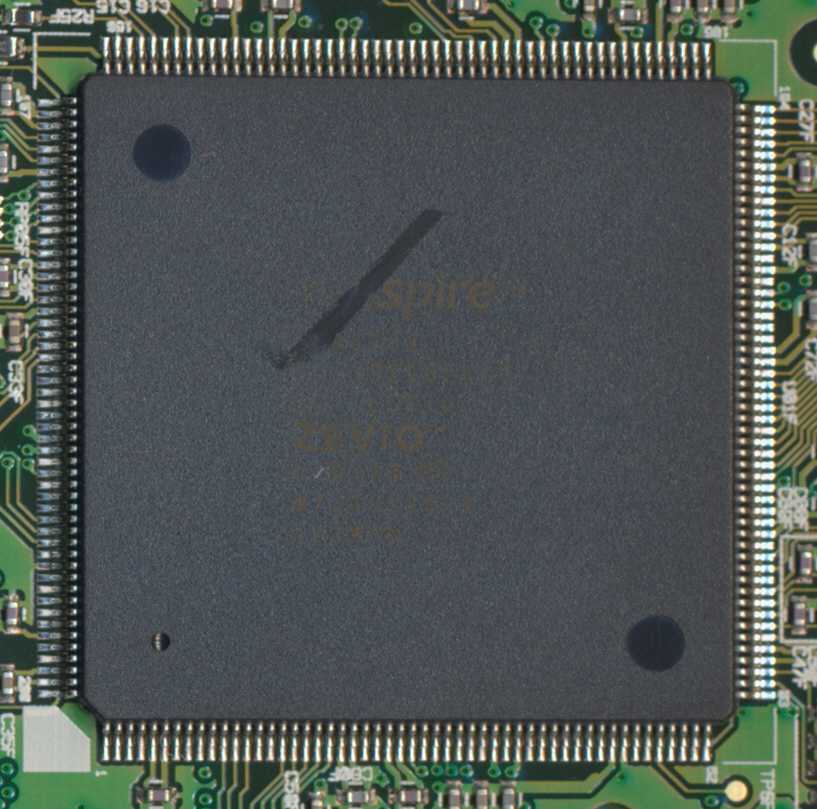

The brain of the TI-Nspire is actually a System-on-Chip based on the ZEVIO architecture from LSI Logic.
We assume that the 208 pin housing hosts a 90 MHz ARM9 32-bit RISC processor.

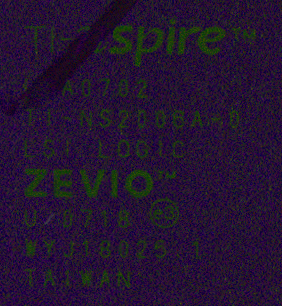

It took some image processing technologies to reveal the name plate of the chip.

The TI-Nspire uses three different memory chips, a 256k*16 NOR Flash-ROM, 32M Bytes NAND Flash-ROM,
and 16M*16 SDRAM. The clock frequency of the SoC is 27 MHz.
