Additional Pictures

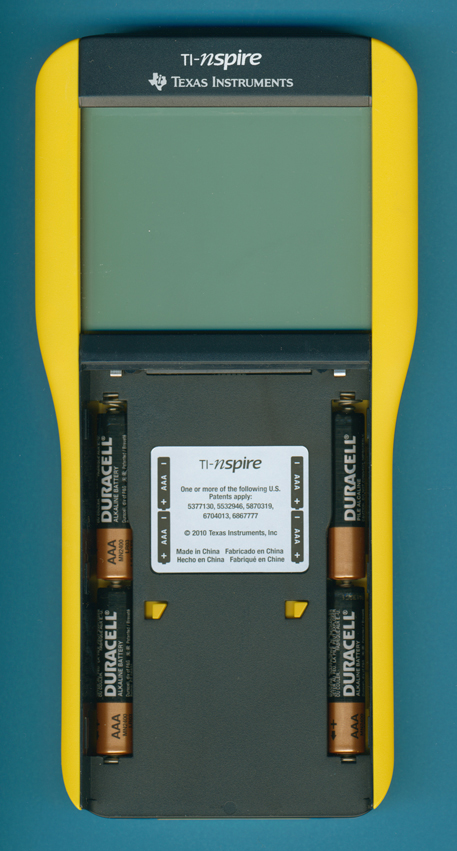

Changing the 4 AAA-sized batteries of the TI-Nspire EZ-Spot
with Touchpad needs the keyboard to be removed.

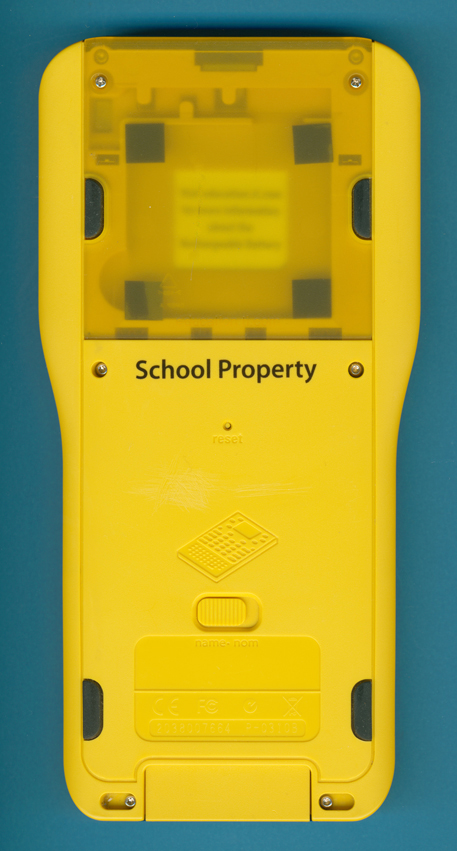

The backside of the TI-Nspire EZ-Spot with Touchpad features
 a cover to access the optional, rechargeable battery.

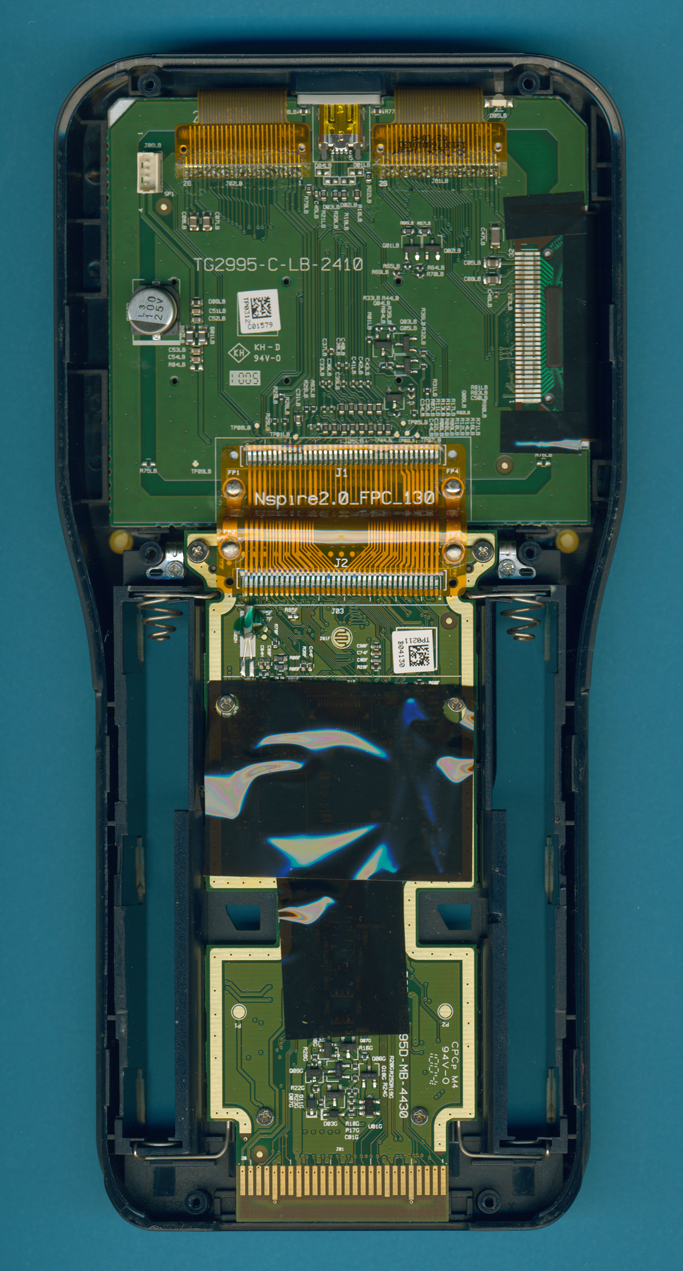

The internal construction of the TI-Nspire makes use of just 3 printed circuit boards (PCB's),
one for the gray-scale LC-Display and power supply, one for the computing unit and the keyboard.

The frontside of the PCB's reveal the construction of the 240 * 320 pixel gray-scale
LC-Display, and the ARM9 based 32-bit RISC processor.

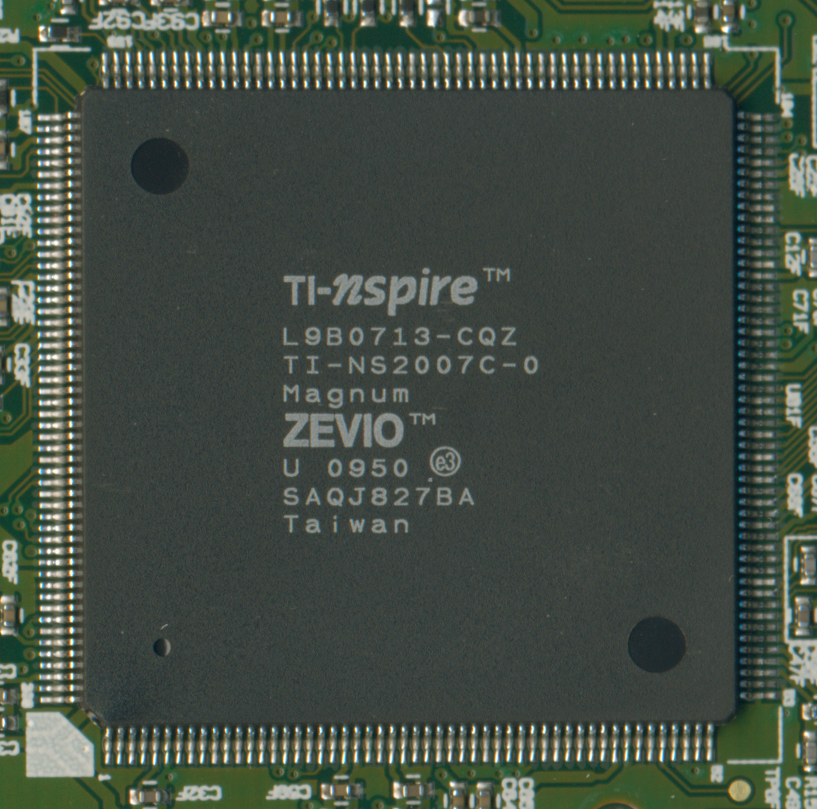

The brain of the TI-Nspire is actually a System-on-Chip based on the ZEVIO architecture from LSI Logic.
We assume that the 208 pin housing hosts a 90 MHz ARM9 32-bit RISC processor.

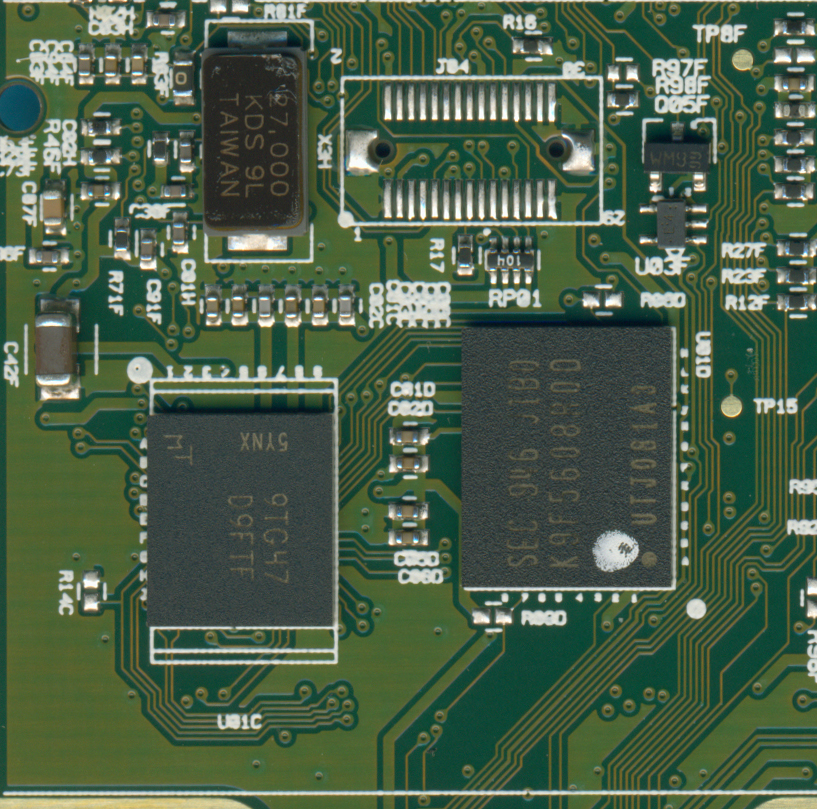

The TI-Nspire uses two different memory chips, a 32M Bytes NAND Flash-ROM,
and 16M*16 SDRAM. The clock frequency of the SoC is 27 MHz.

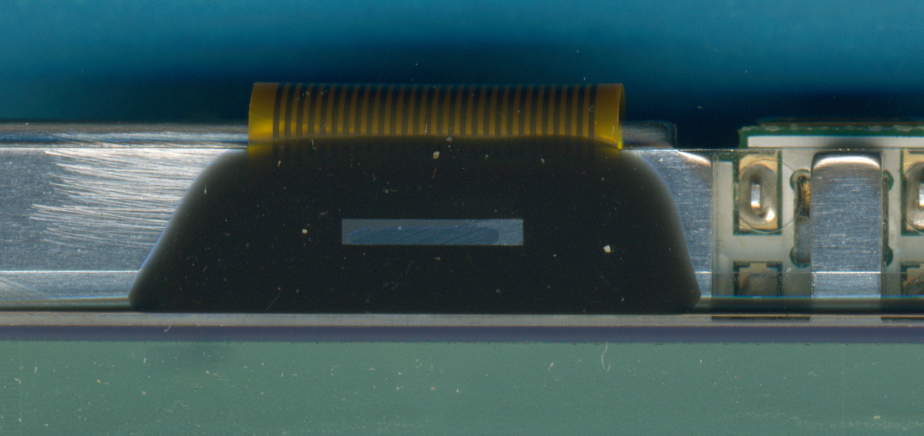

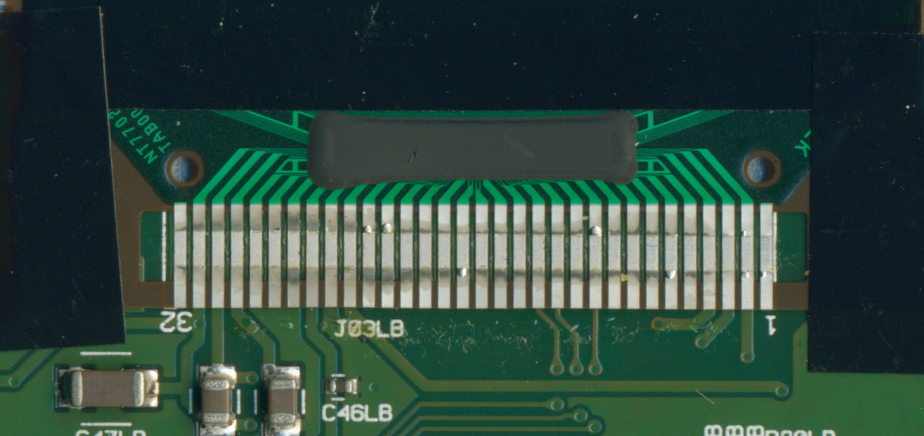

The TI-Nspire makes use of three highly integrated display drivers. One Novatek NT7702
for the 240 rows (top) and two unidentified chips (bottom) for 160 columns, each.
