Additional Pictures

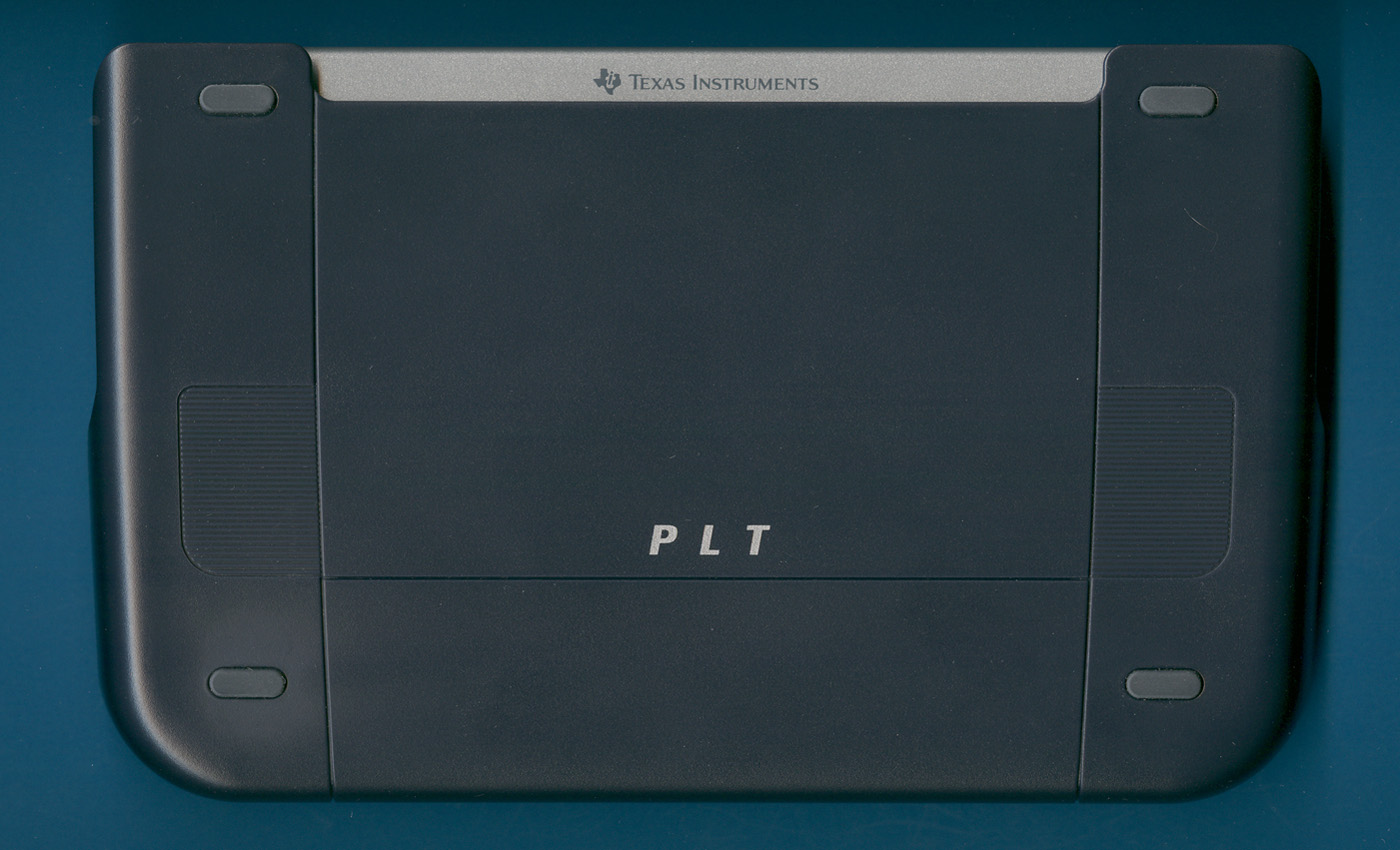

| The rare Texas
Instruments PLT (Personal Learning Tool) SU1 with its cover.
|

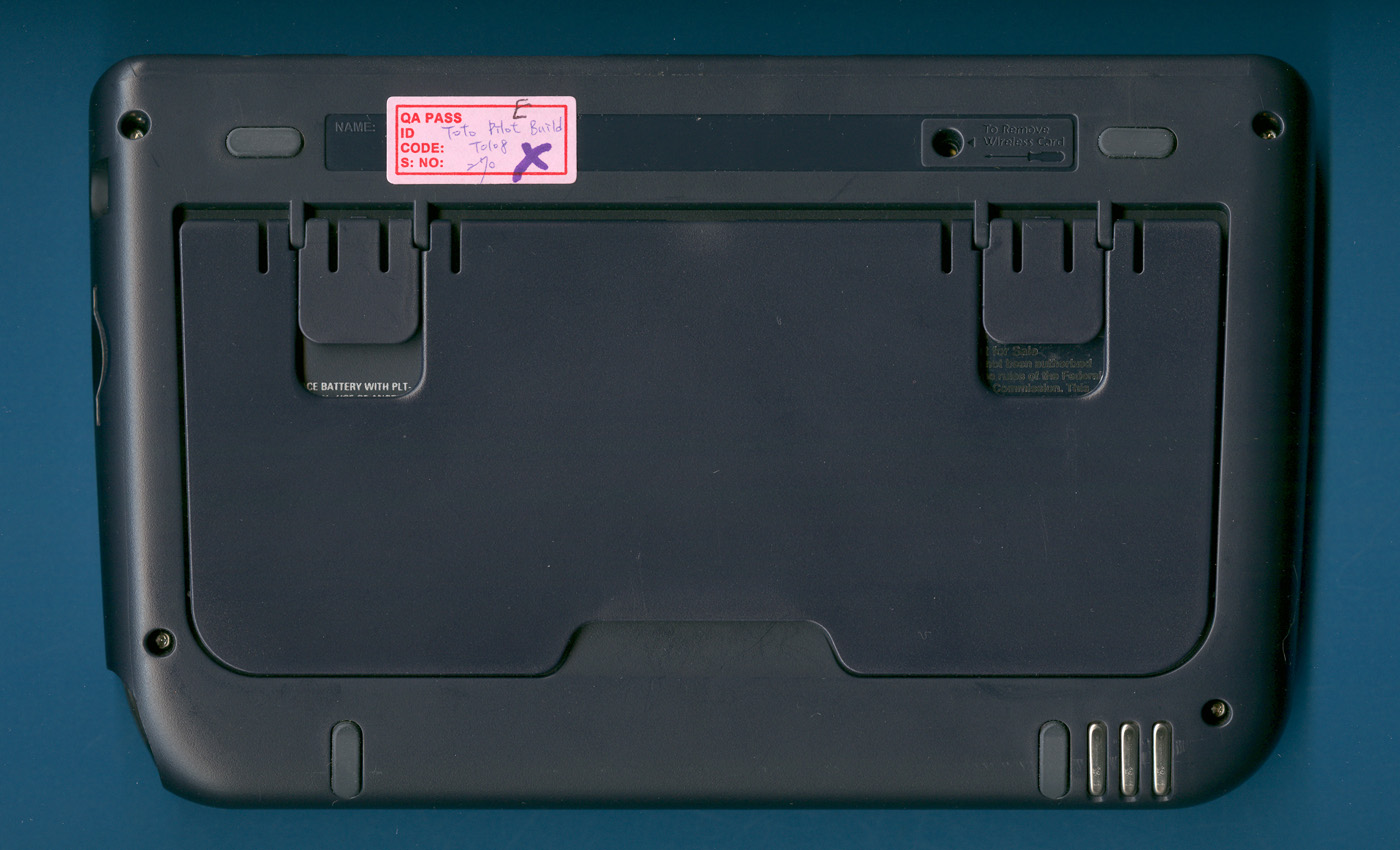

| The backside
of this rare PLT SU1 Engineering Sample teases with a nice, handwritten
label: Toto Pilot Build.
|
| Removing the stand
gives some important
information: Model No: PLT - SU1, © 2003, Made in Taiwan. Please notice the hidden slot for the memory card under the removed battery.
|

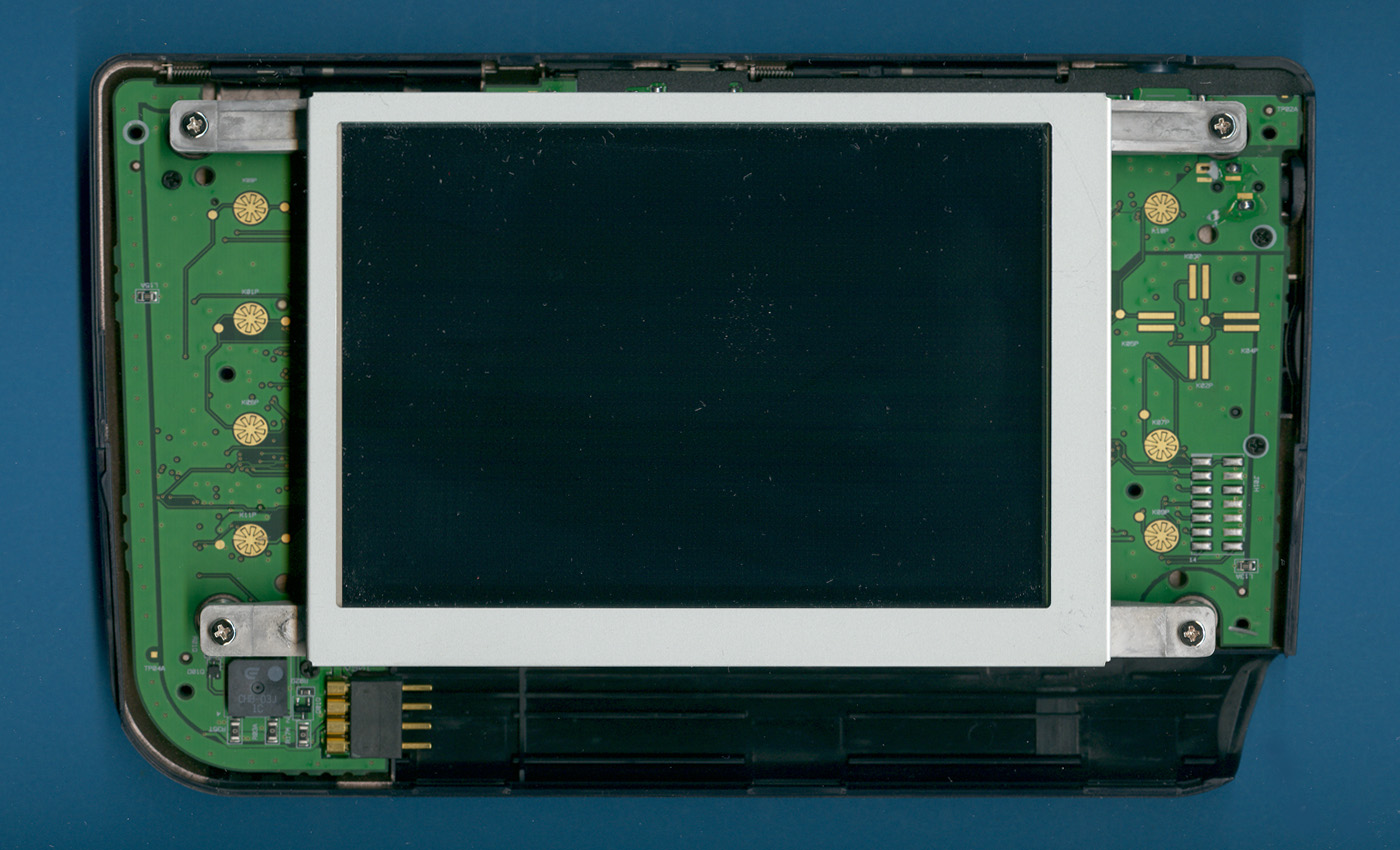

| The internal
construction of this unique Graphing calculator is dominated by the huge
LCD screen.
|

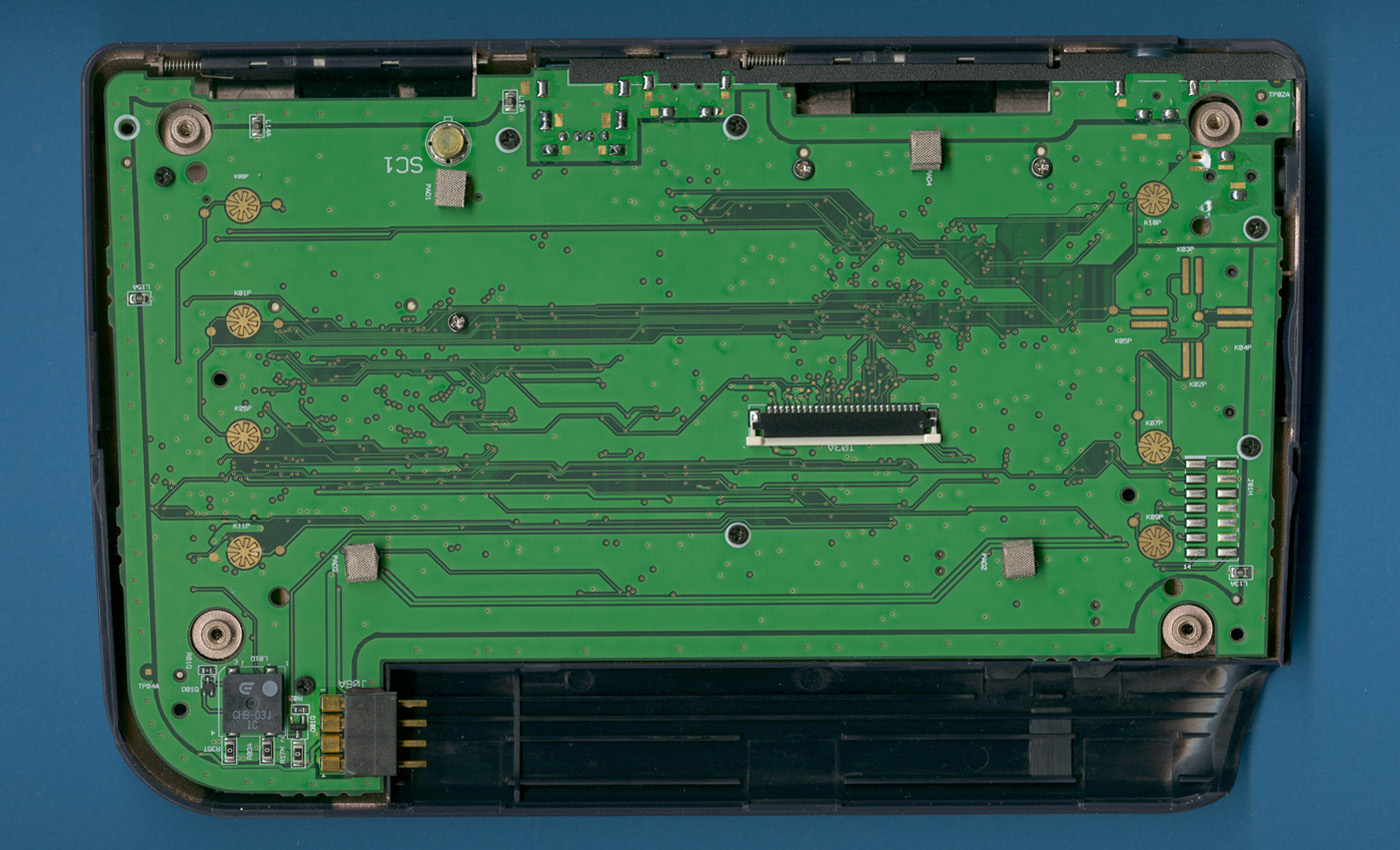

| Removing the huge LCD
screen gives access to the backside of the Main-
PCB (Printed Circuit Board).
|

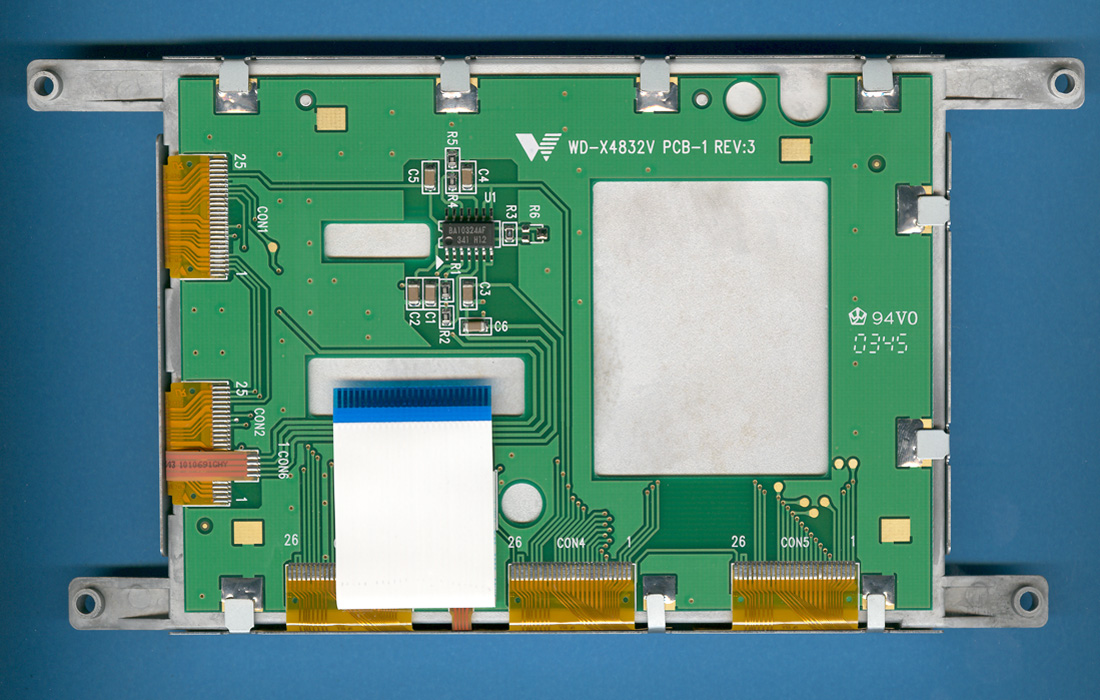

The display module
was manufactured by Winbond, Taiwan in October 2003. |
| The front-side of the Main-PCB (printed circuit board) with
four major Integrated Circuits: Texas Instruments OMAP5910: Dual-core processor Samsung K4M56163P: 8M * 16bits CMOS SDRAM Fujitsu 29LV400TC: 256k * 16bits CMOS FLASH-ROM Toshiba TC58DVM82A: 32M * 8bits CMOS NAND EEPROM
|

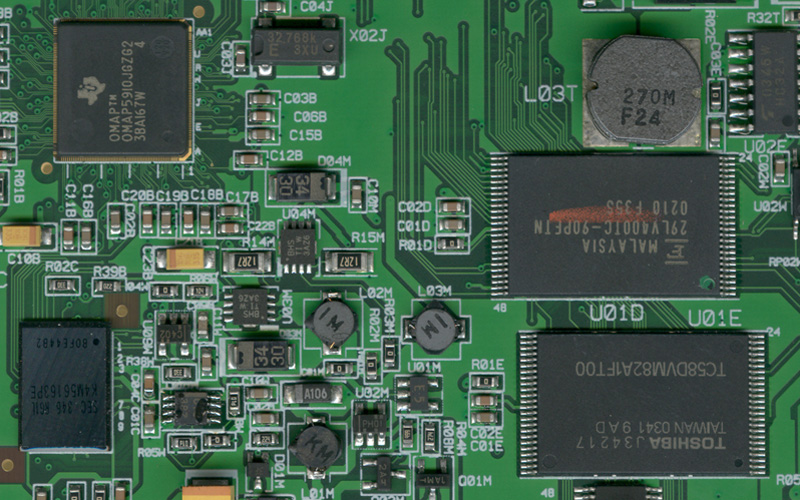

| ZOOM - Level
1: Major Integrated Circuits.
|

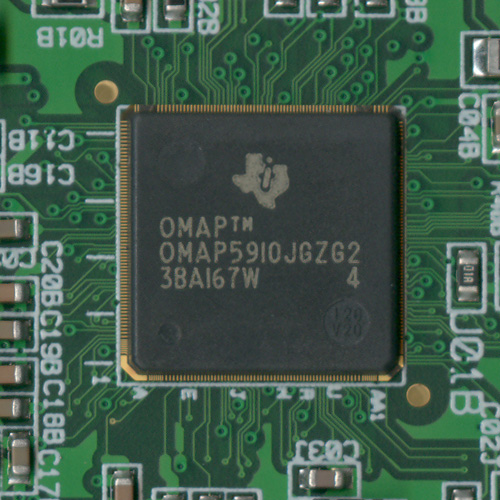

| ZOOM - Level
2: Texas Instruments OMAP5910.
|
If you have additions to the above article please email: joerg@datamath.org.
