Additional Pictures

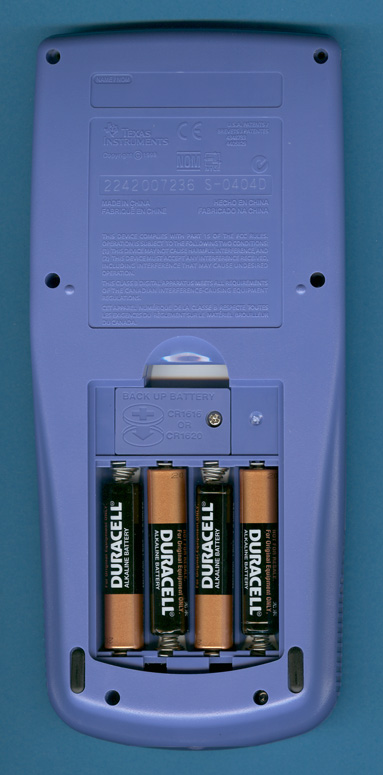

| This TI-73 Explorer with the date
code S-0303D was manufactured by Inventec in China in March 2003.
|
| The printed circuit boards
(PCBs) of a TI-73 Explorer manufactured in April 2004
looks very familiar to us. They are obviously borrowed from the TI-83 Plus (Hint: Silk screen at the bottom of the Main-PCB)
|
| The main components of
the TI-73 Explorer: Zilog Z84C0008 CPU, Fujitsu 29F400 Flash ROM and Hynix HY62WT081 RAM.
|
| The TI-83 Plus ASIC
TI REF9815455 in a standard flatpack housing.
|
| The display
driver Toshiba T6A04A of the TI-73 Explorer manufactured in April 2004.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, July 9, 2008. No reprints without written permission.
