Additional Pictures

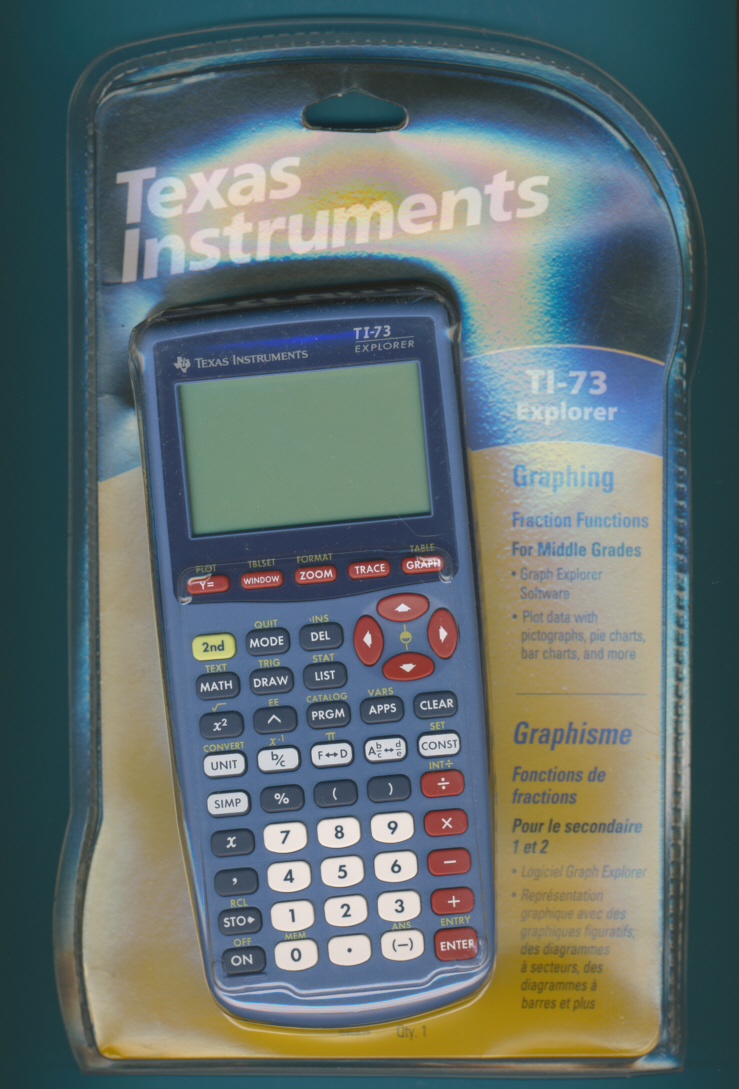

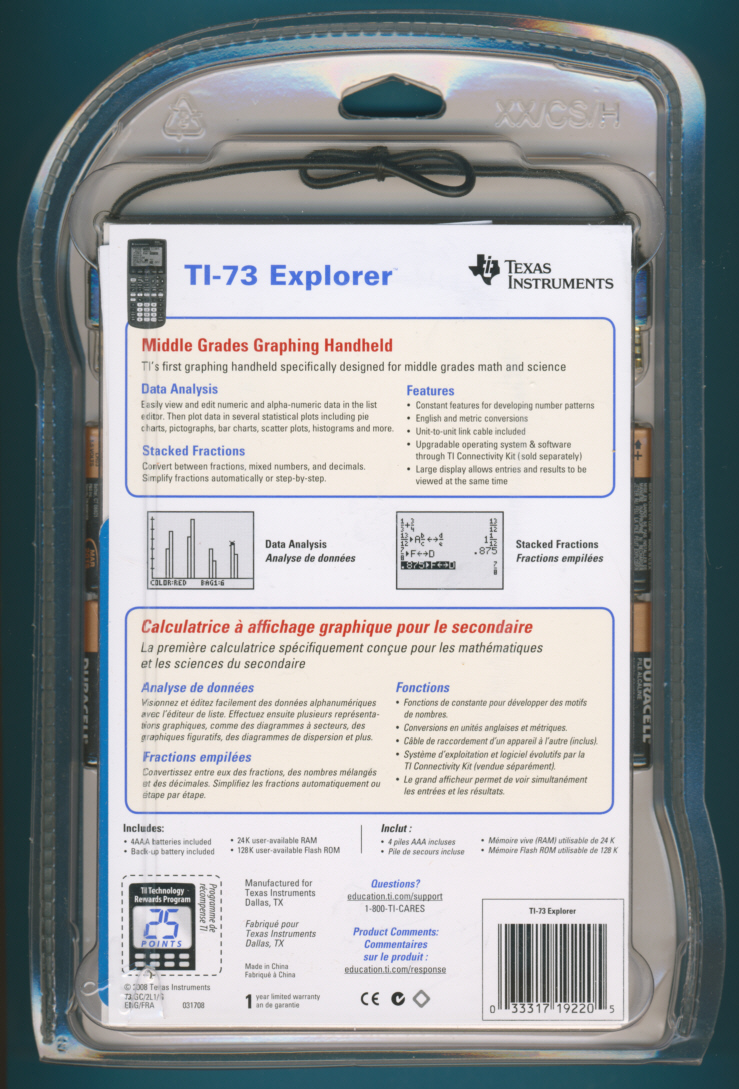

| The TI-73 Explorer calculator
sold in 2008 in its package. This calculator
was purchased in Canada and covers two languages: English and French.
|

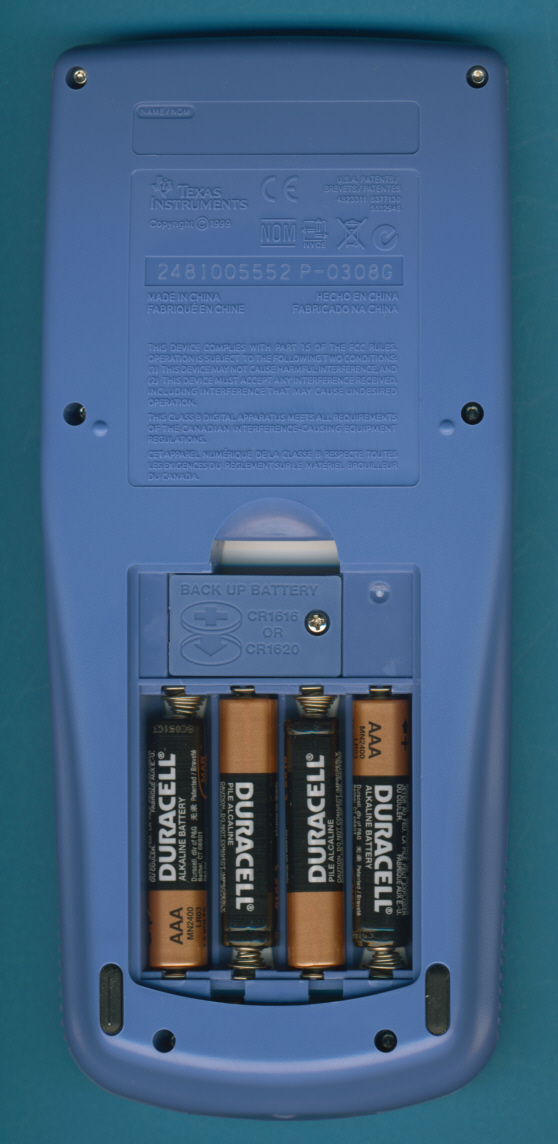

| This TI-73 Explorer with the date
code P-0308G was manufactured by Inventec in China in March 2008.
|
| The printed circuit boards
(PCBs) of a TI-73 Explorer manufactured in March 2008
looks very familiar to us. They are obviously borrowed from the TI-83 Plus (Hint: Silk screen at the right of the Main-PCB).
|

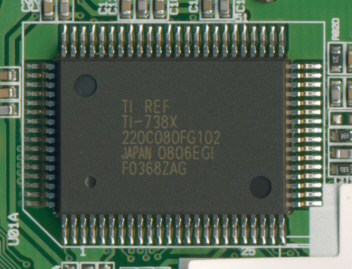

| The TI-73 Explorer ASIC
TI-738X 220C080 in a standard flatpack housing.
|

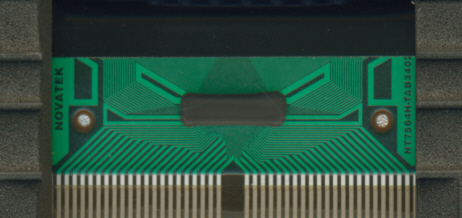

| The display
driver Novatek NT7564H of the TI-73 Explorer manufactured in 2008.
|
If you have additions to the above article please email: joerg@datamath.org.
