Additional Pictures

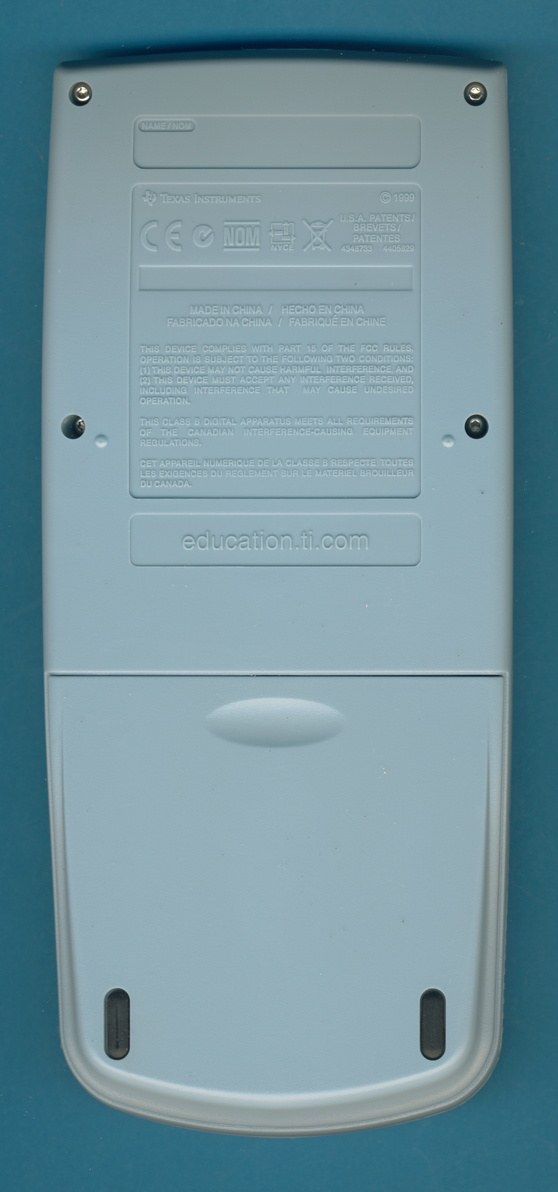

| This TI-Lycée Pro.fr Prototype
calculator was manufactured
in July 2008 by Inventec (Pudong) Corporation in China.
|

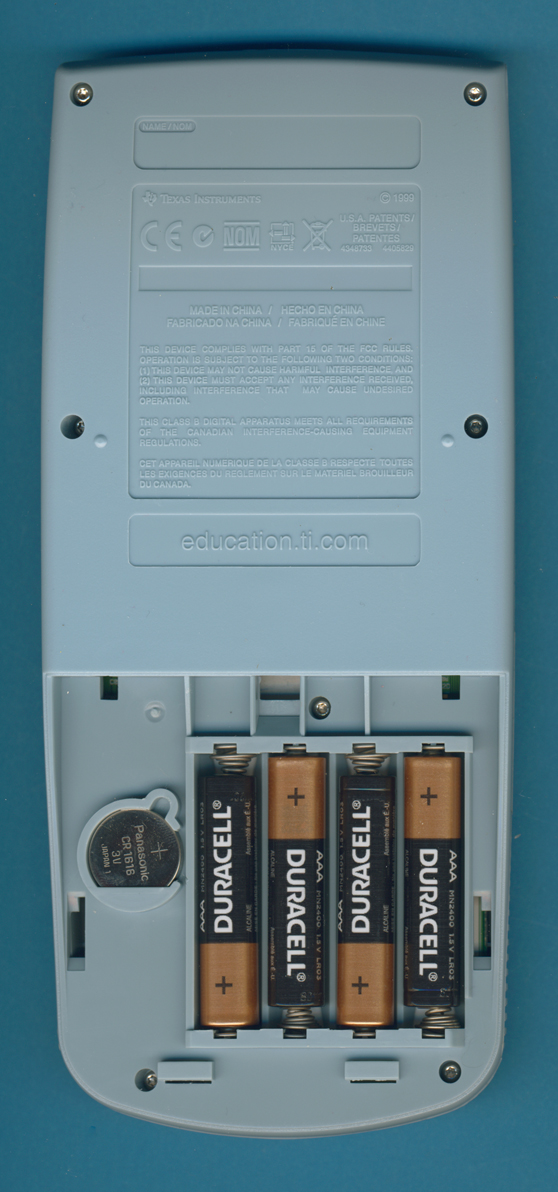

| The TI-Lycée Pro.fr Prototype
calculator is powered by four AAA-sized cells and a CR1616 or CR 1620 backup battery.  |

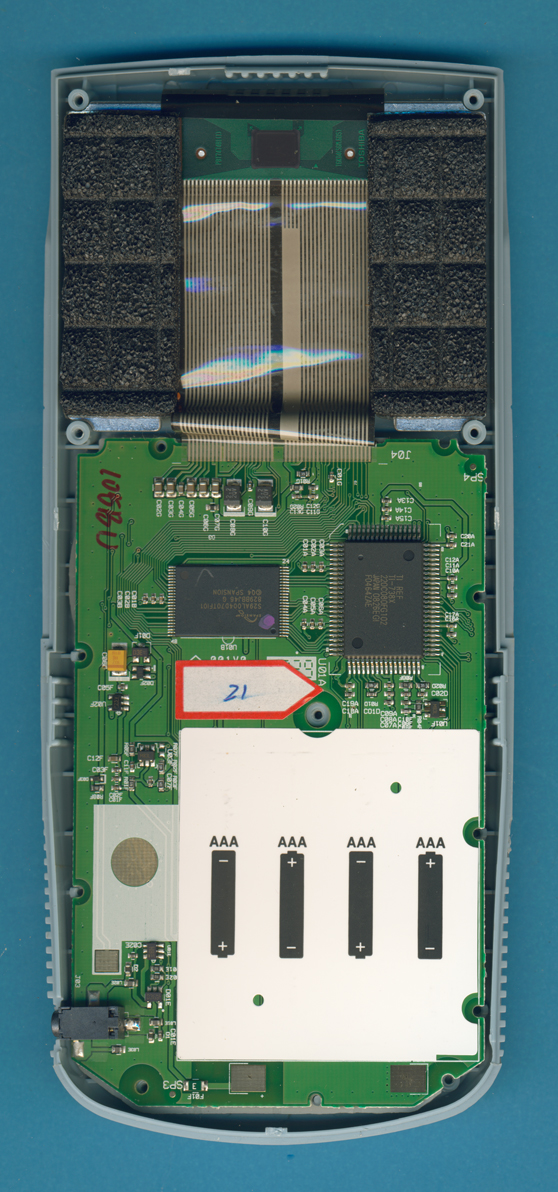

| The printed circuit board
(PCB) of the TI-Lycée Pro.fr manufactured in 2008 looks identical with the TI-82 Stats.fr introduced in 2006.
|

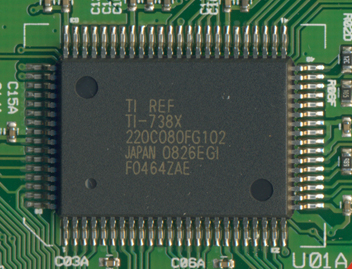

| The ASIC
TI-738X 220C080 of the TI-Lycée Pro.fr in a standard flatpack housing.
|
| The Flash-ROM
Spansion S29AL004D of the TI-Lycée Pro.fr with 512k Bytes capacity.
|

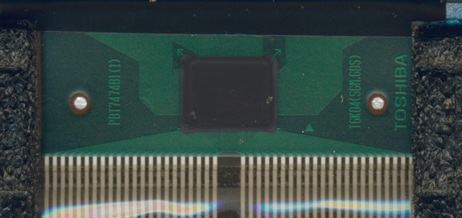

| The display
driver Toshiba T6K04 of the TI-Lycée Pro.fr manufactured in 2008.
|
If you have additions to the above article please email: joerg@datamath.org.
