Additional Pictures

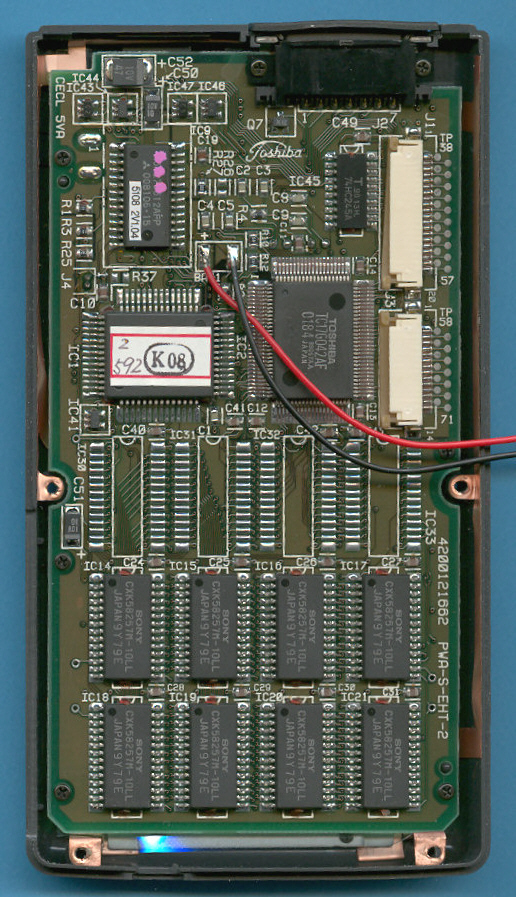

| The main printed circuit
board (PCB) of the TI-78 was obviously manufactured by Toshiba. It accommodates the CPU (hidden under the label), ROM, 8*S-RAM, ASIC and all the connectors.
|

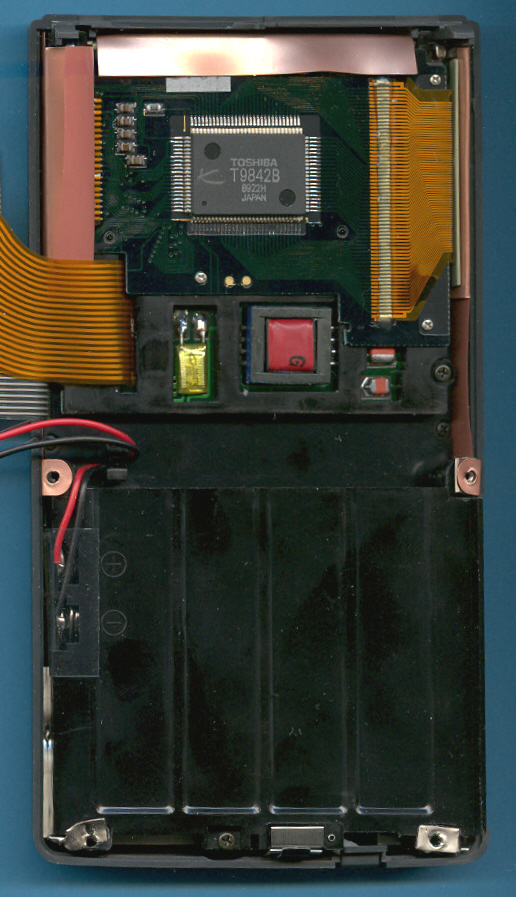

The top shelf of the
TI-78 holds the backlight illuminated LC-Display with a controller board and the rechargeable battery pack.
|
| Removing the
white label reveals a well known CPU.
|
The slim battery
pack of the TI-78 with a capacity of just 400mAh.
|
| The
ABX Air Boeing 767-200 Special Freighter in the DHL
design.
|
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, May 7, 2007. No reprints without written permission.
