Additional Pictures

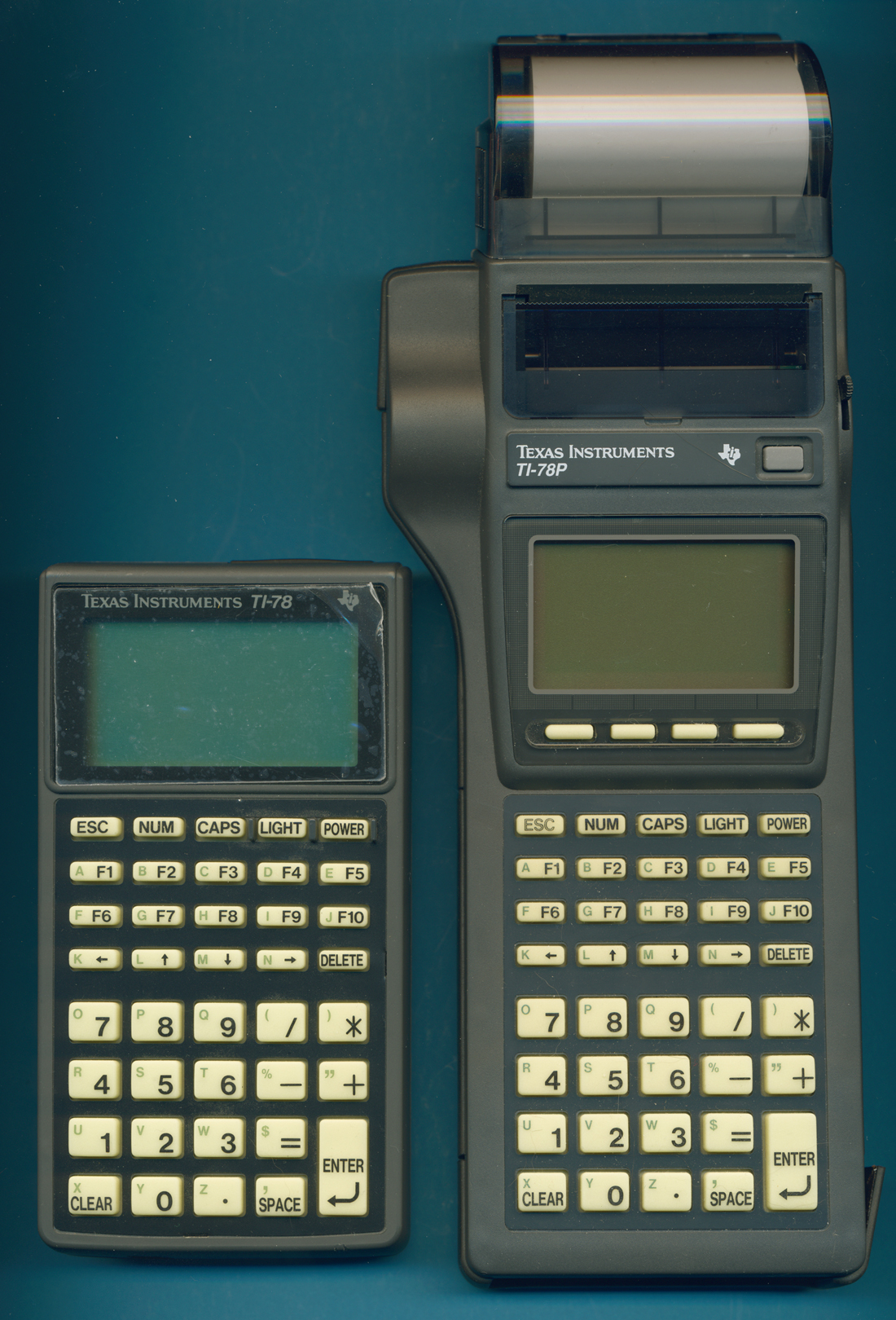

The
TI-78 and the never released TI-78P Prototype side by
side. |
|
|
This TI-78P Prototype was
manufactured in August 1989 by Toshiba
in Japan.
|
|
| The TI-78P
Prototype dismantled.
|
|
| The
rechargeable battery pack of the TI-78P Prototype.
|

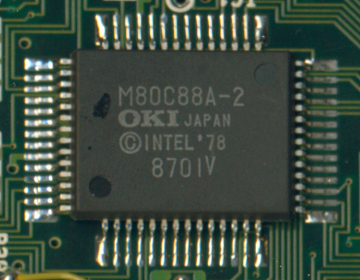

The
Intel 8088 compatible microprocessor of the TI-78P Prototype. |

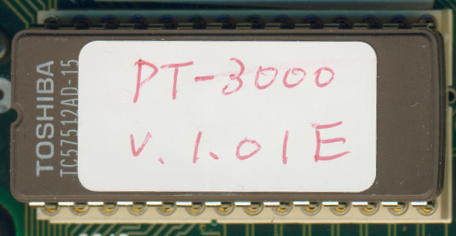

| The
EPROM with 64k Bytes capacity.
|
The
Mystery ROM.
|
| The
pairs of S-RAM with 32k Bytes, each.
|

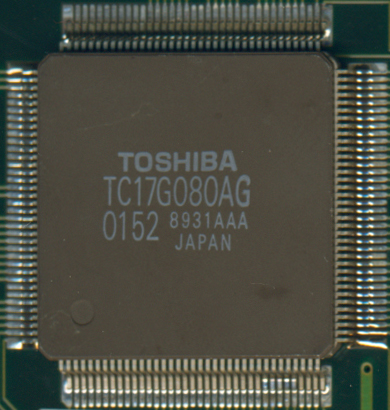

The
ASIC of the TI-78P Prototype. |
The RTC (Real Time Clock) of the TI-78P. |
|
