Additional Pictures

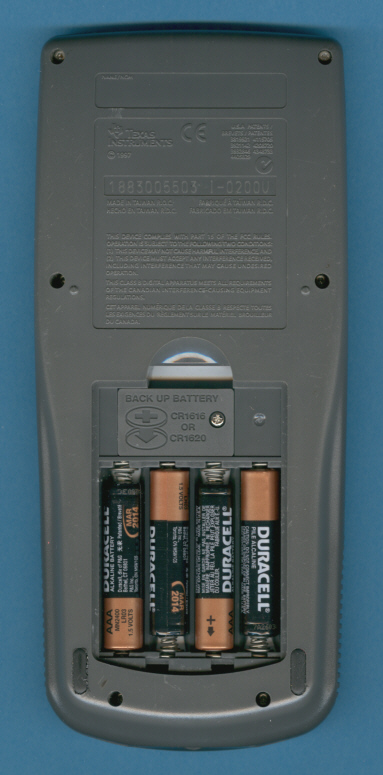

This second generation TI-82 was manufactured in
February 2000 in Taiwan by Inventec.

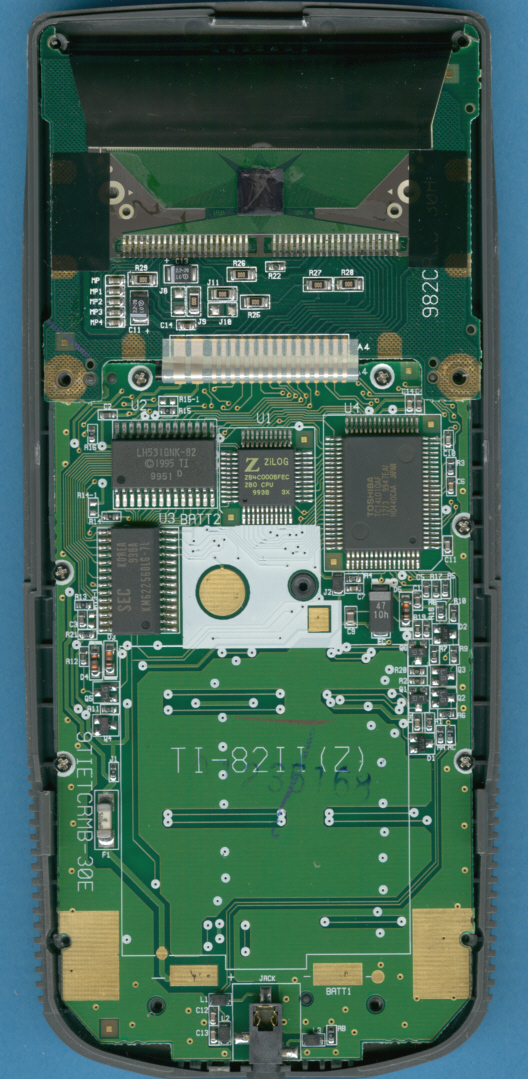

The second generation of the TI-82 uses
old technology in new clothes.

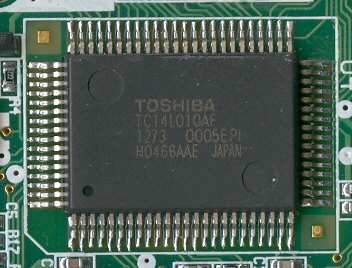

The ASIC of the 2nd generation
TI-82 is known from the original design.

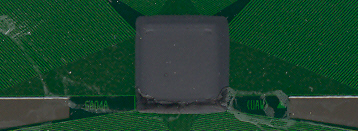

The display driver of the TI-82  in a small
COB housing mounted on a second PCB:

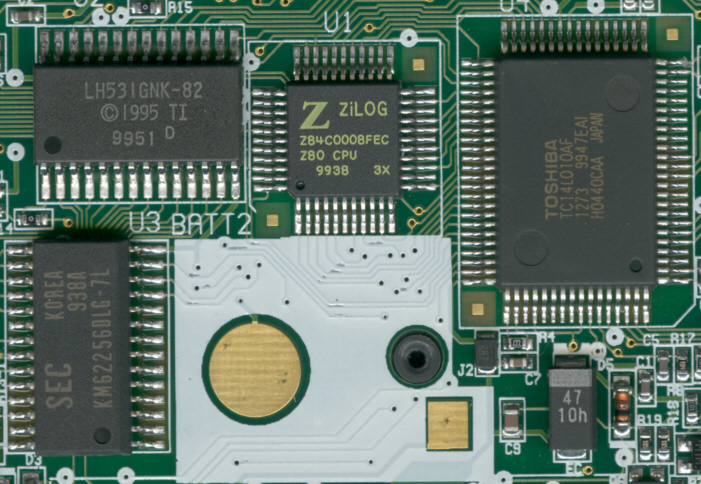

The main components of the TI-82: Zilog T84C0008 CPU, Toshiba TC14C010 ASIC,
Sharp LH531 1995 ROM and Samsung KM62256 RAM.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, September 9, 2007. No reprints without written permission.
