Additional Pictures

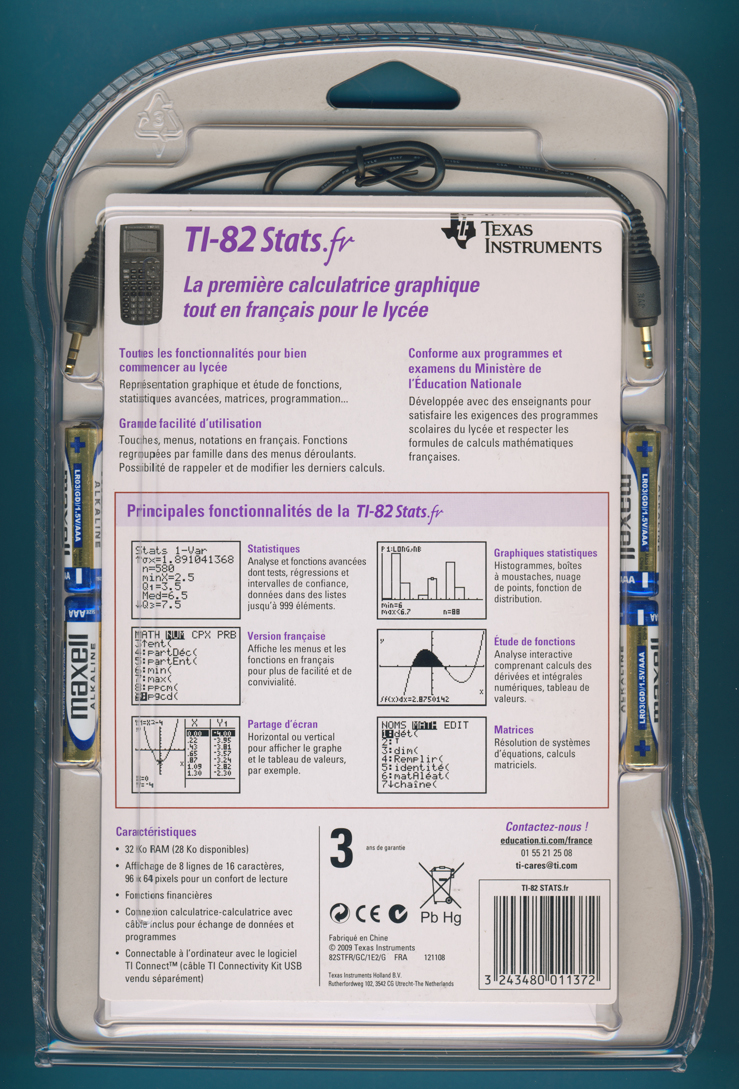

The black TI-82 calculator sold in 2009 in its package. This calculator was only
available in France and covers just one language: French.

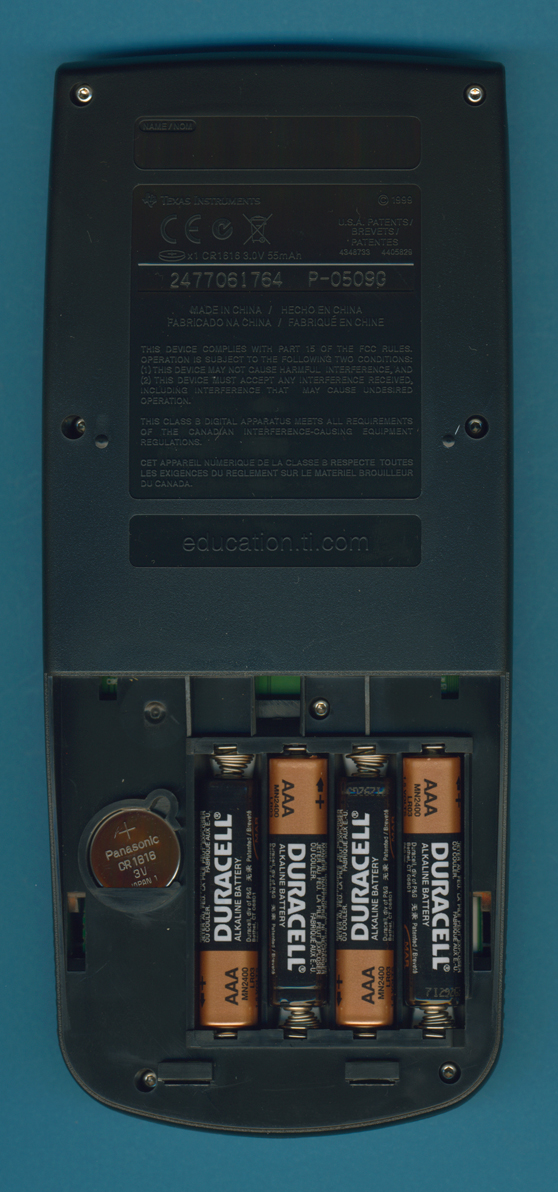

This TI-82 with the date code P-0509 was manufactured by
Inventec (Pudong) Corporation in China in May 2009.

The printed circuit board (PCB) of the TI-82 manufactured in 2009
looks identical with the original TI-82 introduced in 2006.

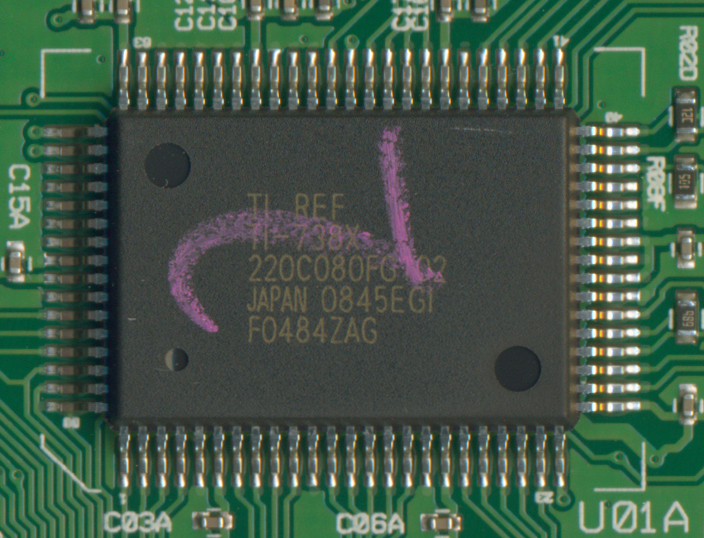

The TI-82 ASIC TI-738X 220C080 in a standard flatpack housing.

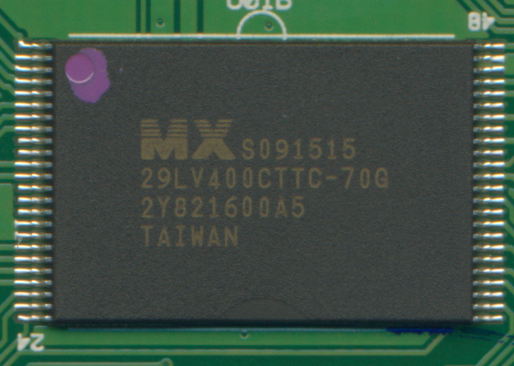

The TI-82 Flash-ROM Macronix 29LV400 with 512k Byte capacity.

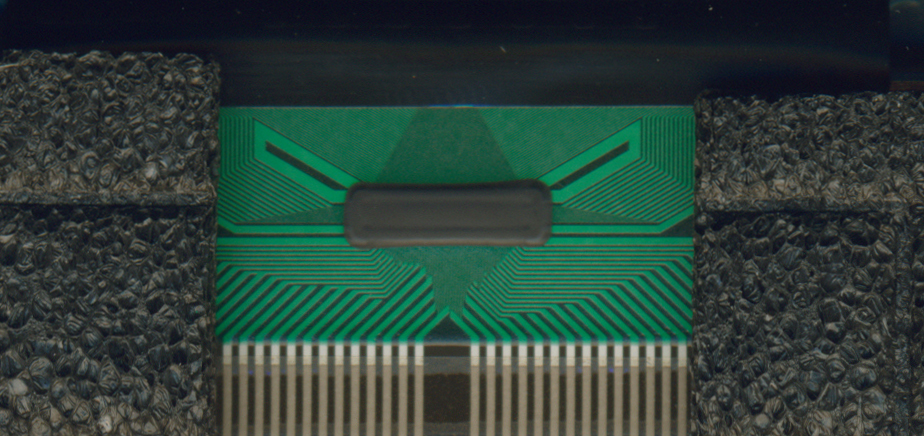

The display driver Novatek NT7564H of the TI-82 manufactured in 2009.

horizontal rule

If you have additions to the above article please email:

Joerg Woerner, September 23, 2009. No reprints without written permission.
