Additional Pictures

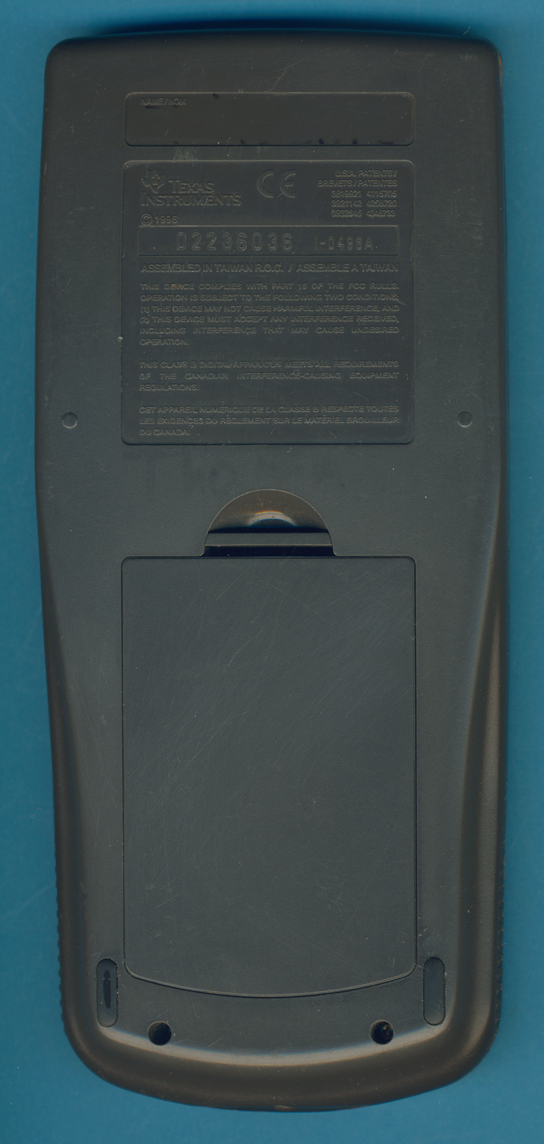

| This TI-83 Graphing
calculator
was
manufactured in April 1996 by Inventec Corporation in Taiwan (Date code I-0496A » mth 04 yr 1996).
|
The TI-83 is powered by
4 AAA batteries and a CR1620 backup battery.
|

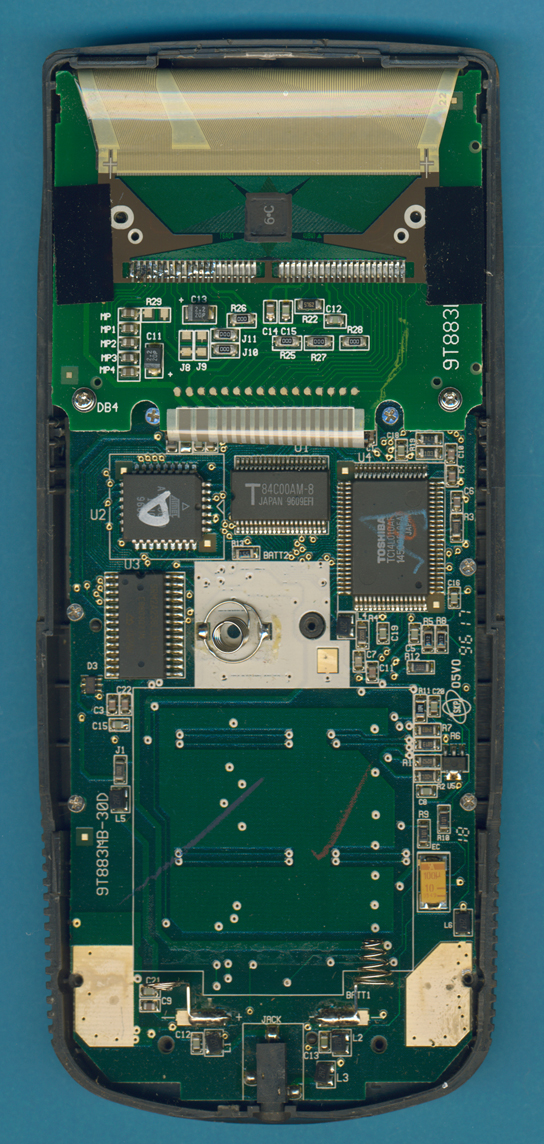

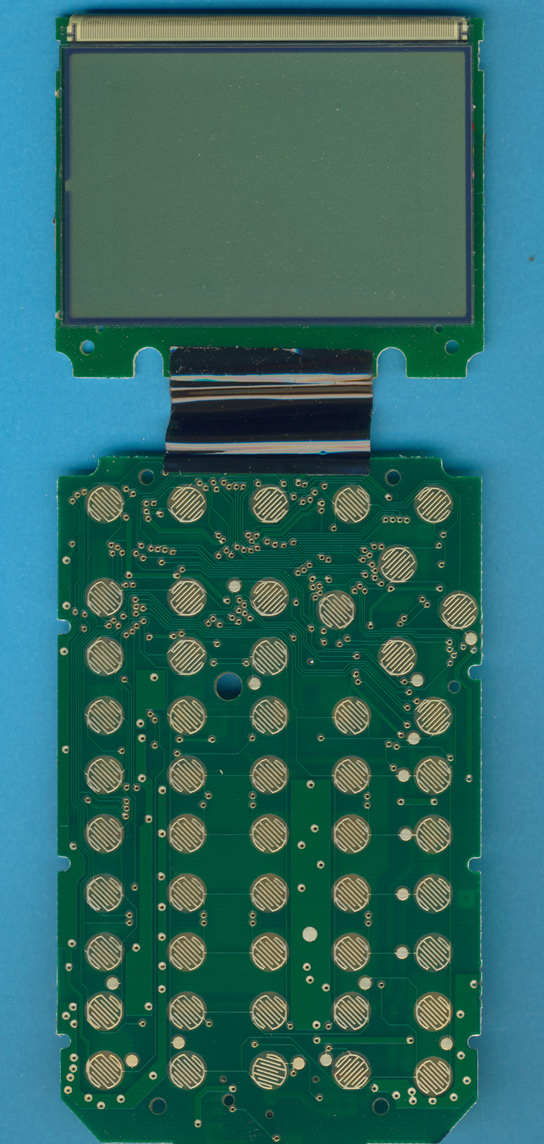

| The printed circuit
board (PCB) of the TI-83 looks very similar to the
earlier TI-82.
|

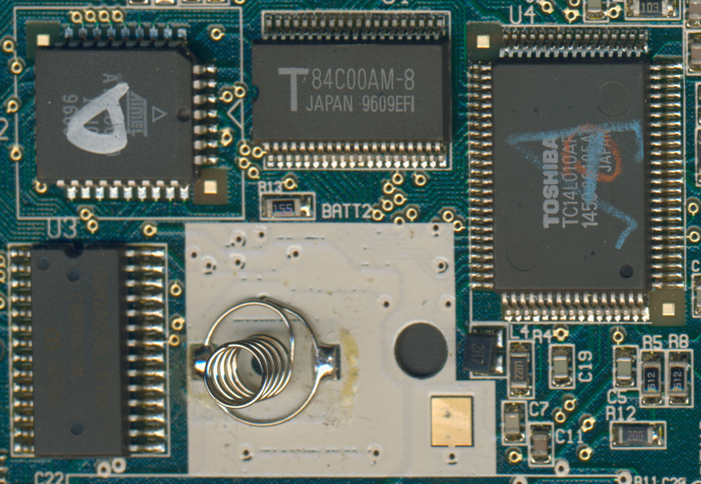

| The main
components of the first TI-83: Toshiba T84C00A CPU,
Toshiba TC14L010 ASIC, Atmel AT27C020 OTP ROM and Epson SRM2A256 RAM.
|

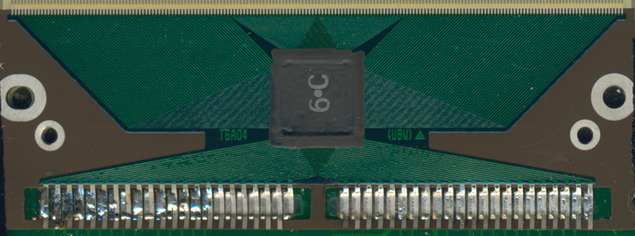

| The display driver
of the TI-83 in a small COB housing mounted on a second PCB:
|
If you have additions to the above article please email: joerg@datamath.org.
