DATAMATH CALCULATOR MUSEUM |
Additional Pictures

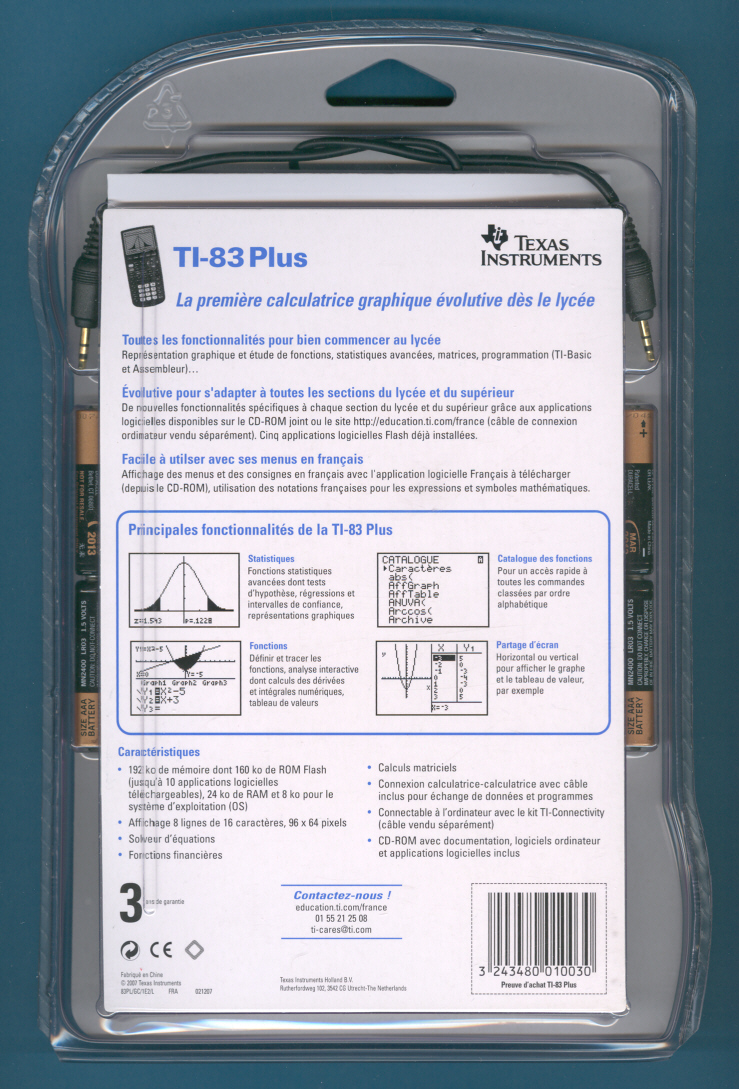

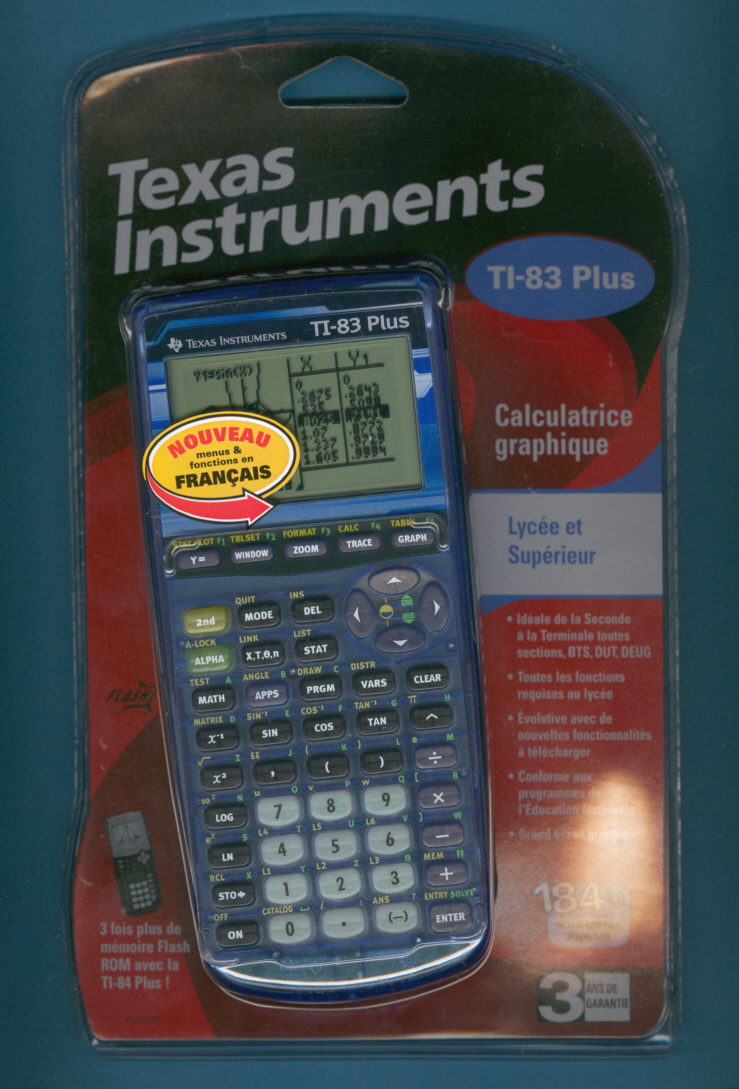

The blue TI-83 Plus calculator
sold in 2007 in its package. This calculator
was only available in France and covers just one language: French. |

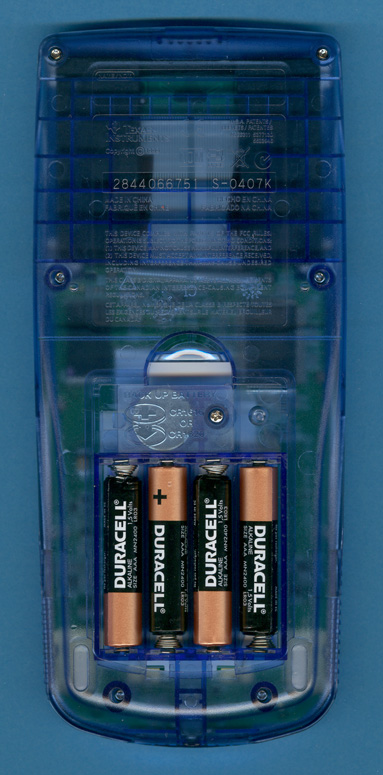

This TI-83 Plus with the date code S-0407K was manufactured by Inventec in China in April 2007. |
The printed circuit board
(PCB) of the TI-83 Plus manufactured in 2007 is
completely different to the earlier versions. Both the Z-80 microprocessor and the RAM are integrated into an ASIC. |
The TI-83 Plus ASIC TI-738X 220C080 in a standard flatpack housing. |

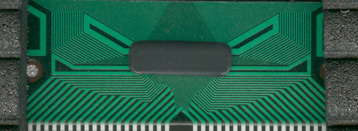

The display driver Novatek NT7564H of the TI-83 Plus manufactured in 2007. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 5, 2008. No reprints without written permission.
