Additional Pictures

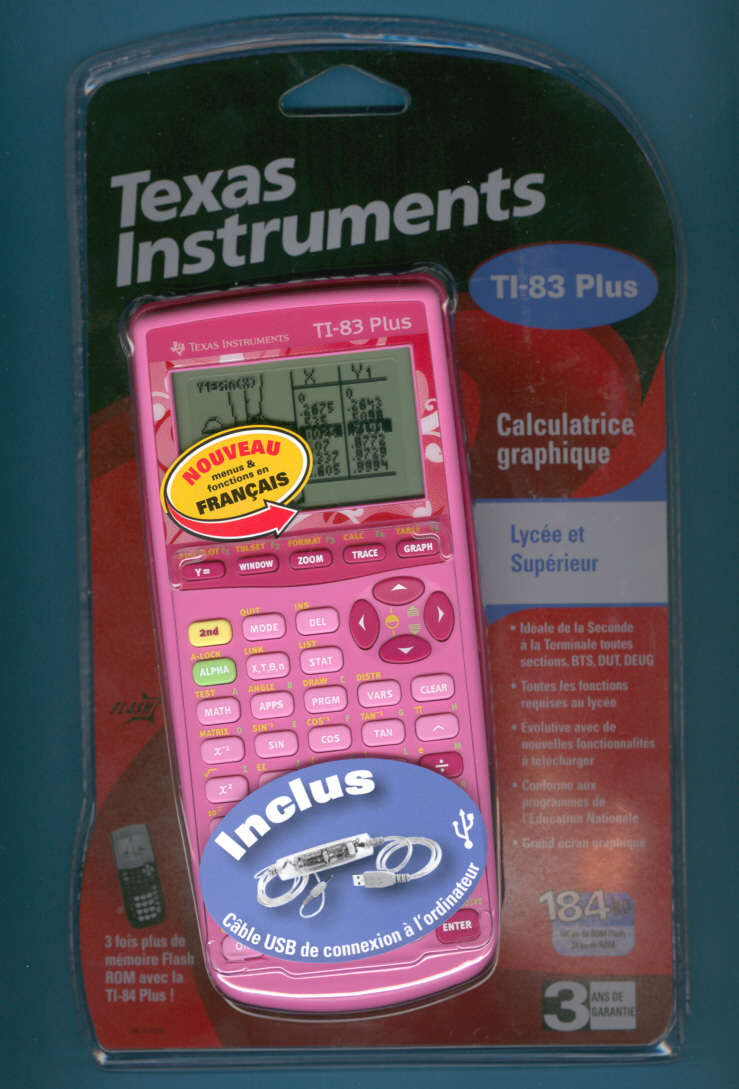

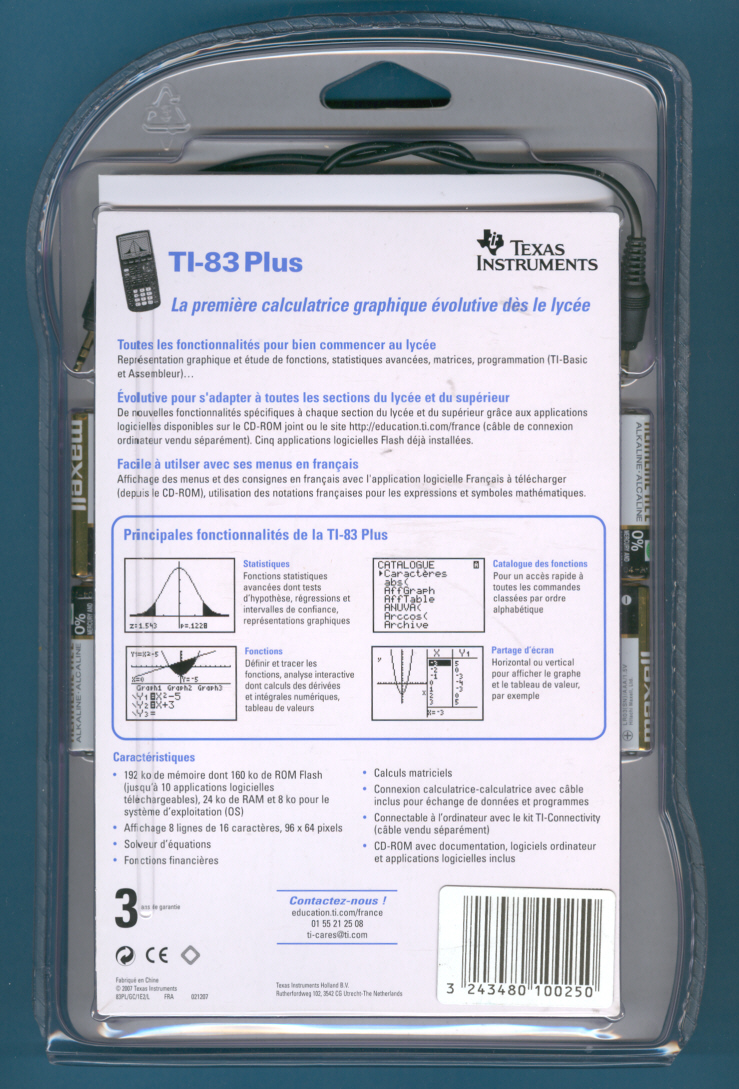

| The pink TI-83 Plus calculator
sold in 2007 in its package. This calculator
was only available in France and covers just one language: French.
|

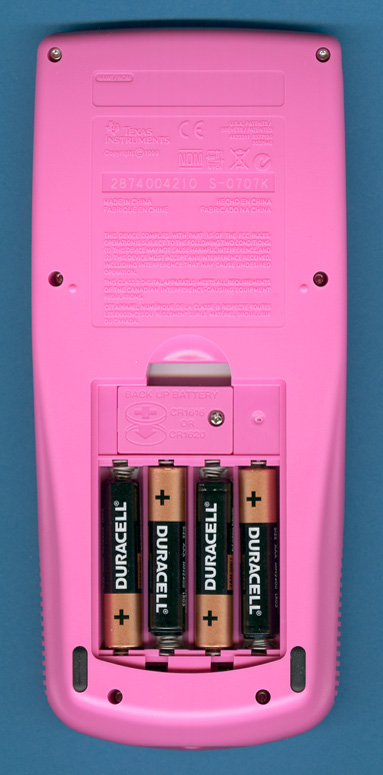

| This TI-83 Plus with the date
code S-0707K was manufactured by Inventec in China in July 2007.
|
| The printed circuit board
(PCB) of the TI-83 Plus manufactured in 2007 is
completely different to the earlier versions. Both the Z-80 microprocessor and the RAM are integrated into an ASIC.
|

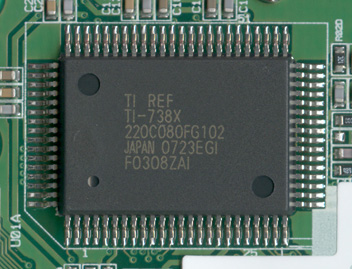

| The TI-83 Plus ASIC
TI-738X 220C080 in a standard flatpack housing.
|

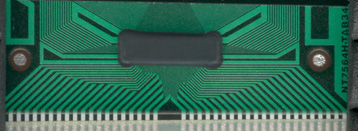

| The display
driver Novatek NT7564H of the TI-83 Plus manufactured in 2007.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 5, 2008. No reprints without written permission.
