Additional Pictures

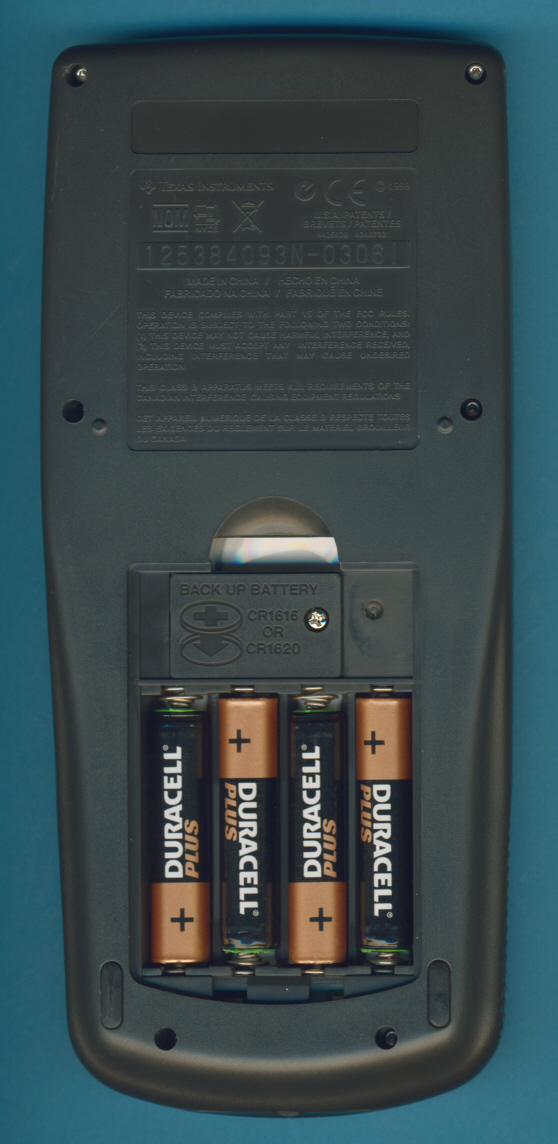

| This TI-83 Plus with the date
code N-0306I was manufactured by Nam Tai in China in March 2006.
|

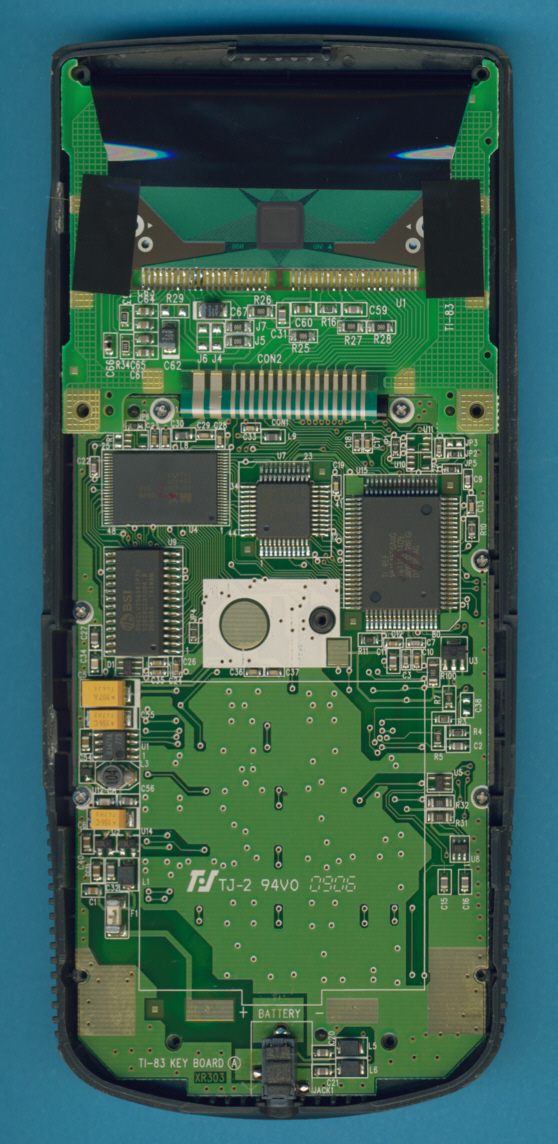

| The printed circuit board
(PCB) of the TI-83 Plus manufactured in 2006 is more
or less identical with the original design introduced already in 1999.
|

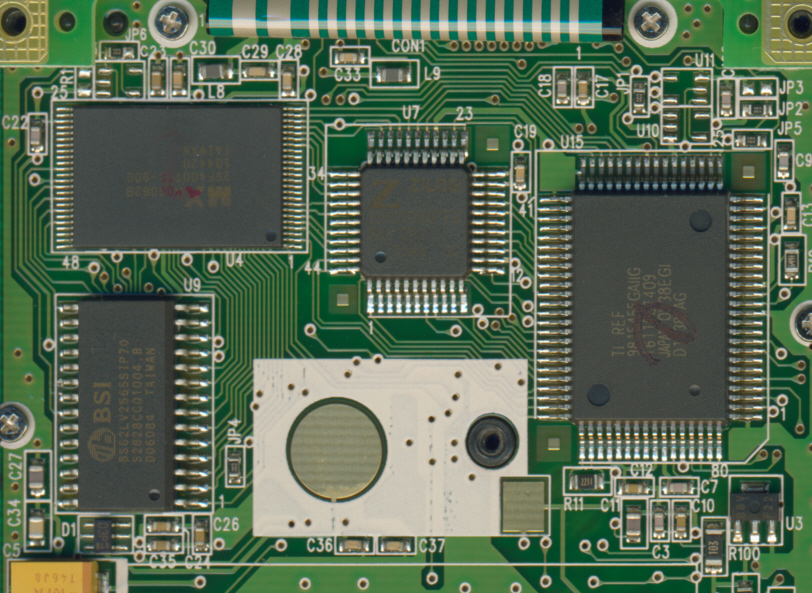

| The PCB of this TI-83
Plus manufactured in March 2006 with the classic Z-80 based
architecture. The Flash-ROM MX 29F400 stores up to 512k Byte Program and the S-RAM BS62LV2565 sports 32k Byte capacity.
|

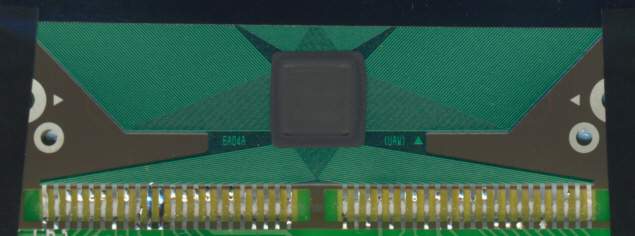

| The display
driver Toshiba T6A04A of the TI-83 Plus manufactured in March 2006.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, March 25, 2009. No reprints without written permission.
