Additional Pictures

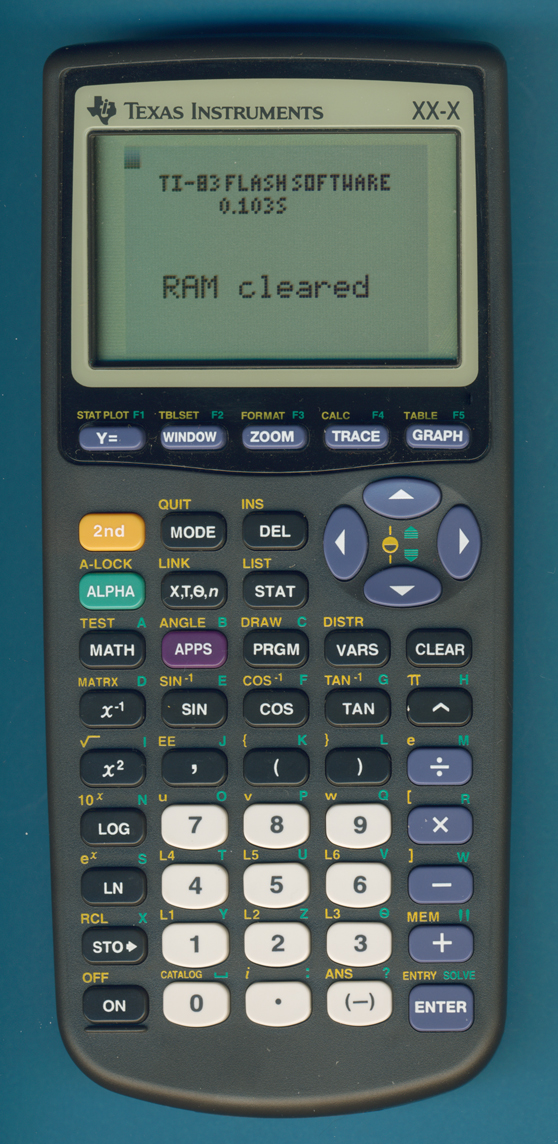

The welcome
screen of
the mystery Texas Instruments XX-X calculator reveals its identity. |

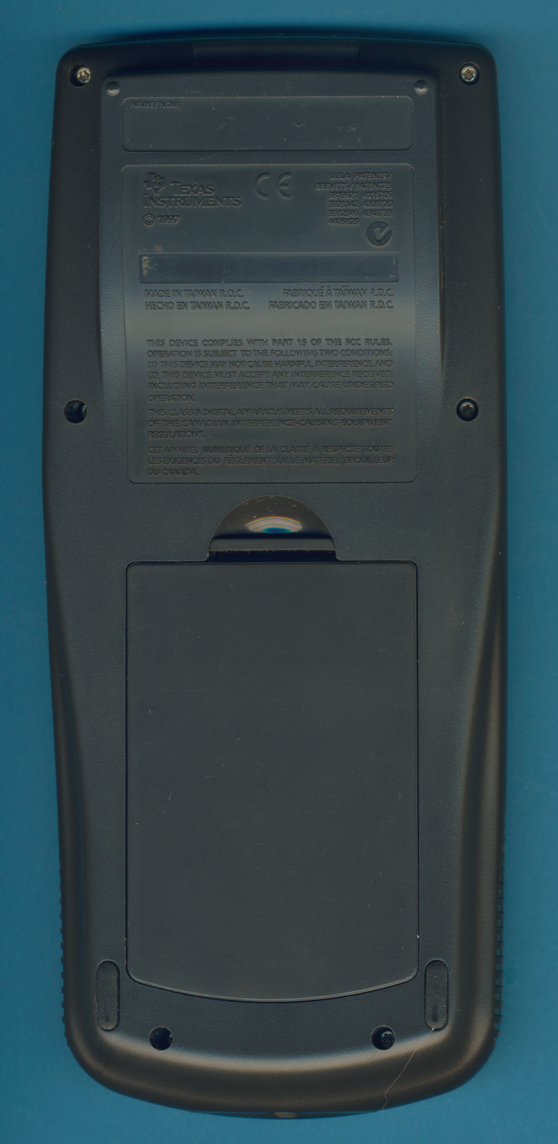

This TI-83 Plus VSC
Prototype calculator was manufactured in April
1998 by Inventec Corporation in Taiwan. It uses a redesigned bottom shell of the housing to accommodate the ViewScreen connector. |

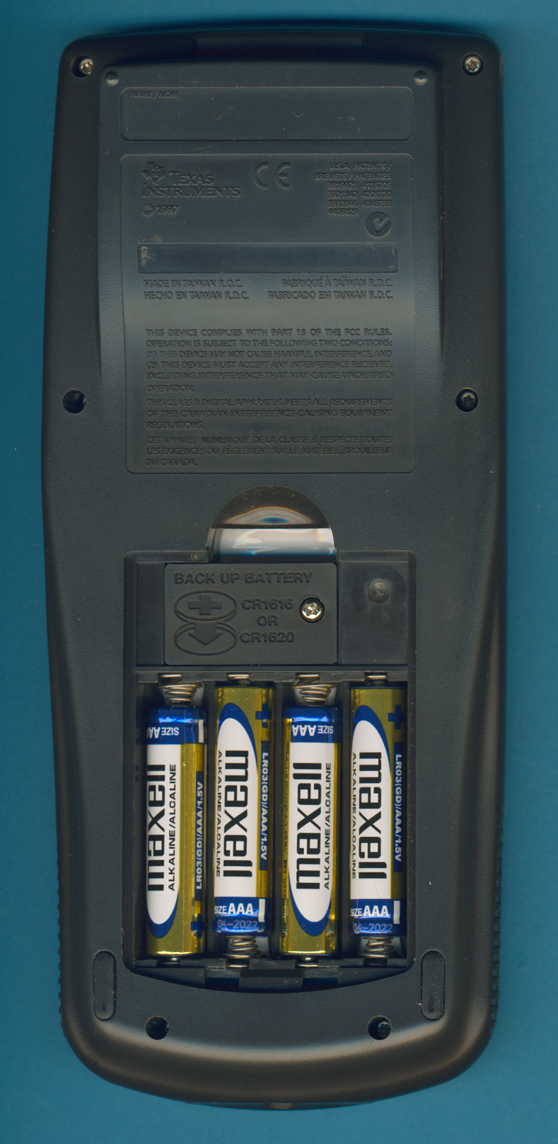

This TI-83 Plus VSC
Prototype calculator is powered by four AAA-sized cells and a CR1620
backup battery. |
A small, carefully
shielded PCB (printed circuit board) hosts some drivers between the ViewScreen connector and the flexible cable reaching to the display PCB. |

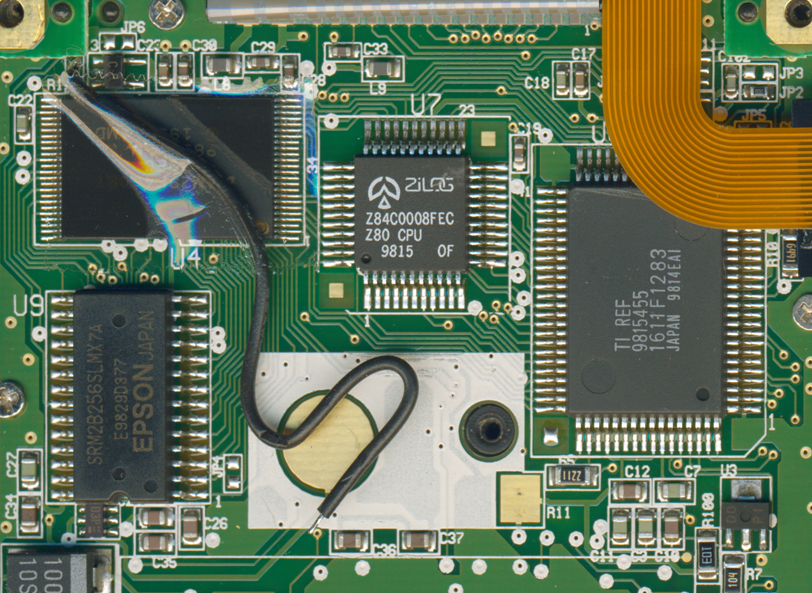

The PCB of this TI-83
Plus VSC Prototype manufactured in April 1998 looks more or less
identical to the later TI-83 Plus calculator and is centered around a Zilog Z80 CPU, an ASIC and two Memory chips for program and data. |

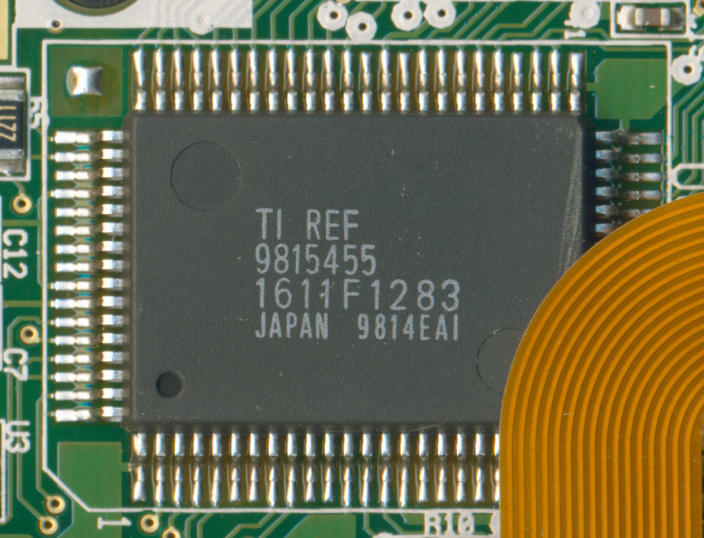

Close-up view of the TI
REF 9815455 ASIC. |

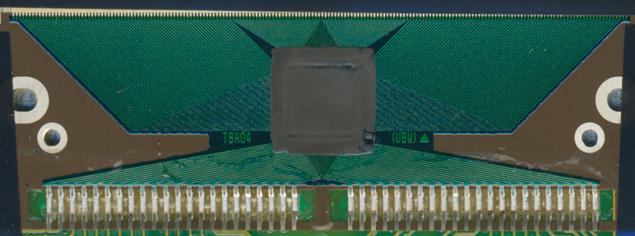

The display driver Toshiba T6A04 of the TI-83 Plus VSC Prototype manufactured April 1998. |
If you have additions to the above article please email: joerg@datamath.org.
