Additional Pictures

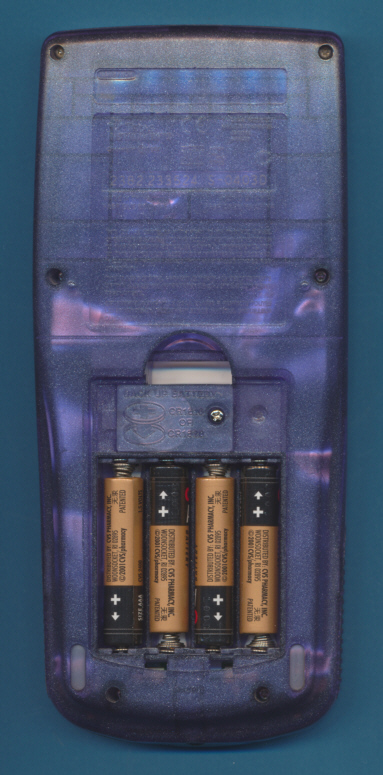

| This TI-83 Plus with the date
code S-0403D was manufactured by Inventec in China in April 2003.
|

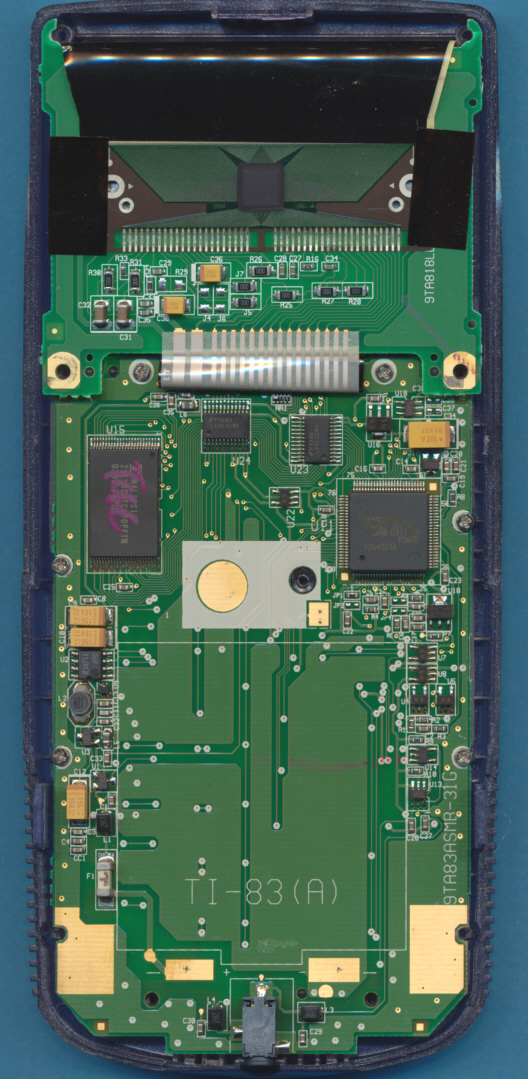

| The printed circuit board
(PCB) of the TI-83 Plus manufactured in 2003 is
completely different to the earlier versions. Both the Z-80 microprocessor and the RAM are integrated into an ASIC.
|

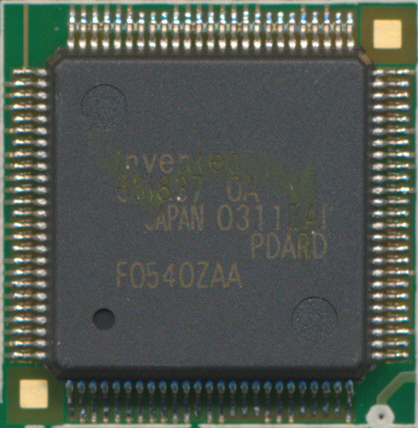

| This TI-83 Plus uses an ASIC
6SI837 developed by Inventec in a standard flatpack housing.
|
| The display
driver Toshiba T6A04A of the TI-83 Plus manufactured in 2003.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, June 23, 2008. No reprints without written permission.
