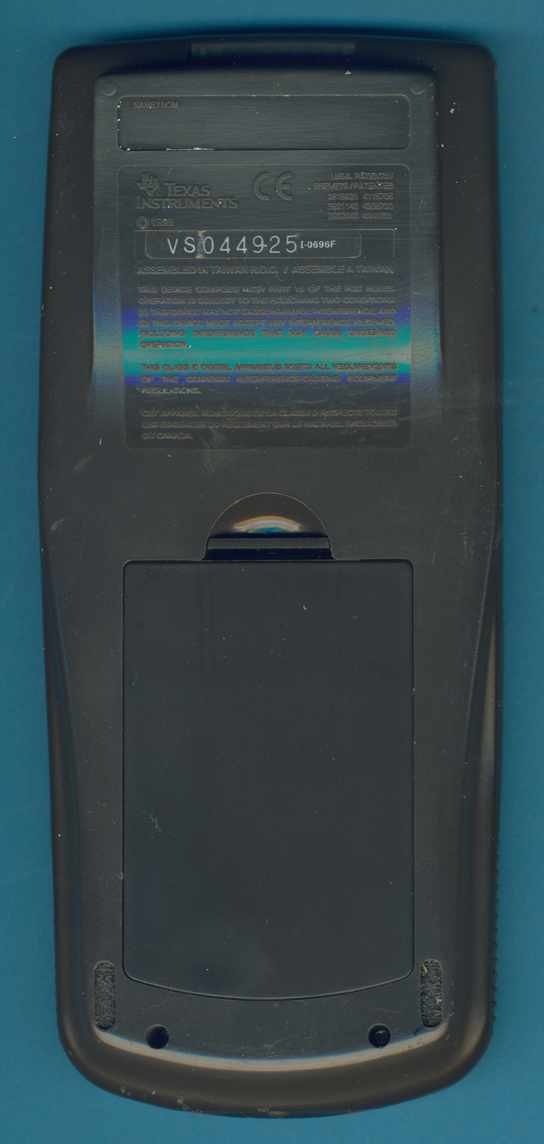

This TI-83 ViewScreen Graphing calculator was manufactured in June1996 by
Inventec Corporation in Taiwan (Date code I-0696F » mth 06 yr 1996).

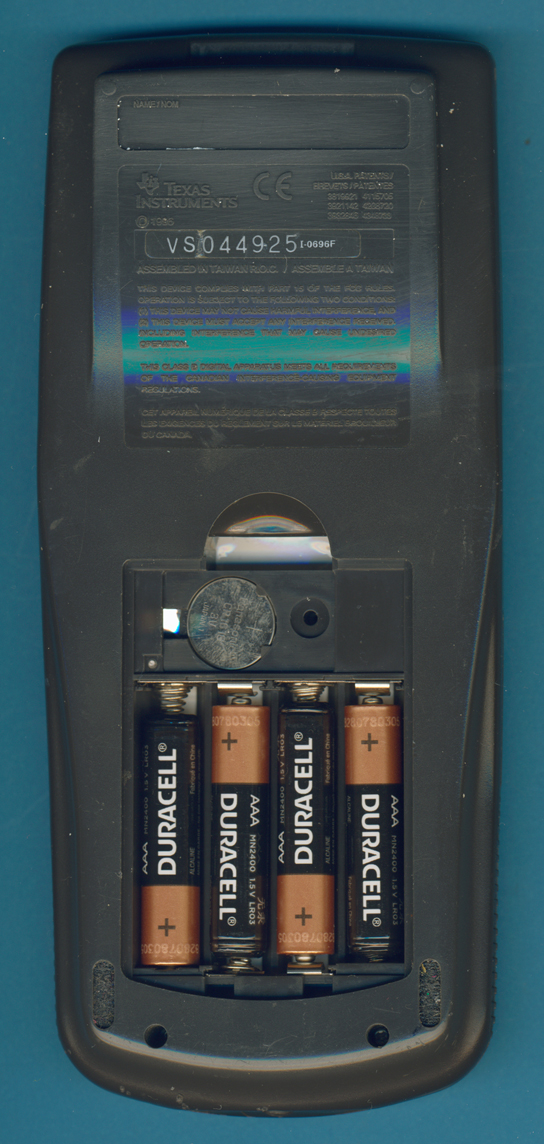

The TI-83 ViewScreen is powered by 4 AAA batteries and a CR1620 backup battery.

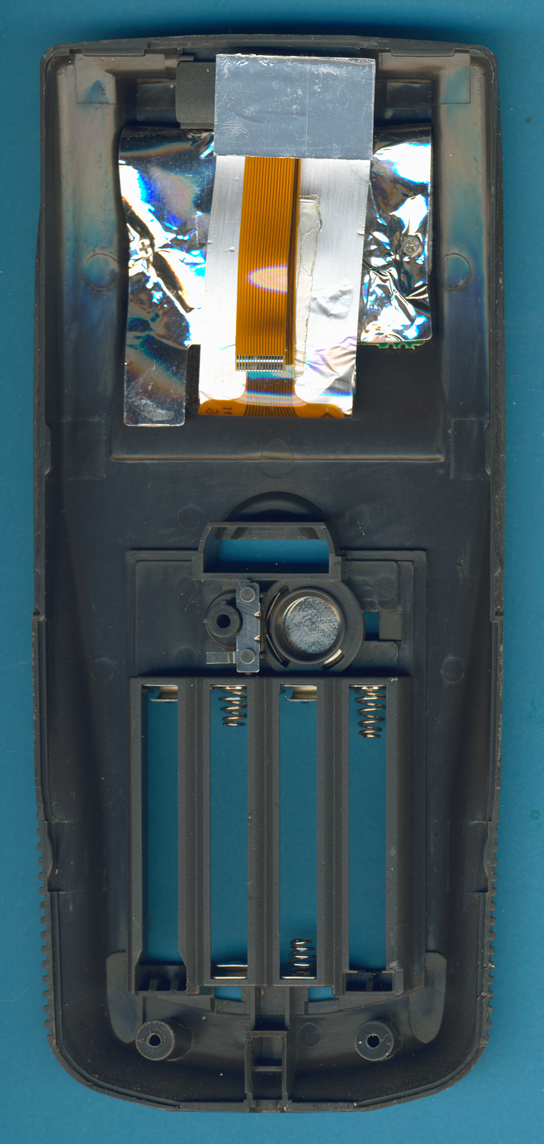

The bulky housing of the TI-83 ViewScreen accommodates the driver for the external screen.

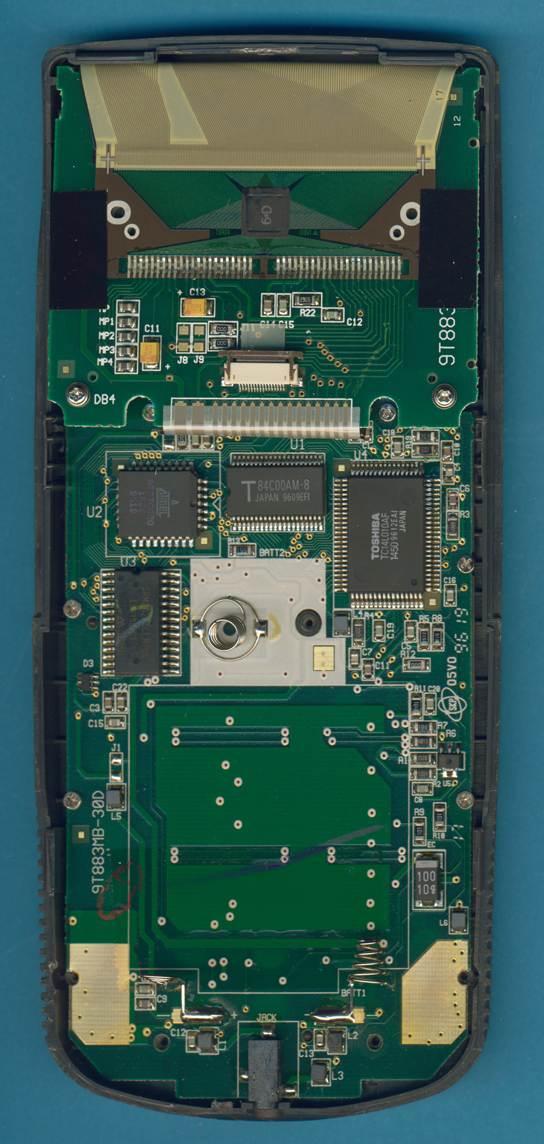

The printed circuit board (PCB) of the TI-83 ViewScreen looks very similar to the earlier TI-82.

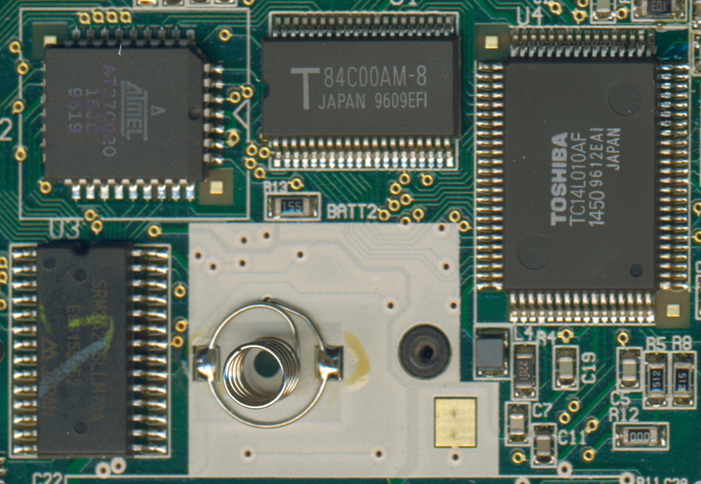

The main components of the first TI-83 ViewScreen: Toshiba T84C00A CPU,
Toshiba TC14L010 ASIC,  Atmel AT27C020 OTP ROM and Epson SRM2A256 RAM.

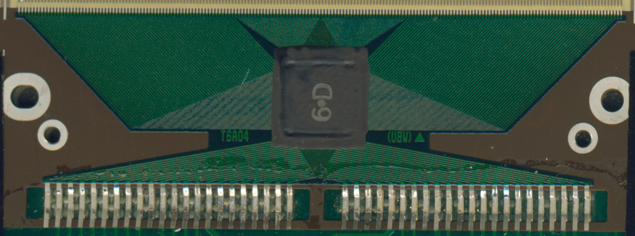

The display driver of the TI-83  ViewScreen in a small COB housing mounted on a second PCB:
