Additional Pictures

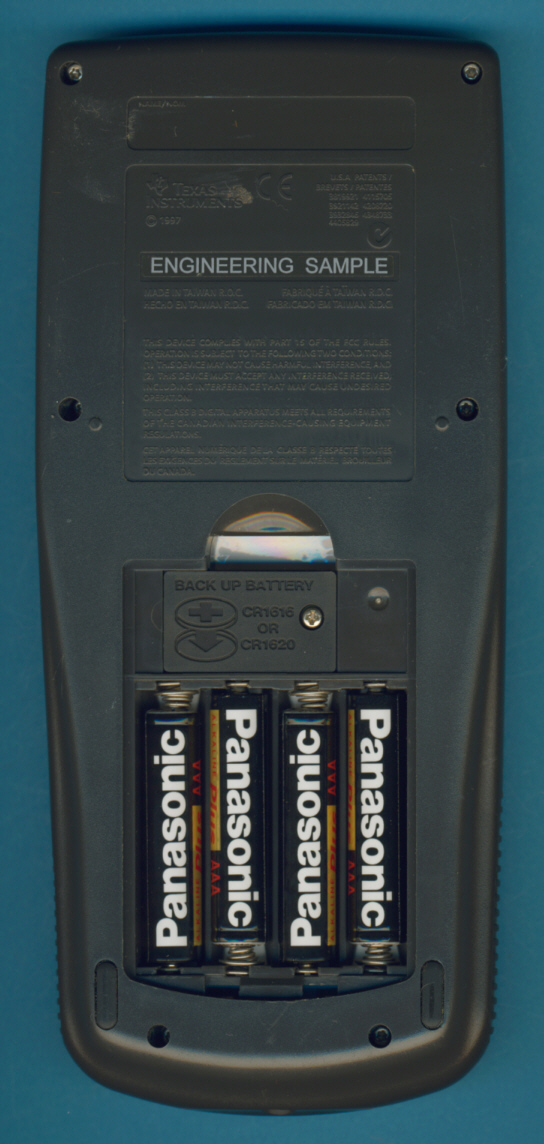

| This TI-83 Engineering
Sample without date
code was manufactured by Inventec in Taiwan in 1998.
|
| The printed circuit
board (PCB) of this TI-83 looks very similar to the
TI-82.
|

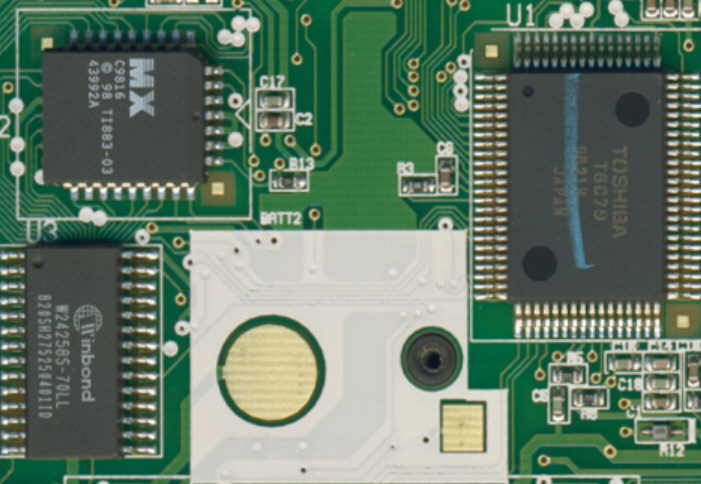

| The main
components of the TI-83: Toshiba
T6C79 Application Specific CPU, Macronix ©1998 ROM and Winbond W24258S RAM.
|

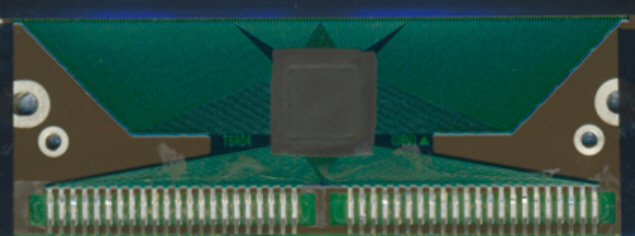

| The display driver
of the TI-83 in a small COB housing mounted on a second PCB:
|
