Additional Pictures

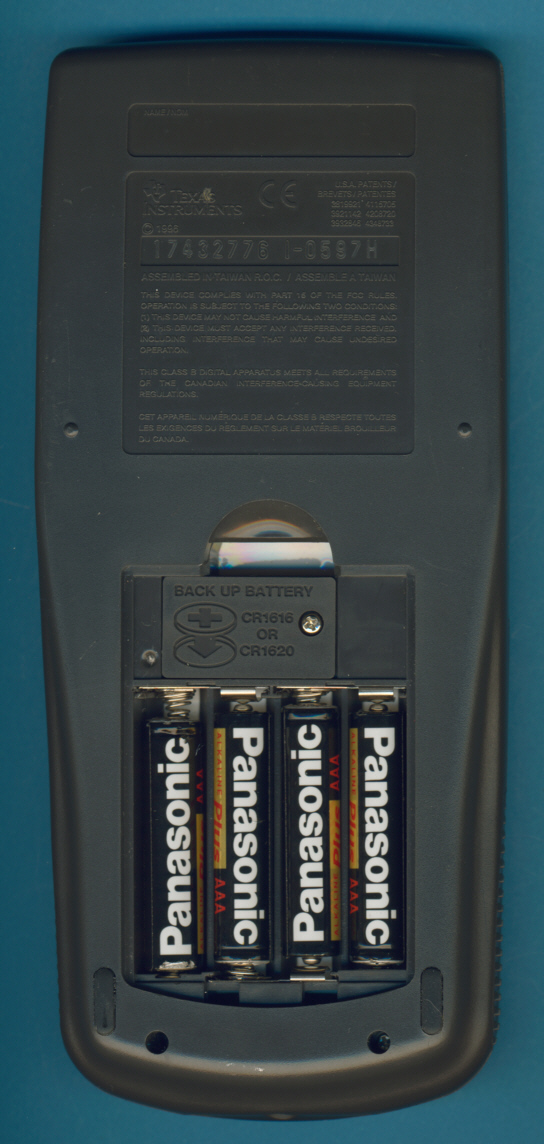

| This TI-83 calculator with the Date code
I-0597 was manufactured by Inventec Corporation in Taiwan in May 1997.
|

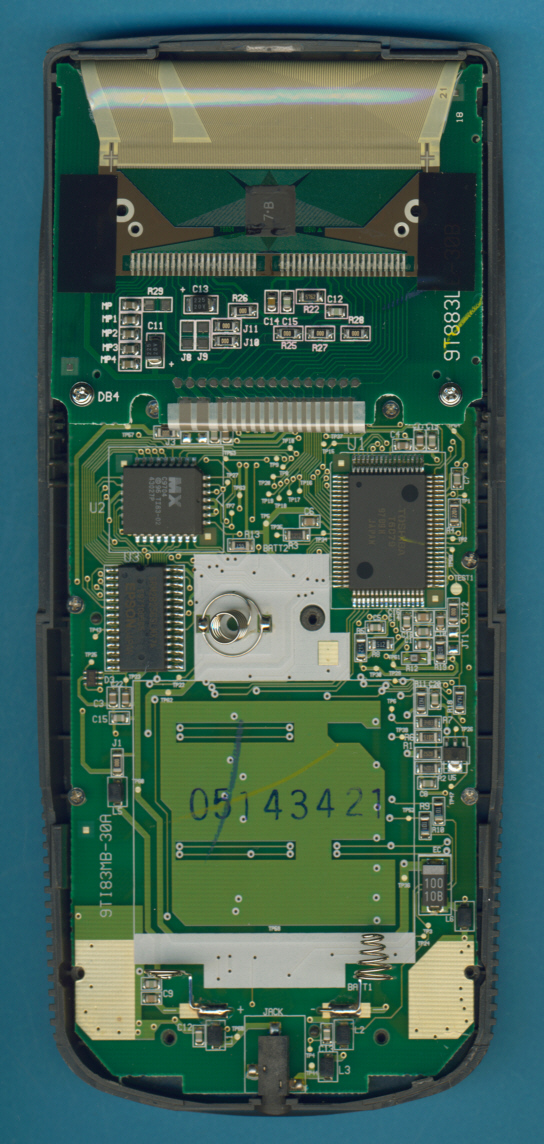

| The printed circuit
board (PCB) of the TI-83 looks very similar to the
later TI-82.
|

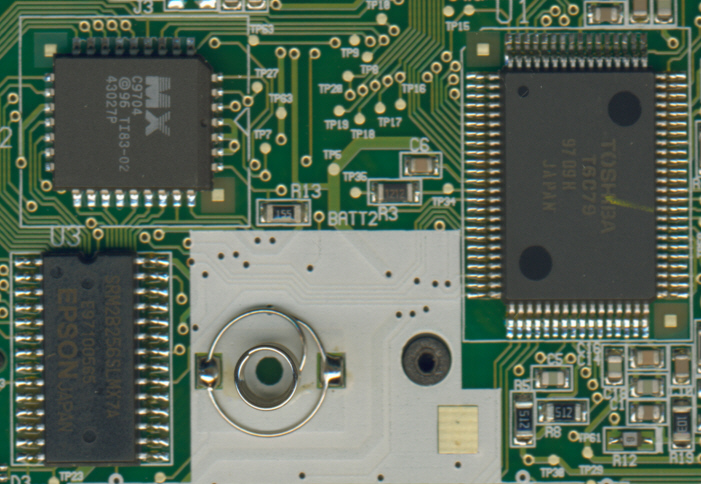

| The main
components of the TI-83: Toshiba
T6C79 Application Specific CPU, Macronix TI83-02©1996 ROM and Epson SRM28256 RAM.
|

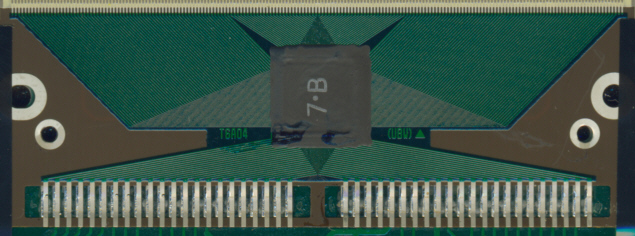

| The display driver
of the TI-83 in a small COB housing mounted on a second PCB:
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 18, 2009. No reprints without written permission.
