Additional Pictures

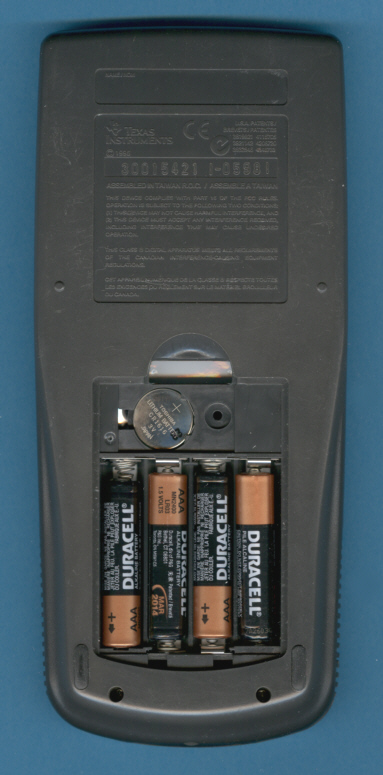

| This TI-83 was manufactured in May
1998 in Taiwan by Inventec.
|

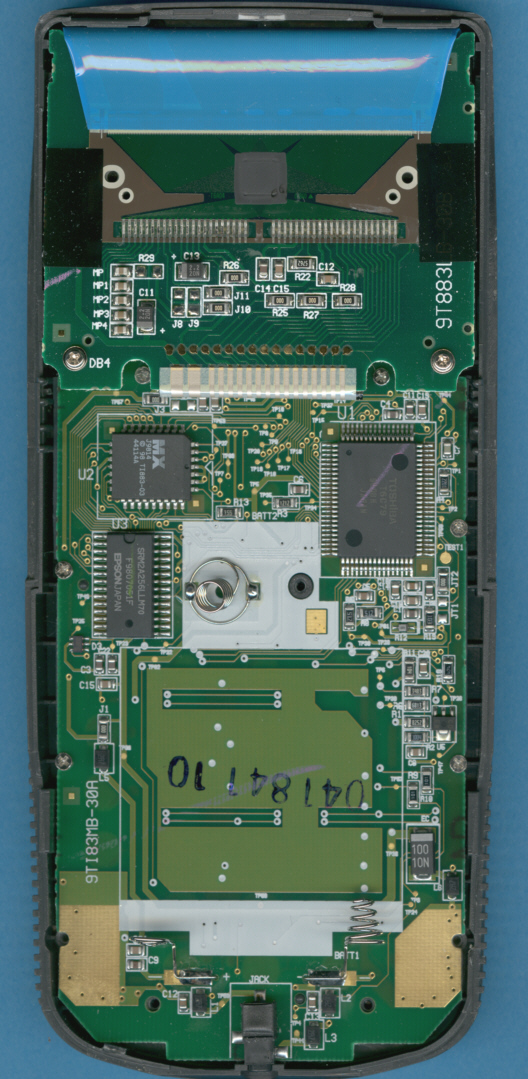

| The printed circuit
board (PCB) of the TI-83 looks very similiar to the
late TI-82.
|
| The main
components of the TI-83: Toshiba
T6C79 Application Specific CPU, Macronix ©1998 ROM and Epson SRM2A256 RAM.
|

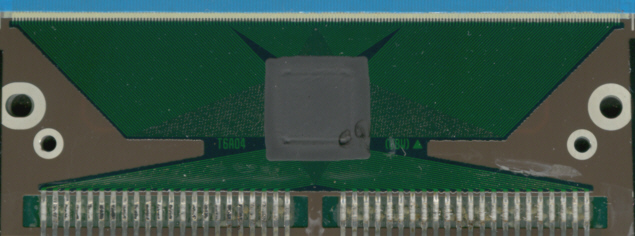

| The display driver
of the TI-83 in a small COB housing mounted on a second PCB:
|
