Additional Pictures

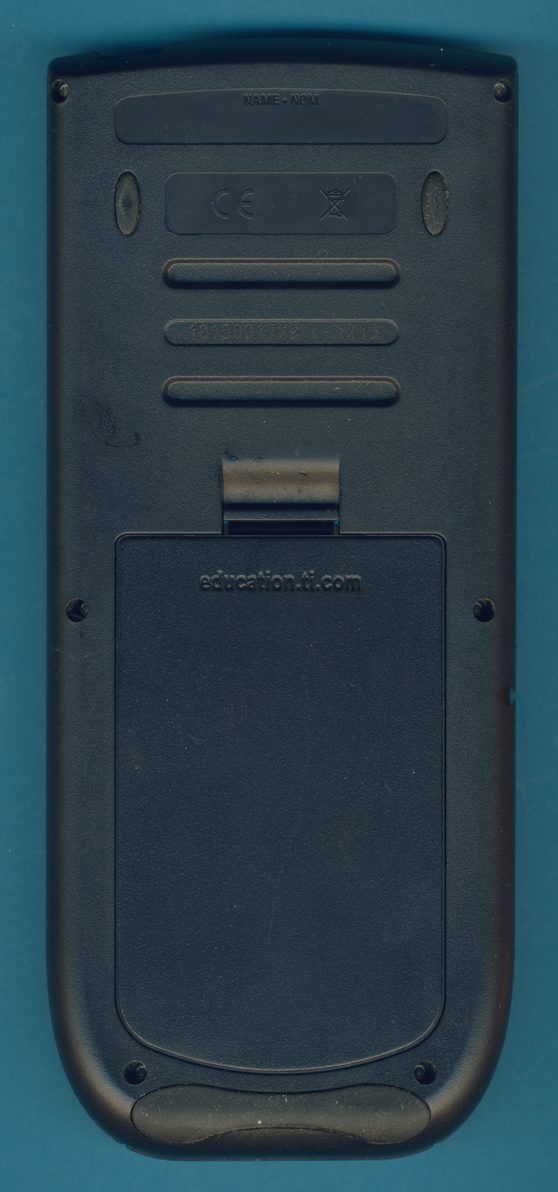

This TI-84 Plus T Graphing calculator was manufactured in December 2015 by
Kinpo Electronics, Inc. in the Philippines (Date code L-1215 mth 12 yr 2015).

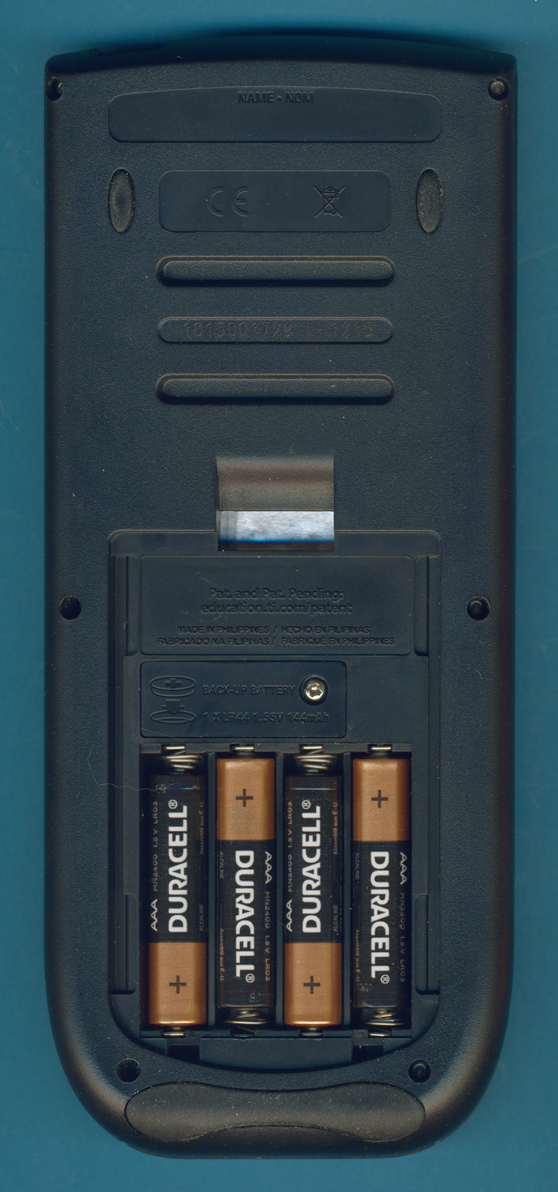

The TI-84 Plus T Graphing calculator is powered by four AAA-sized cells and a LR44 backup battery.

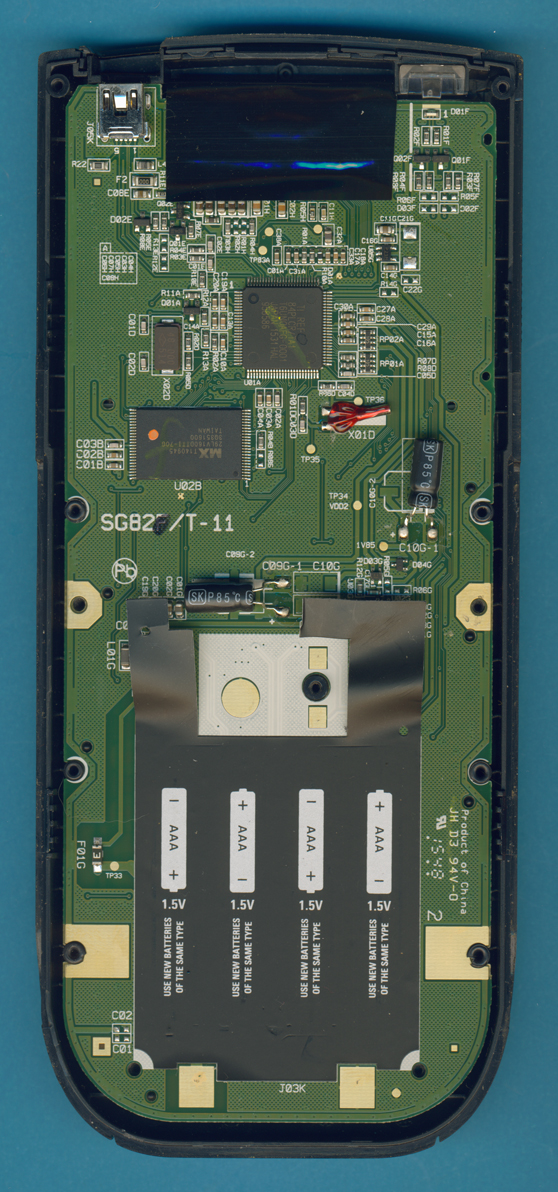

The printed circuit board (PCB) of the TI-84 Plus T looks very familiar to us and sports a SG82F designation.

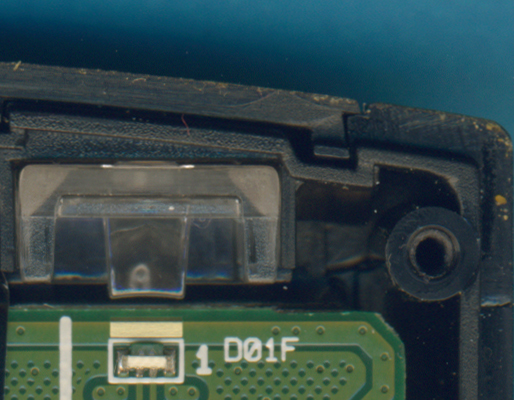

The small LED with attached light pipe of the TI-84 Plus T.

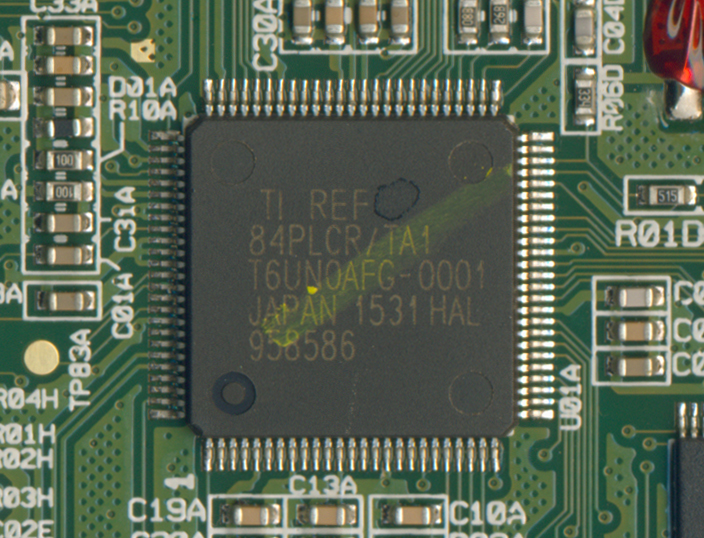

The TI-84 Plus T manufactured in December 2015 with the tiny "TI-REF 84PLCR/TA1" ASIC.

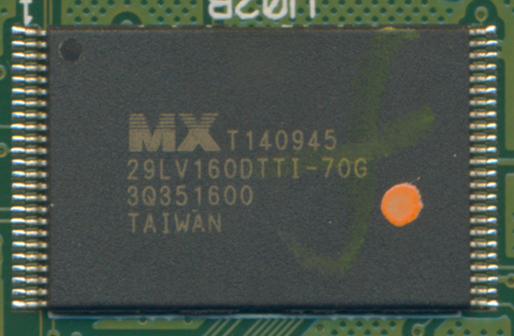

The Flash-ROM of the TI-84 Plus T manufactured in December 2015 with a capacity of 2M Bytes.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, May 29, 2020. No reprints without written permission.
