Additional Pictures

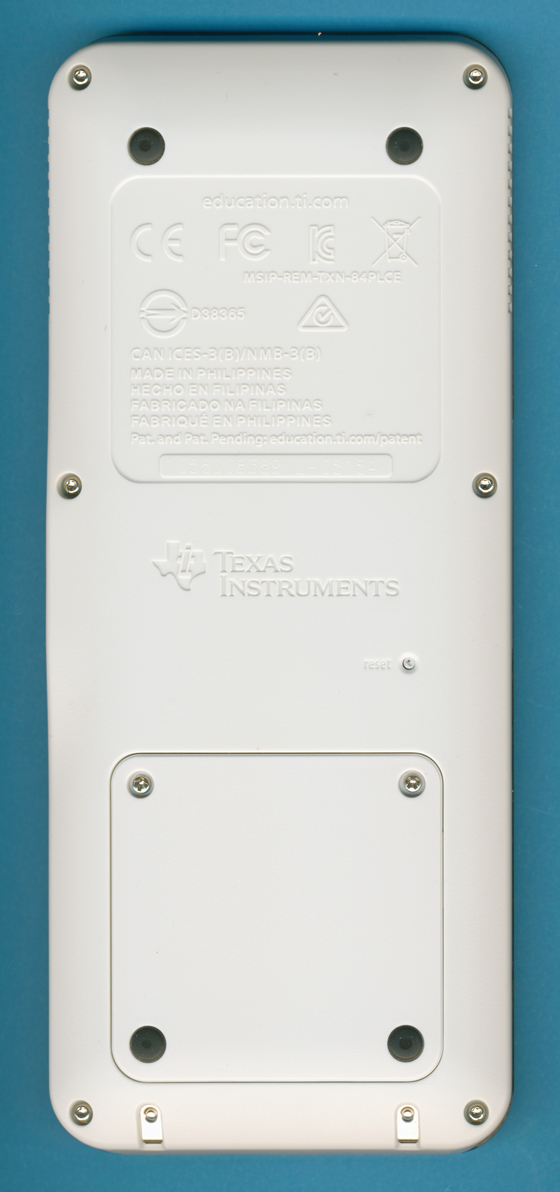

This TI-84 Plus CE-T with the date code L-0515 was manufactured in May 2015 by
Kinpo Electronics, Inc. in the Philippines (Date code L-0515 mth 05 yr 2015).


The TI-84 Plus CE-T replaced the 4 AAA-sized alkaline batteries with
a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.


The Li-ion battery of the TI-84 Plus CE-T.

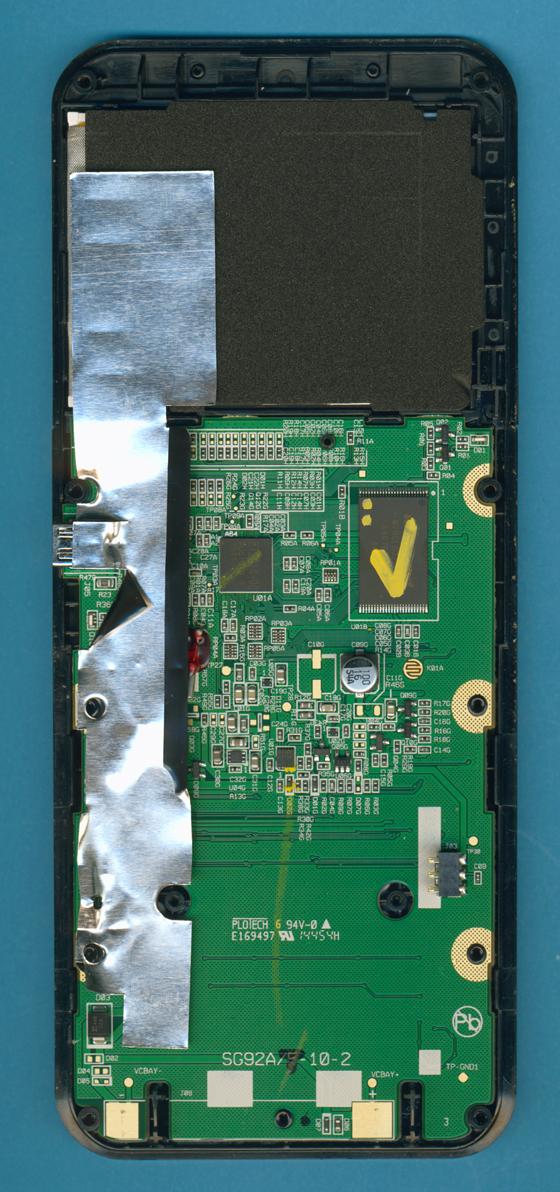

The printed circuit board (PCB) of the TI-84 Plus CE-T manufactured in May 2015.

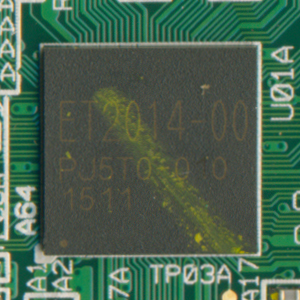

The TI-84 Plus CE manufactured in May 2015 with the "ET 2014-00" ASIC.

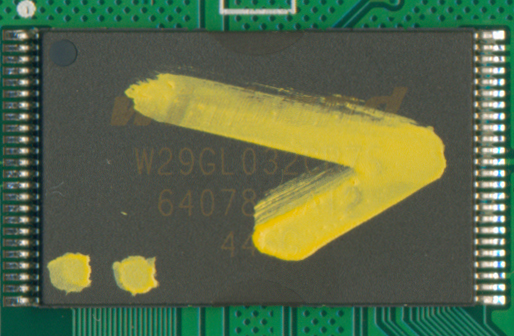

The Flash-ROM of the TI-84 Plus CE manufactured in May 2015 with a capacity of 4M Bytes.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, August 2, 2017. No reprints without written permission.
