Additional Pictures

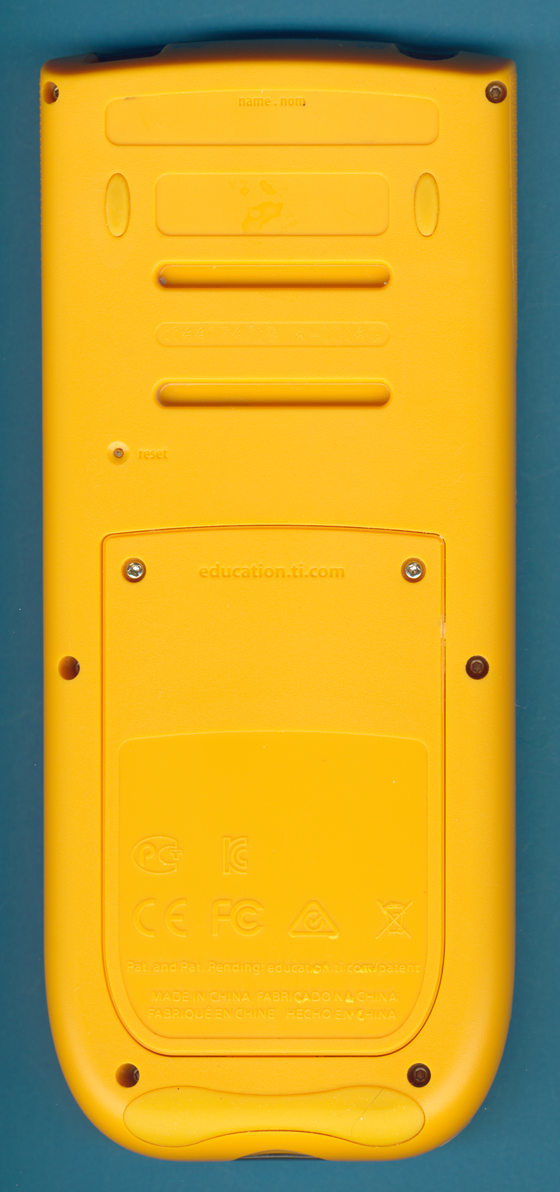

| This TI-84 Plus
C Silver Edition EZ-Spot with the date
code K-0314G was manufactured in March 2014 by Kinpo Electronics, Inc. in China (Date code K-0314 » mth 03 yr 2014).
|

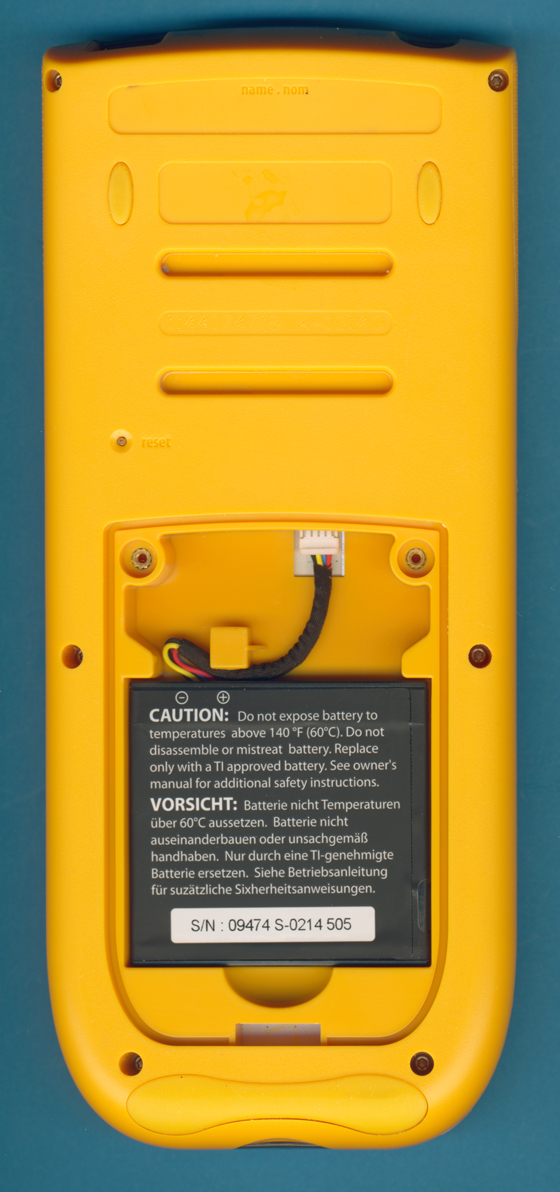

| The TI-84 Plus
C Silver Edition EZ-Spot replaced the 4 AAA-sized alkaline batteries with a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.
|

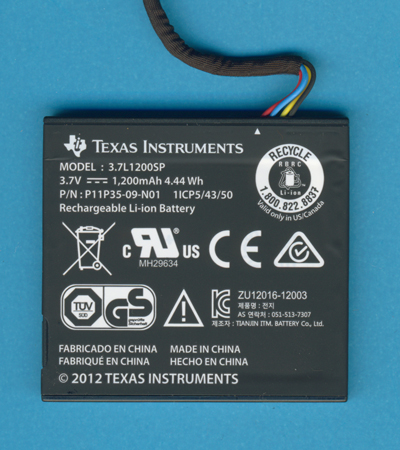

The
Li-ion battery of the TI-84 Plus
C Silver Edition.
|

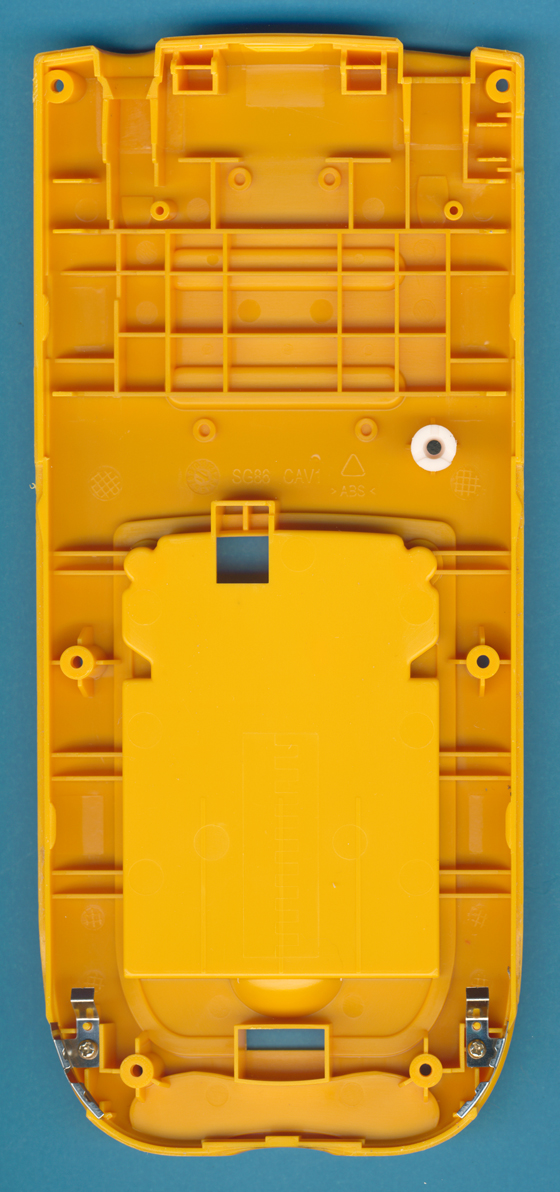

| The additional charging
contacts of the TI-84 Plus
C Silver Edition EZ-Spot are located at the front of the calculator.
|

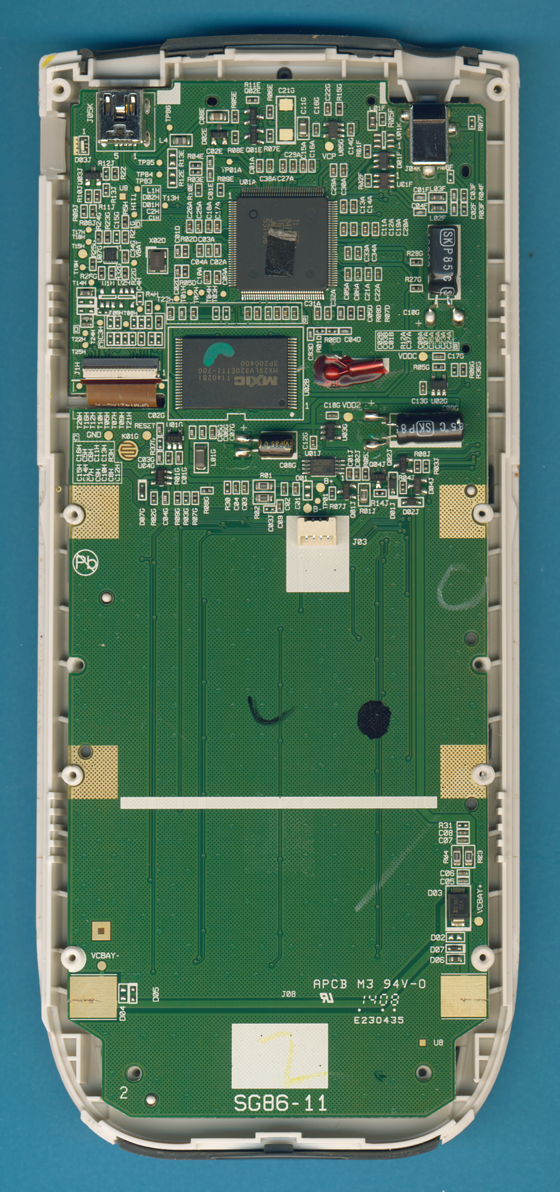

| The printed circuit board
(PCB) of the TI-84 Plus C Silver Edition EZ-Spot manufactured in
March 2014.
|

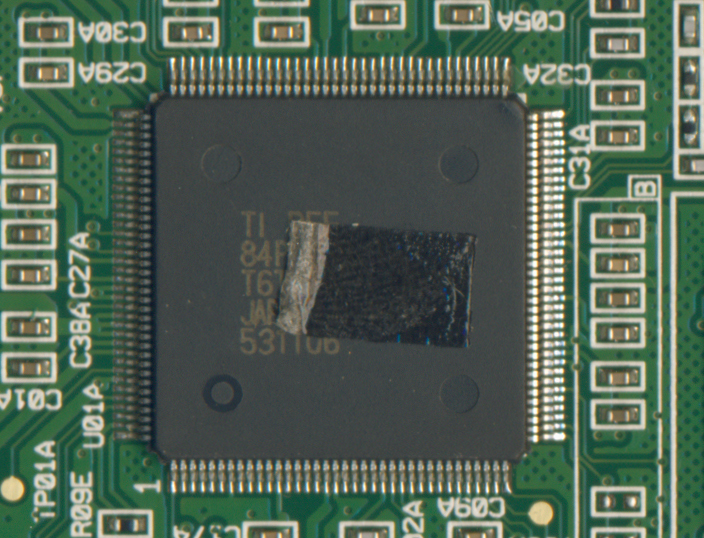

| The TI-84 Plus C Silver Edition
EZ-Spot manufactured in
March 2014 with the "TI-REF 84PLUSB/TA3"
ASIC.
|

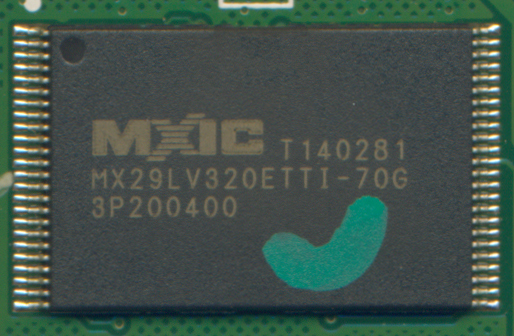

| The
Flash-ROM
of the TI-84 Plus C Silver Edition EZ-Spot manufactured in March 2014 with a
capacity of 4M Bytes.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, May 30, 2020. No reprints without written permission.
