Additional Pictures

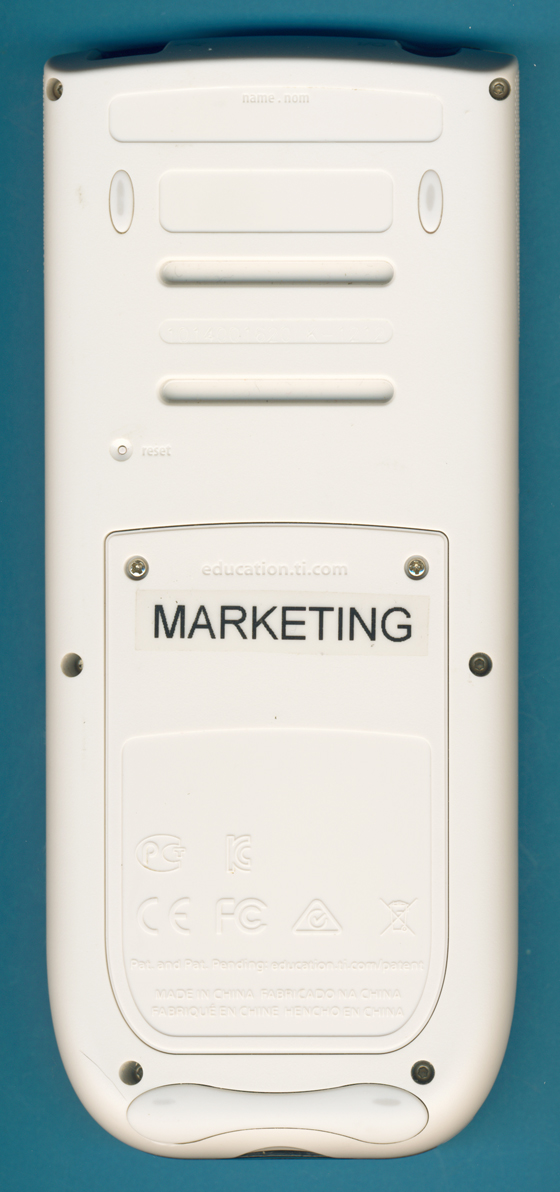

| This TI-84 Plus
C Silver Edition "MARKETING" with the date
code K-1212 was manufactured in December 2012 by Kinpo Electronics, Inc. in China (Date code K-1212 » mth 12 yr 2012).
|
| The TI-84 Plus
C Silver Edition MARKETING replaced the 4 AAA-sized alkaline batteries with a rechargeable Li-ion battery with a capacity of 1,230 mAh and a voltage of 3.7 Volt.
|

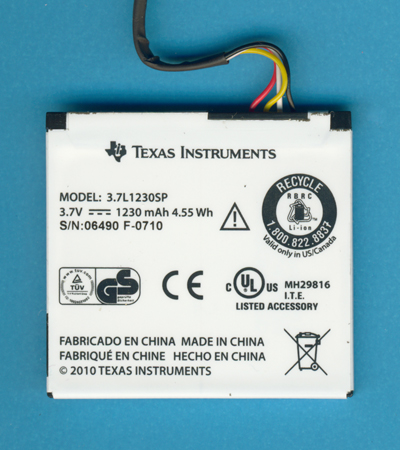

The
Li-ion battery of the TI-84 Plus
C Silver Edition MARKETING. |

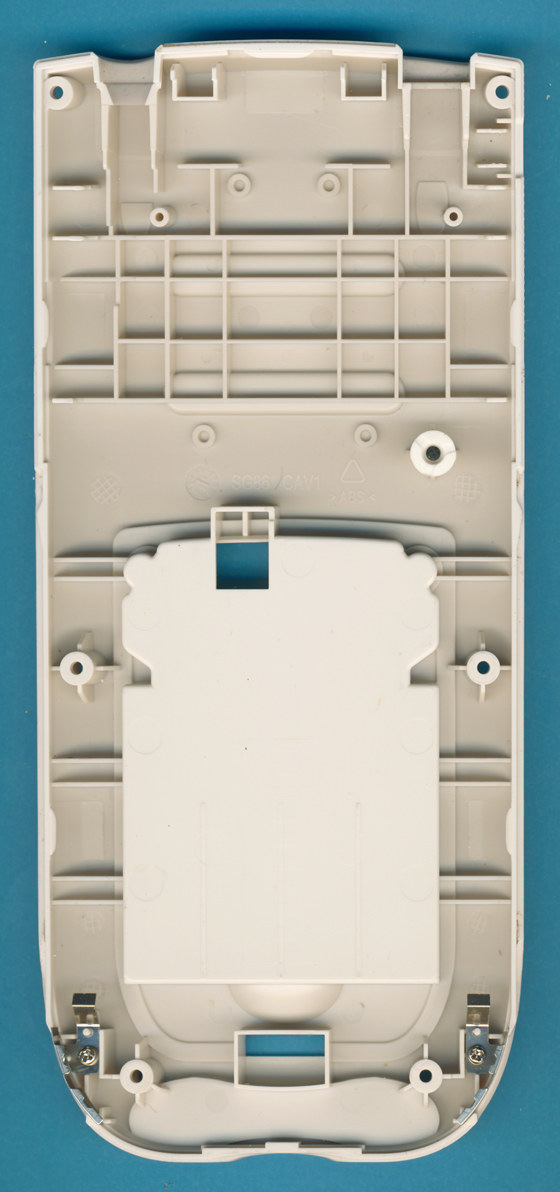

| The additional charging
contacts of the TI-84 Plus
C Silver Edition are located at the front of the calculator.
|

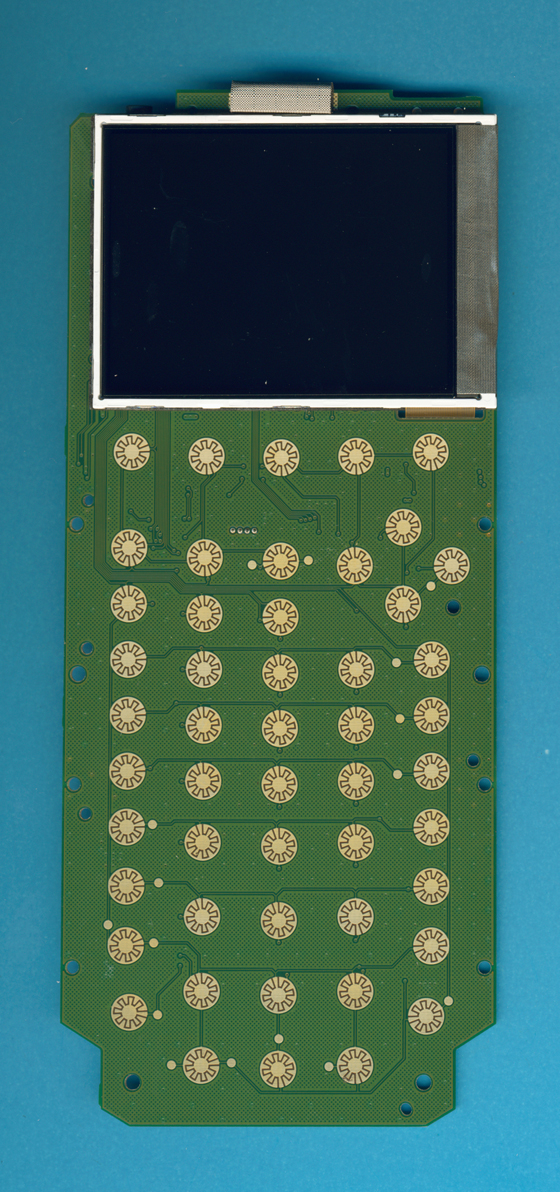

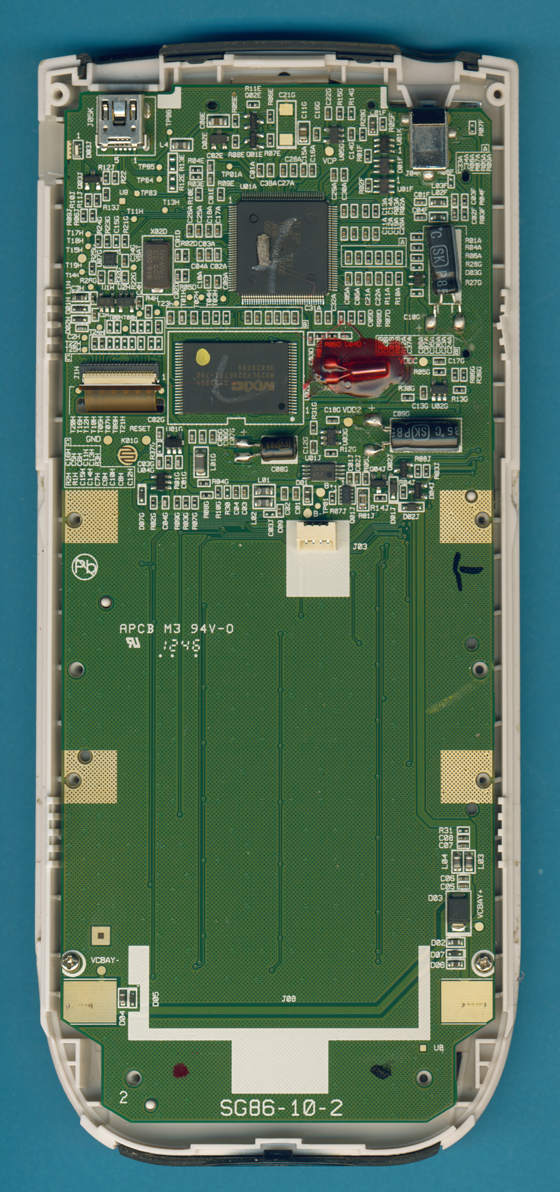

| The printed circuit board
(PCB) of the TI-84 Plus C Silver Edition MARKETING manufactured in
December 2012.
|

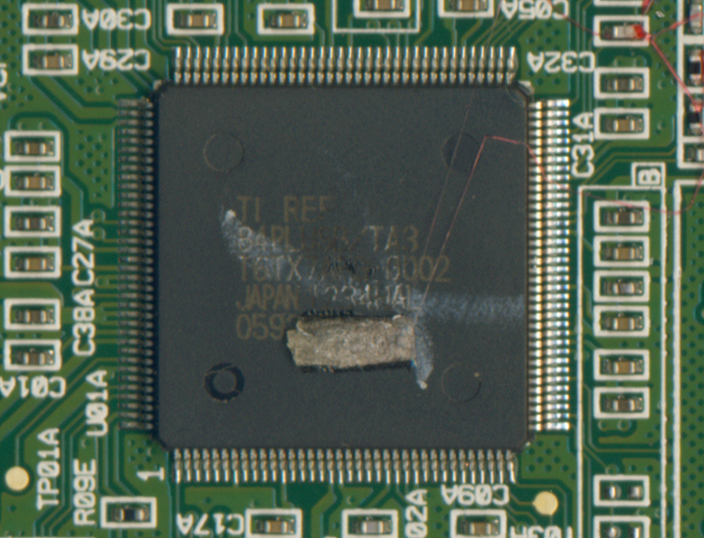

| The TI-84 Plus C Silver Edition manufactured in
December 2012 with the "TI-REF 84PLUSB/TA3"
ASIC.
|

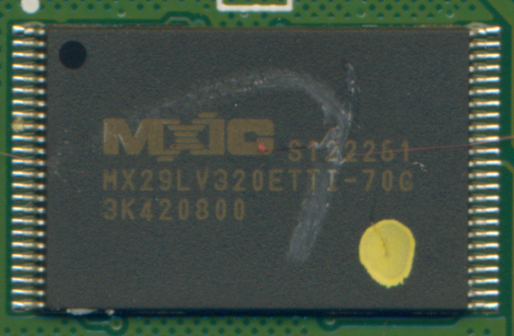

| The
Flash-ROM
of the TI-84 Plus C Silver Edition manufactured in December 2012 with a
capacity of 4M Bytes.
|
