Additional Pictures

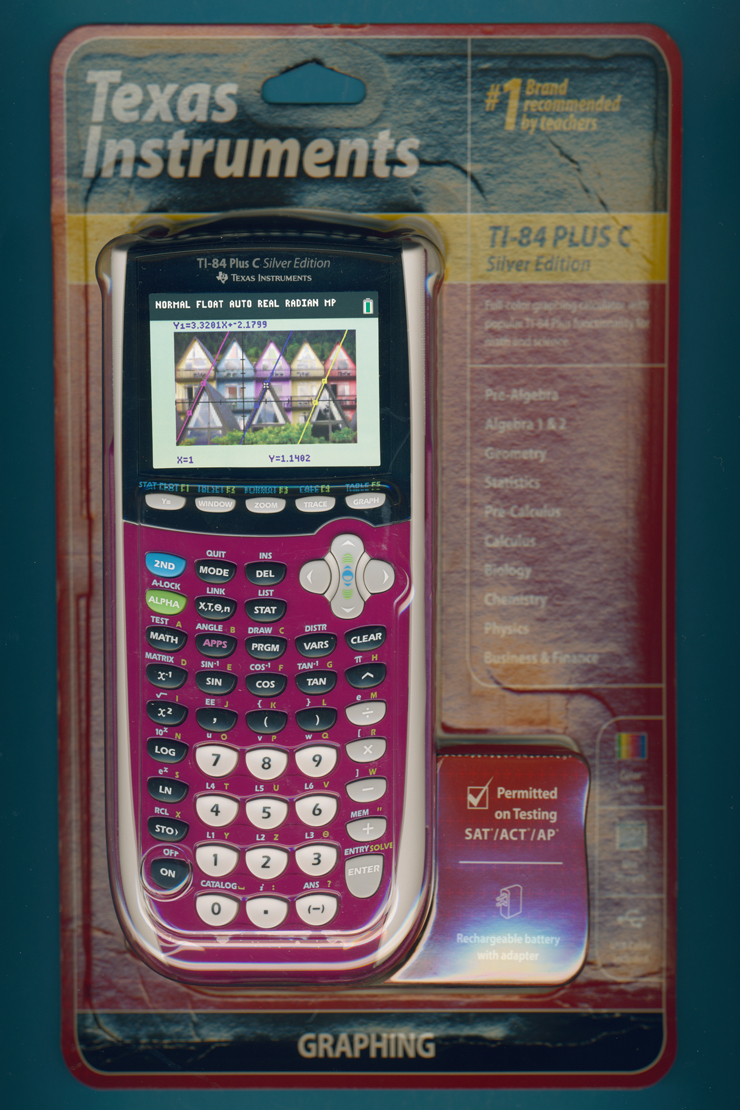

The sales
box of the maroon TI-84 Plus C Silver Edition calculator sold in August 2013
by Wal-Mart in the United States.
  |

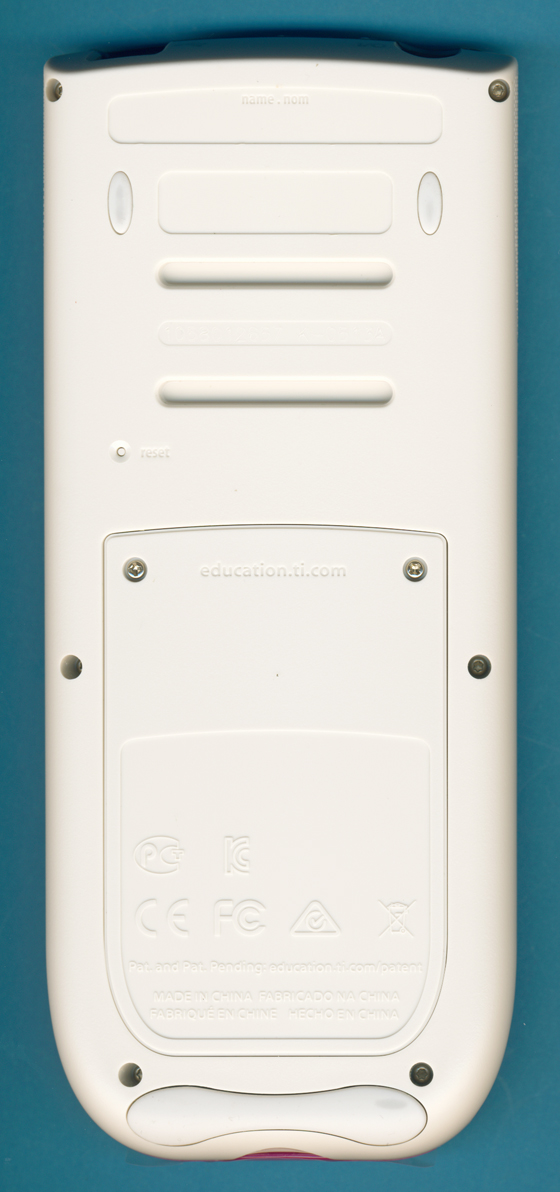

| This TI-84 Plus
C Silver Edition with the date
code K-0513A was manufactured in May 2013 by Kinpo Electronics, Inc. in China (Date code K-0513 » mth 05 yr 2013).
|

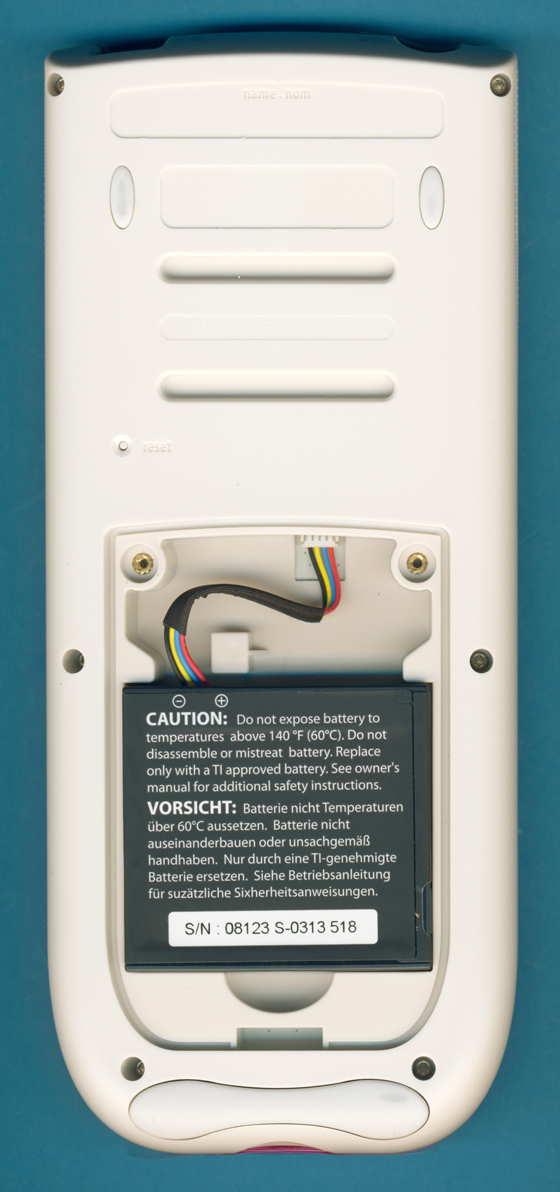

| The TI-84 Plus
C Silver Edition replaced the 4 AAA-sized alkaline batteries with a rechargeable Li-ion battery with a capacity of 1,200 mAh and a voltage of 3.7 Volt.
|

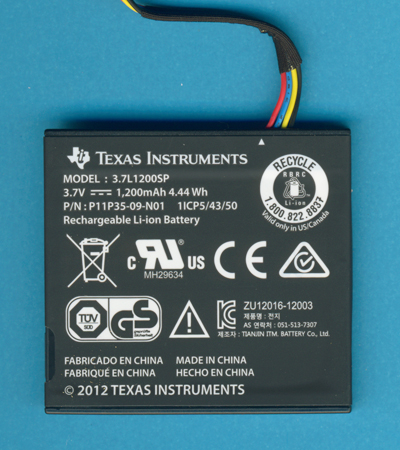

The
Li-ion battery of the TI-84 Plus
C Silver Edition. |

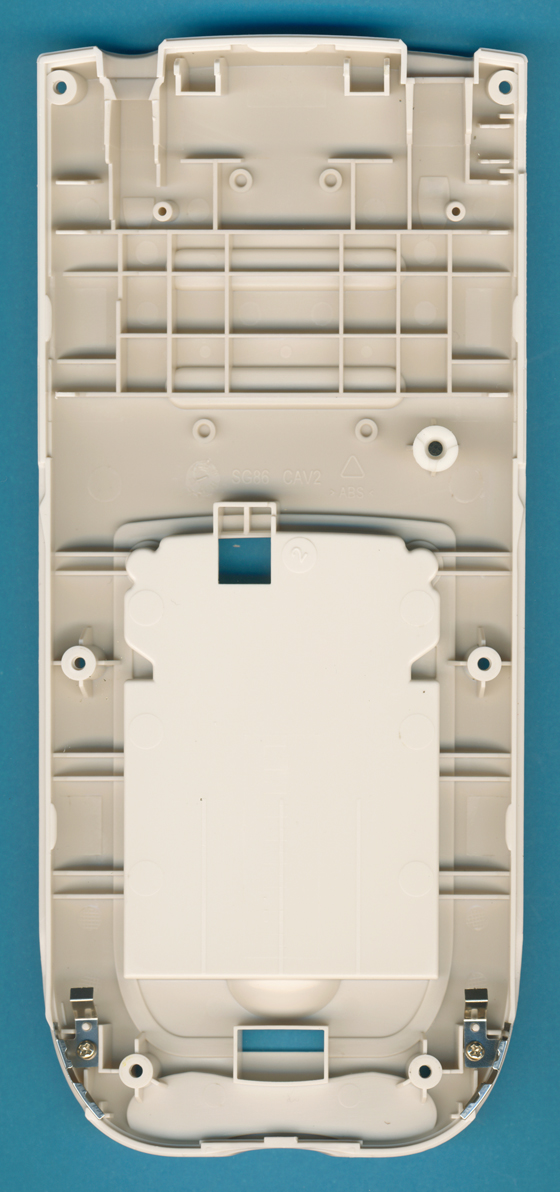

| The additional charging
contacts of the TI-84 Plus
C Silver Edition are located at the front of the calculator.
|

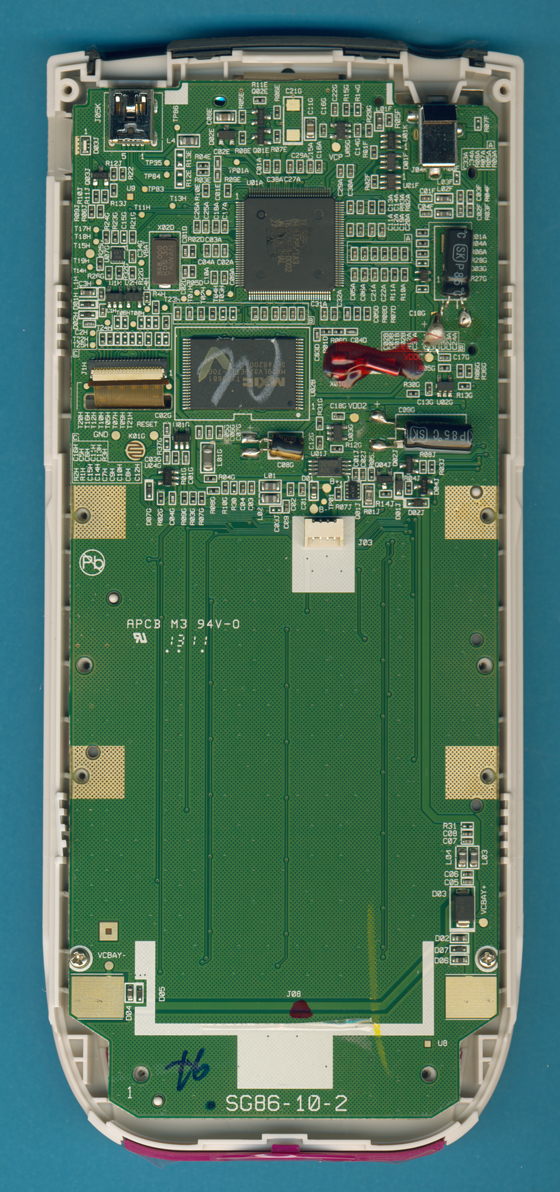

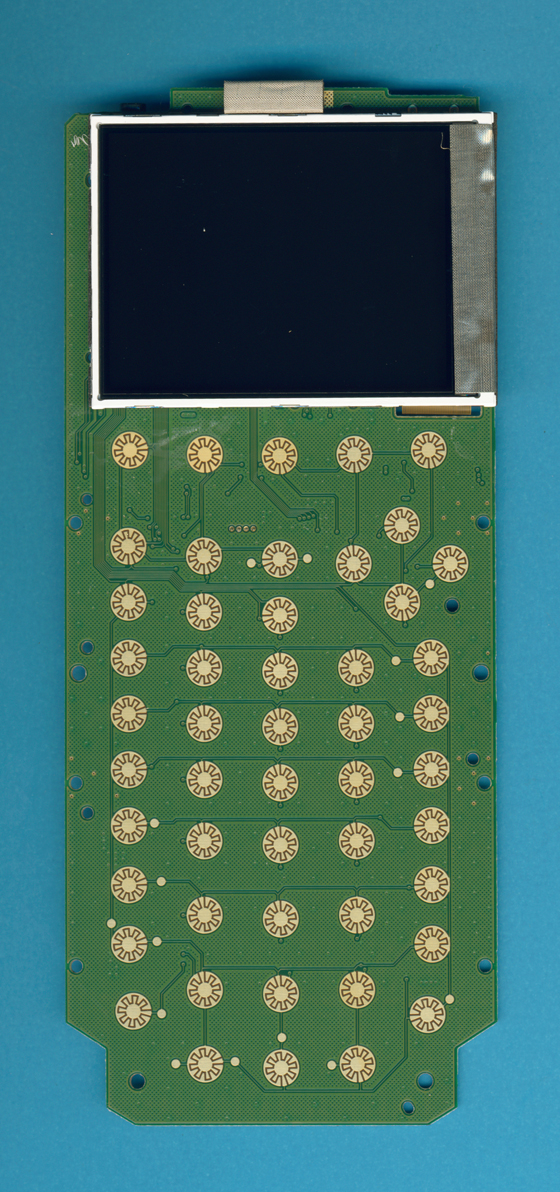

| The printed circuit board
(PCB) of the TI-84 Plus C Silver Edition manufactured in
May 2013.
|

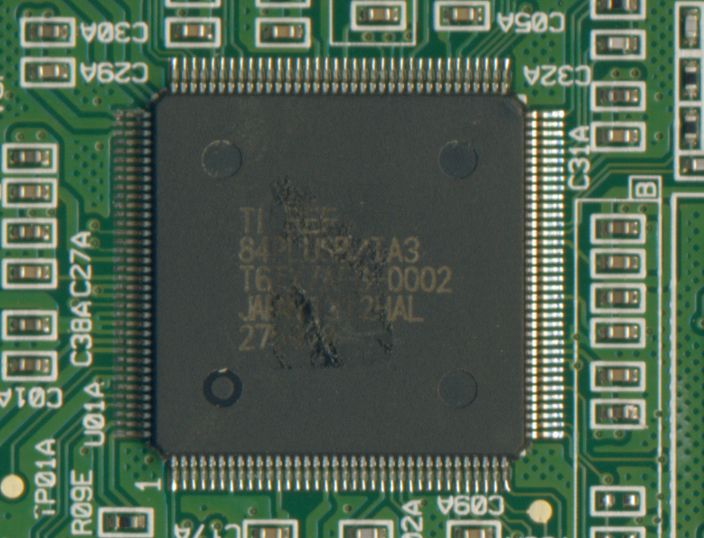

| The TI-84 Plus C Silver Edition manufactured in
May 2013 with the "TI-REF 84PLUSB/TA3"
ASIC.
|

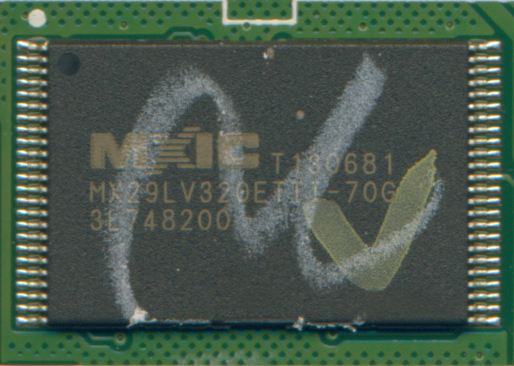

| The
Flash-ROM
of the TI-84 Plus C Silver Edition manufactured in May 2013 with a
capacity of 4M Bytes.
|
