Additional Pictures

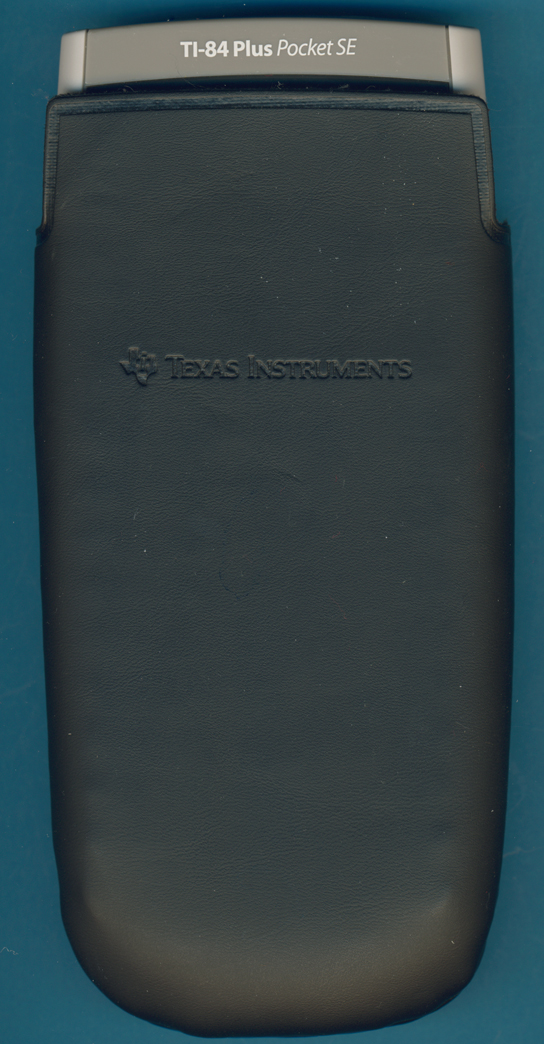

The TI-84 Plus Pocket SE
in its unusual pouch. |
| This TI-84 Plus Pocket SE with the
date
code K-1111 was manufactured by Kinpo Electronics in China in November 2011.
|
| Please notice the
LR44 battery.
|

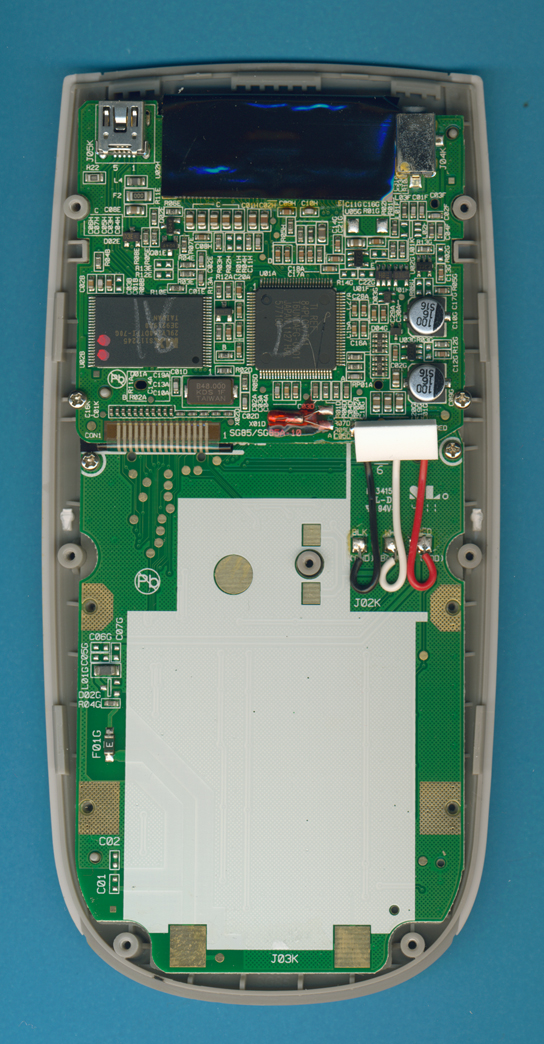

| The printed circuit board
(PCB) of the TI-84 Plus Pocket SE manufactured in 2011 looks very familiar to us.
|
| The TI-84 Pocket Plus SE ASIC
TI-REF 84PLCR/TA1 in a standard flatpack housing.
|
| The TI-82 Plus
Flash-ROM
Macronix 29LV160 with 2M Byte capacity.
|
If you have additions to the above article please email: joerg@datamath.org.
