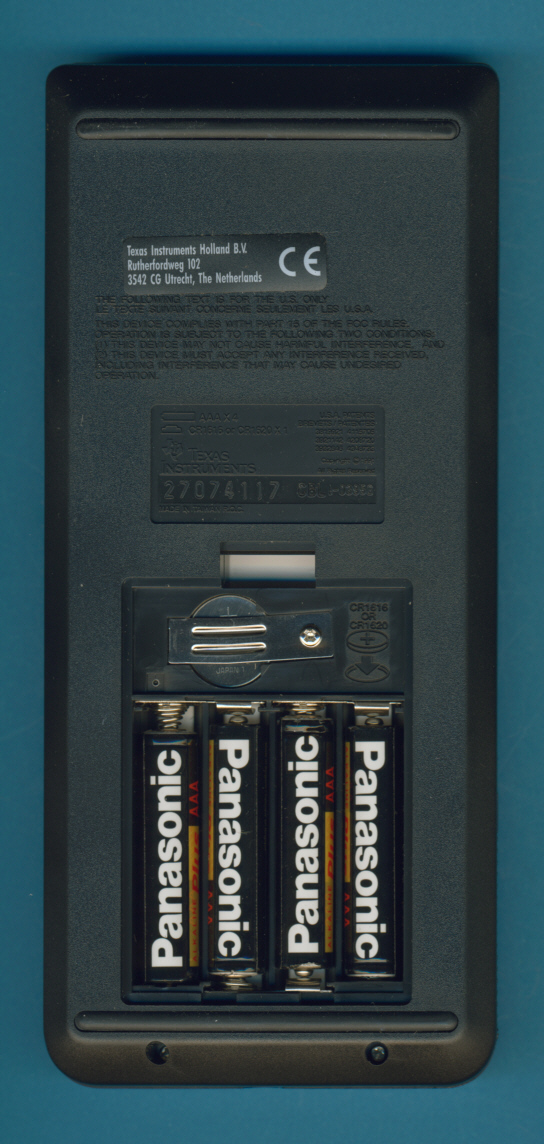

This late TI-85 with the Date code I-0395 was manufactured by
Inventec in Taiwan in March 1995.

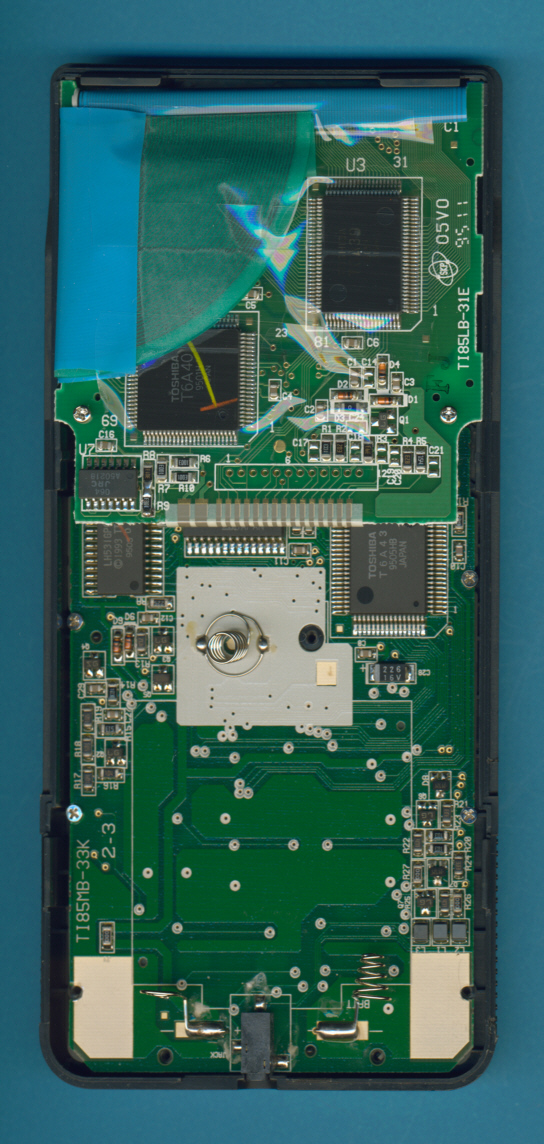

The PCB (printed circuit board) of this TI-85 manufactured
in October 1992 looks very similiar to the first TI-81 introduced in 1990.

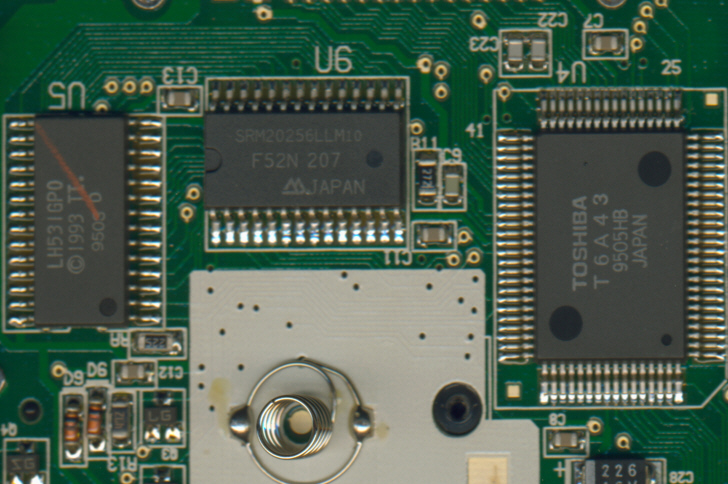

The main components of the TI-85: Toshiba T6A43 Application Specific CPU,  Sharp LH531©1993ROM
and Suwa Seikosha SRM20256 RAM.

The Toshiba T6A43 Application Specific CPU.

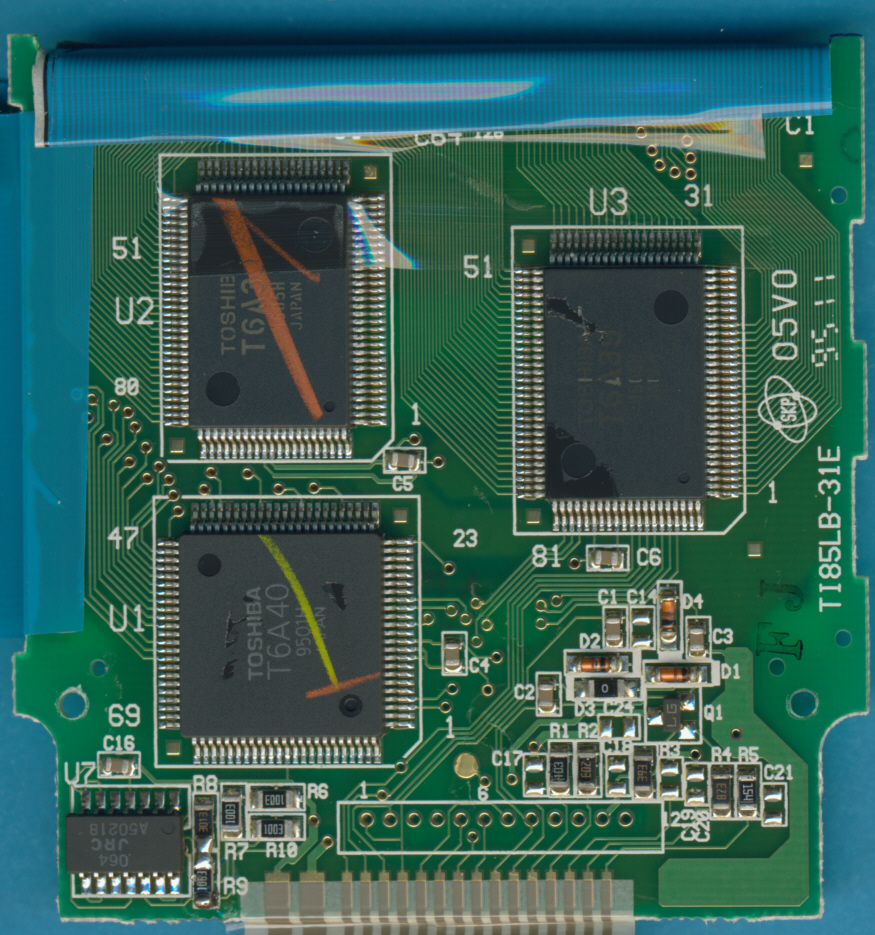

This early TI-85 graphing calculator makes use of three display drivers :
Two T6A39 column drivers and one T6A40 row driver.
