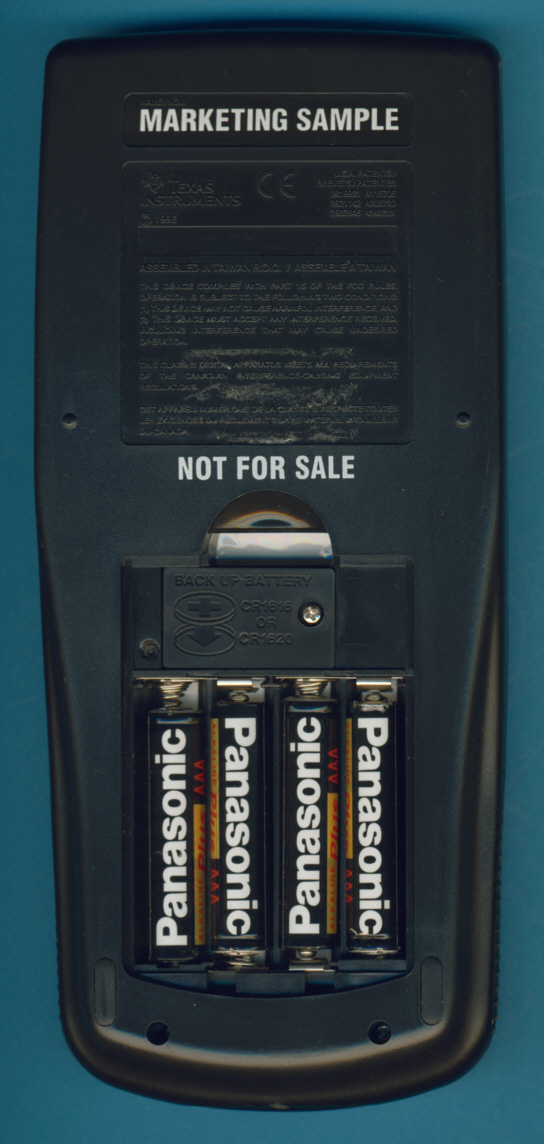

This TI-86 Marketing Sample w/o Date code was manufactured
by Inventec in Taiwan in February 1997.

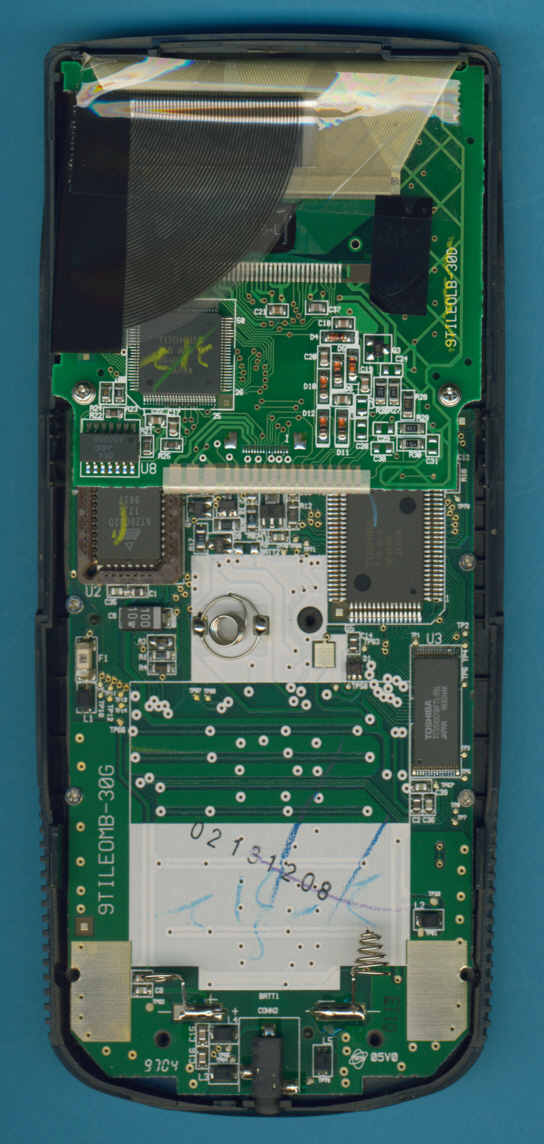

The TI-86 makes use of two PCB's (printed circuit boards),
one each for the display and main electronics.

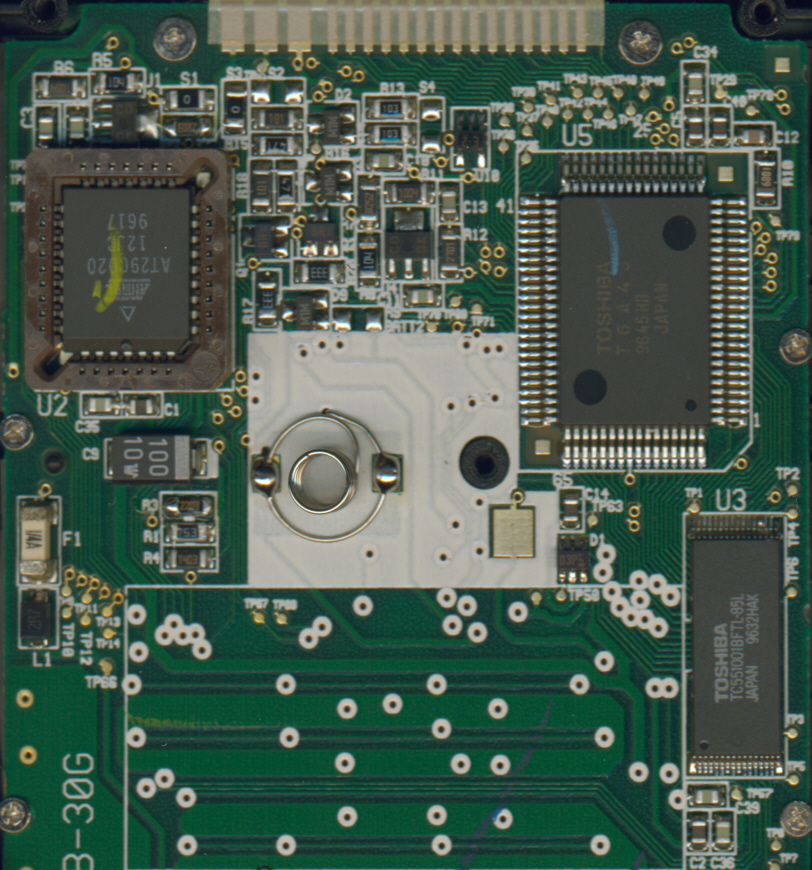

The main components of the TI-86: Toshiba T6A43 Application Specific CPU
Atmel AT29C020 Flash-ROM and Epson SRM20100 RAM.

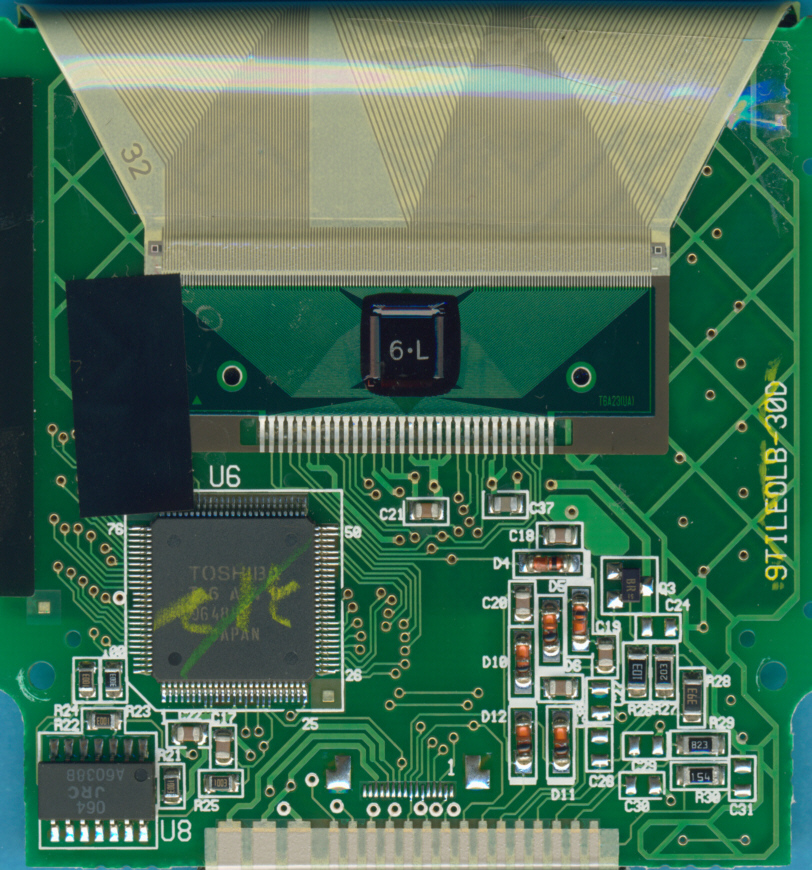

The Toshiba T6A23 column display driver of the TI-86  in a small
COB housing supported by a Toshiba T6A40 row display driver.
