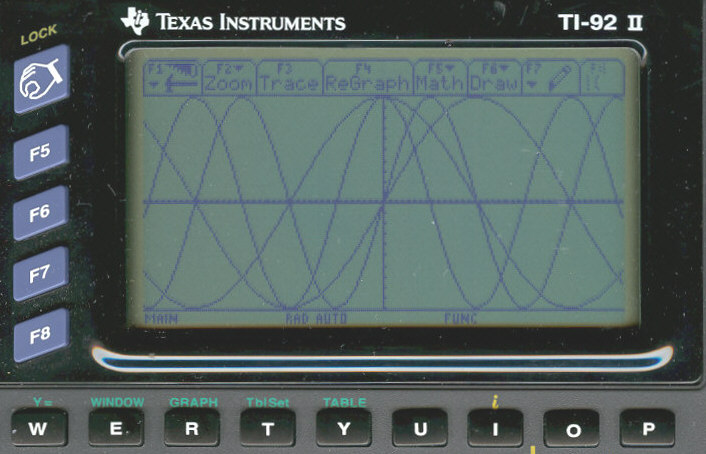

The crisp and clear screen of the TI-92 II in graphing mode.

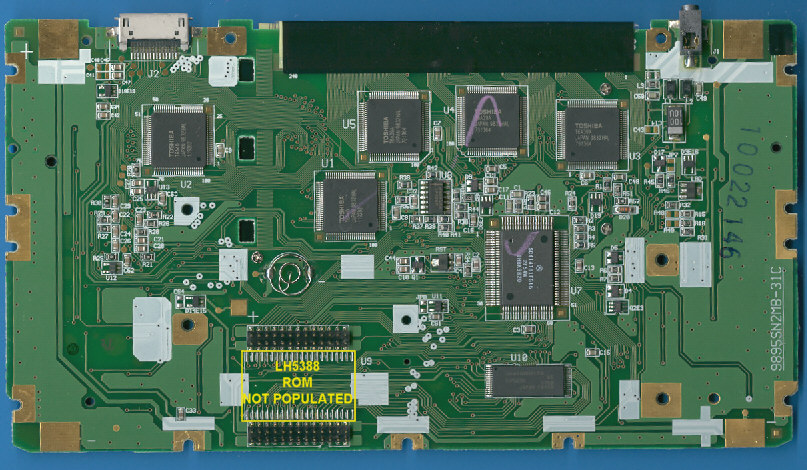

The printed circuit board (PCB) of the early TI-92 is centered around a powerful Motorola SC414181 Application
Specific CPU, one Toshiba TC551001 RAM (128k Byte) and a total of 5 display drivers for the graphics screen.
The Operating System is stored in one IEC9895S-960819E ROM in the Expansion Module.
