Additional Pictures

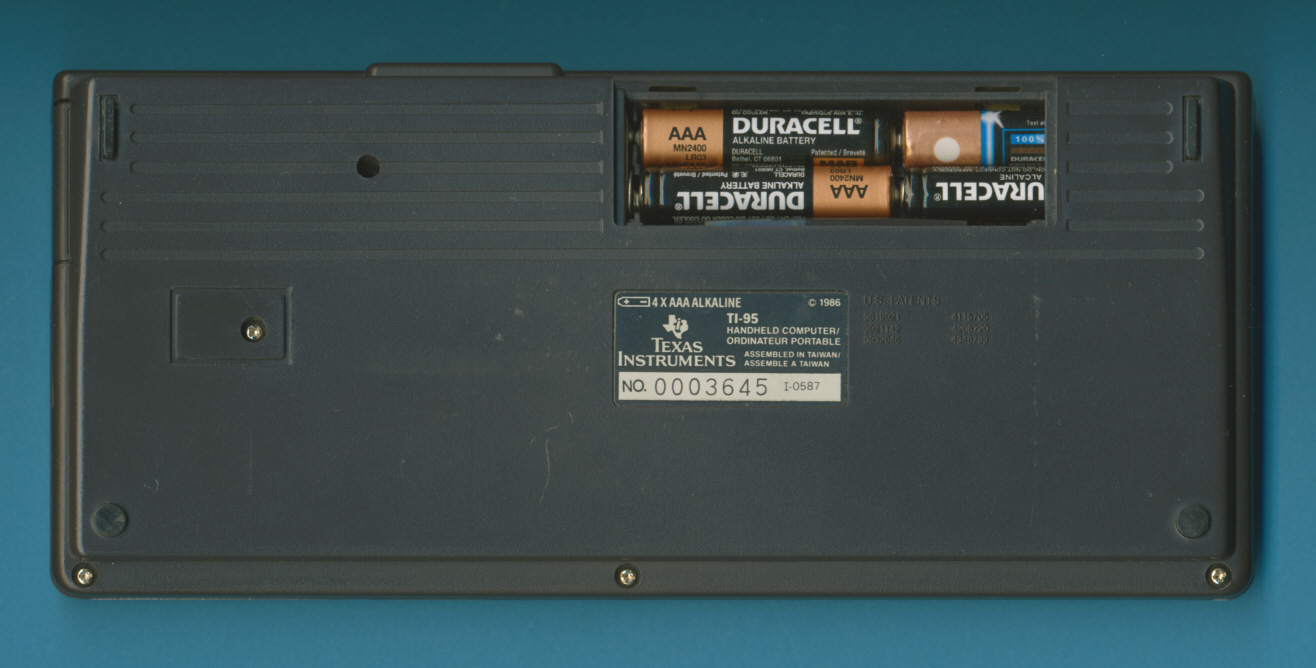

This TI-95 PROCALC was manufactured in May 1987 by Inventec Corporations in Taiwan (Date code I-0587 » mth 05 yr 1987).

The TI-95 PROCALC dismantled.

The lower printed circuit board (PCB) of the TI-95 PROCALC with the display controller and driver.

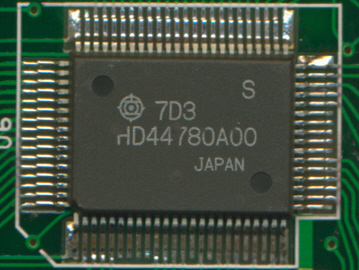

The Hitachi HD44780 display controller.

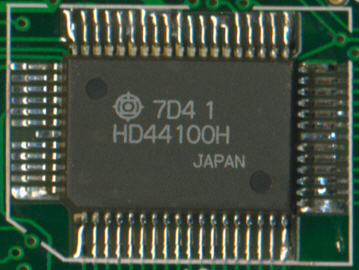

The Hitachi HD44100 LCD driver.
