Additional Pictures

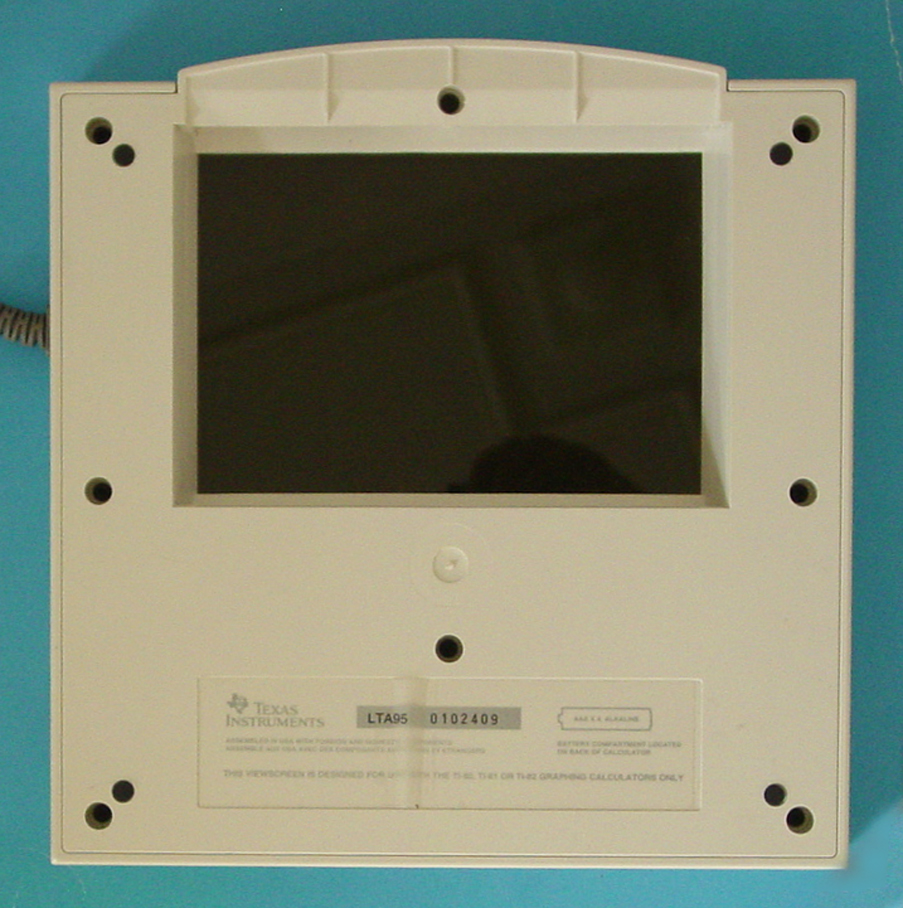

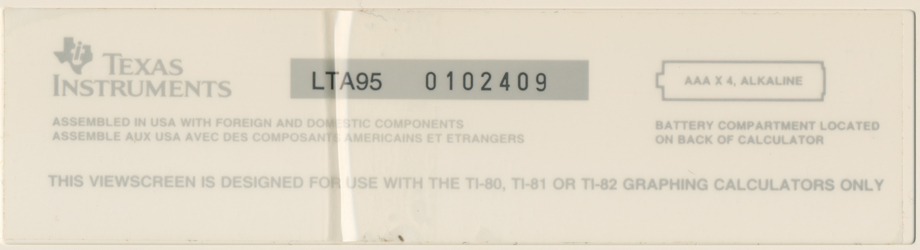

This TI ViewScreen 82 was manufactured in August 1995 by
Texas Instruments in Lubbock, TX (Date code LTA95   yr 1995).

The TI ViewScreen 82 units manufactured between 1995 and 1997 support
only the TI-80, TI-81, and TI-82 ViewScreen Calculators.

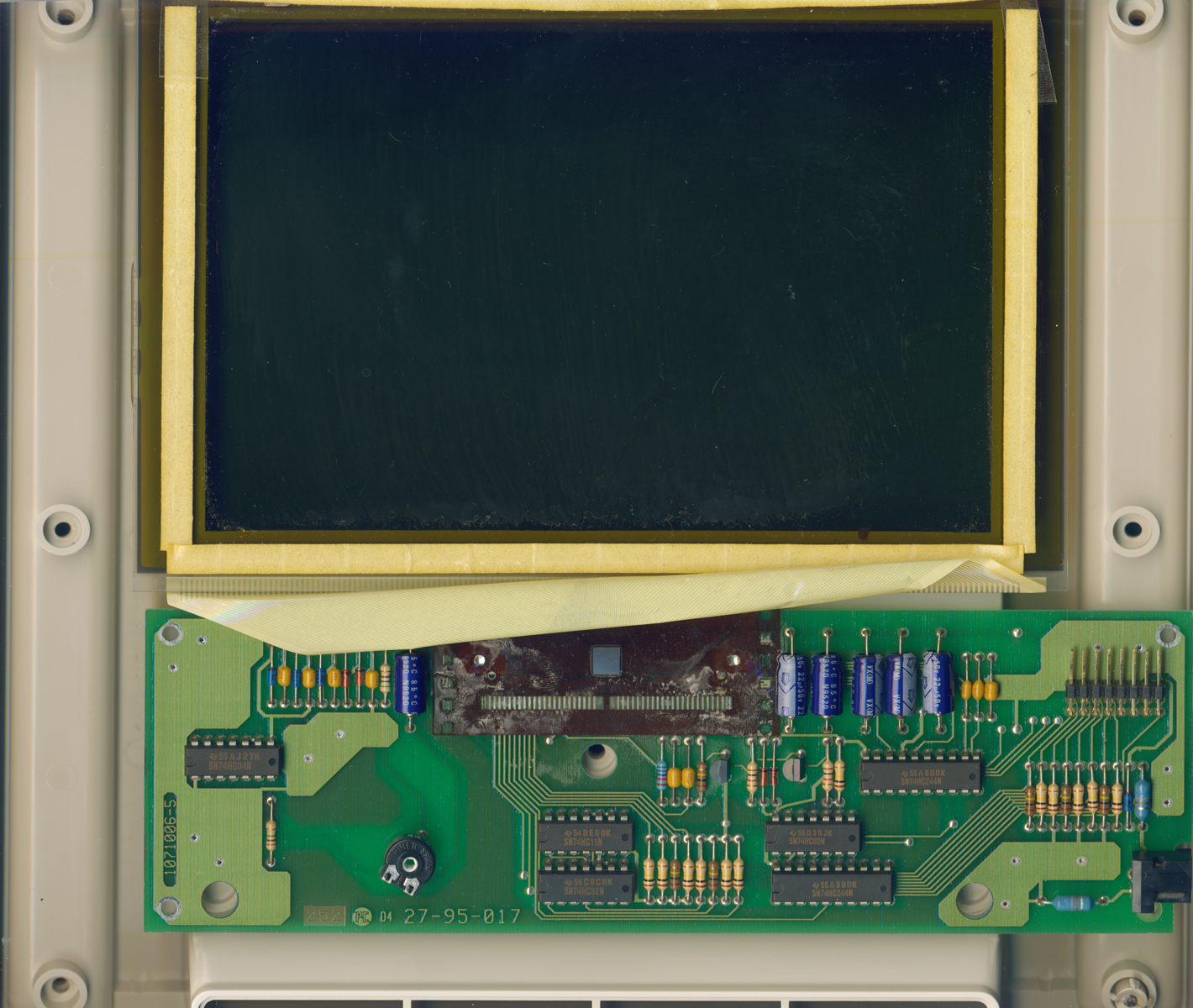

The printed circuit board (PCB) of this TI ViewScreen 82 manufactured in August 1995 is centered around a Toshiba T6A04 display
driver with some additional components and connected to a huge, transmissive LCD Screen.

Close-up view of the Toshiba T6A04 display driver.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, August 9, 2020. No reprints without written permission.
