Additional Pictures

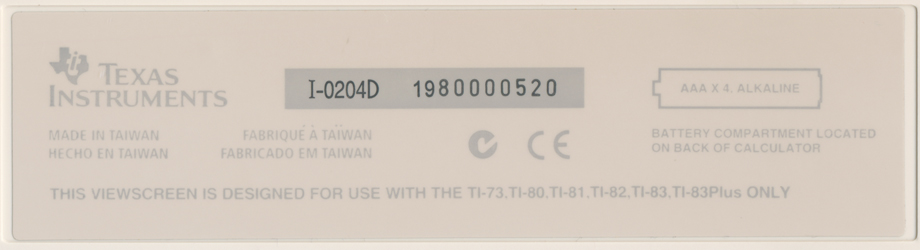

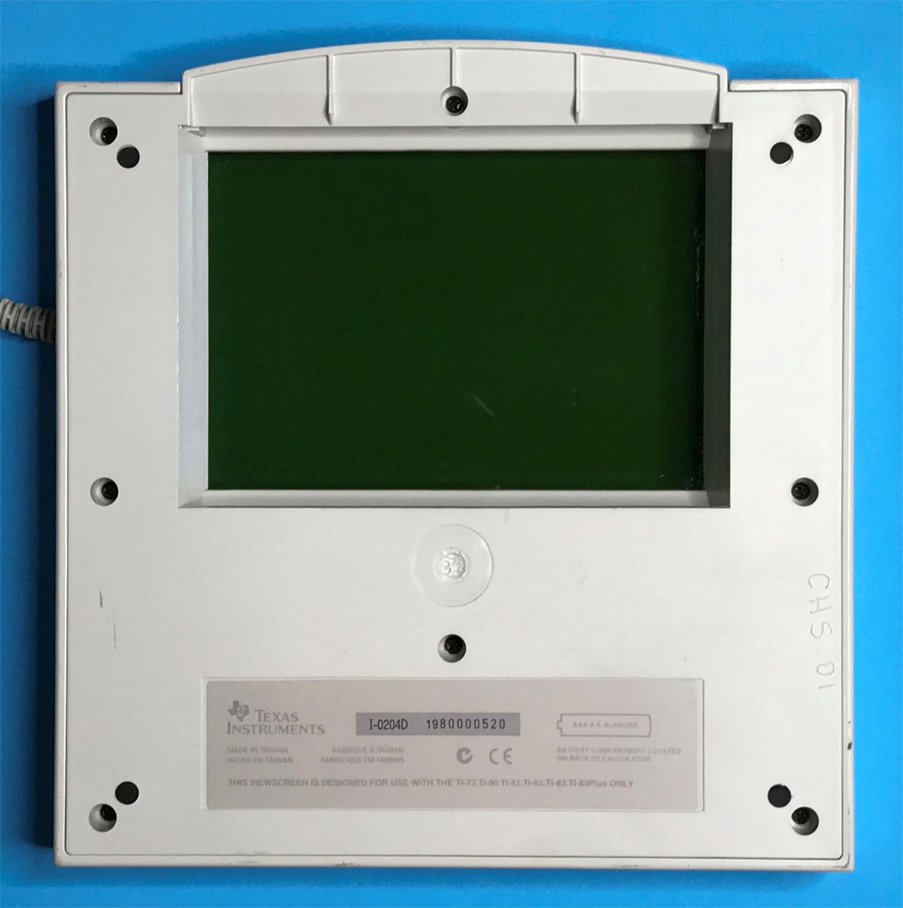

This TI ViewScreen 82 was manufactured in February 2004 by
Inventec Corporation in Taiwan (Date code I-0204D mth 02 yr 2004).

The TI ViewScreen 82 units manufactured between 1999 and 2004 support
the TI-73, TI-80, TI-81, TI-82, TI-83, and TI-83 Plus ViewScreen Calculators.

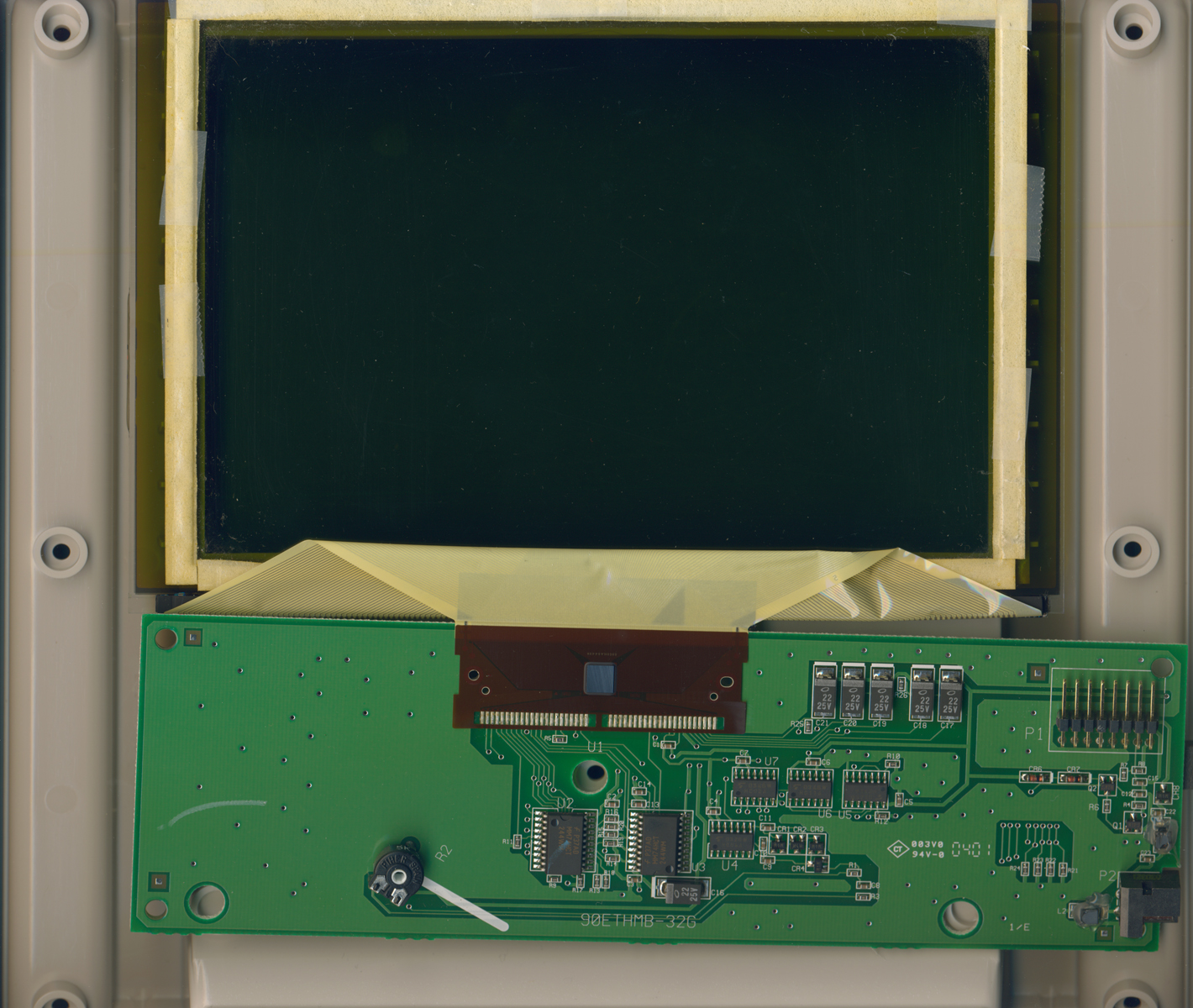

The printed circuit board (PCB) of this TI ViewScreen 82 manufactured in February 2004 is centered around a Toshiba T6A04A display
driver with some additional components and connected to a huge, transmissive LCD Screen.

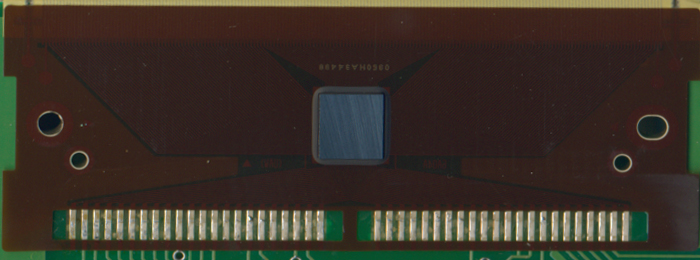

Close-up view of the Toshiba T6A04A display driver.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, August 27, 2020. No reprints without written permission.
