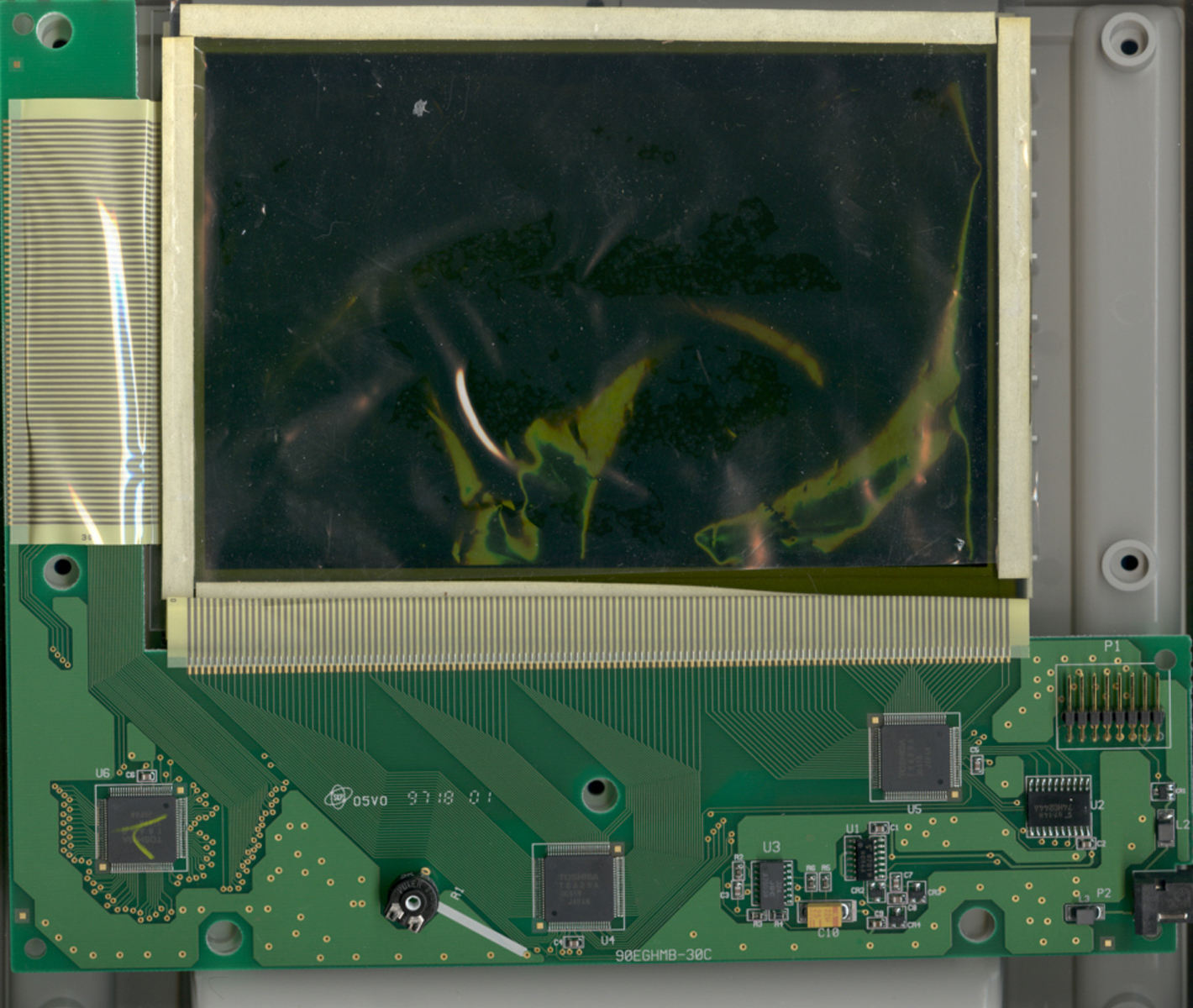

circuit board (PCB) of this TI ViewScreen 85 manufactured in
June 1997 is centered around a set of Toshiba T6A39A and T6A40 display drivers with some additional components and connected to a huge, transmissive LCD Screen.
|
||
| The first
Toshiba T6A39A column driver.
|
The second
Toshiba T6A39A column driver.
|
The single
Toshiba T6A40 row driver.
|
