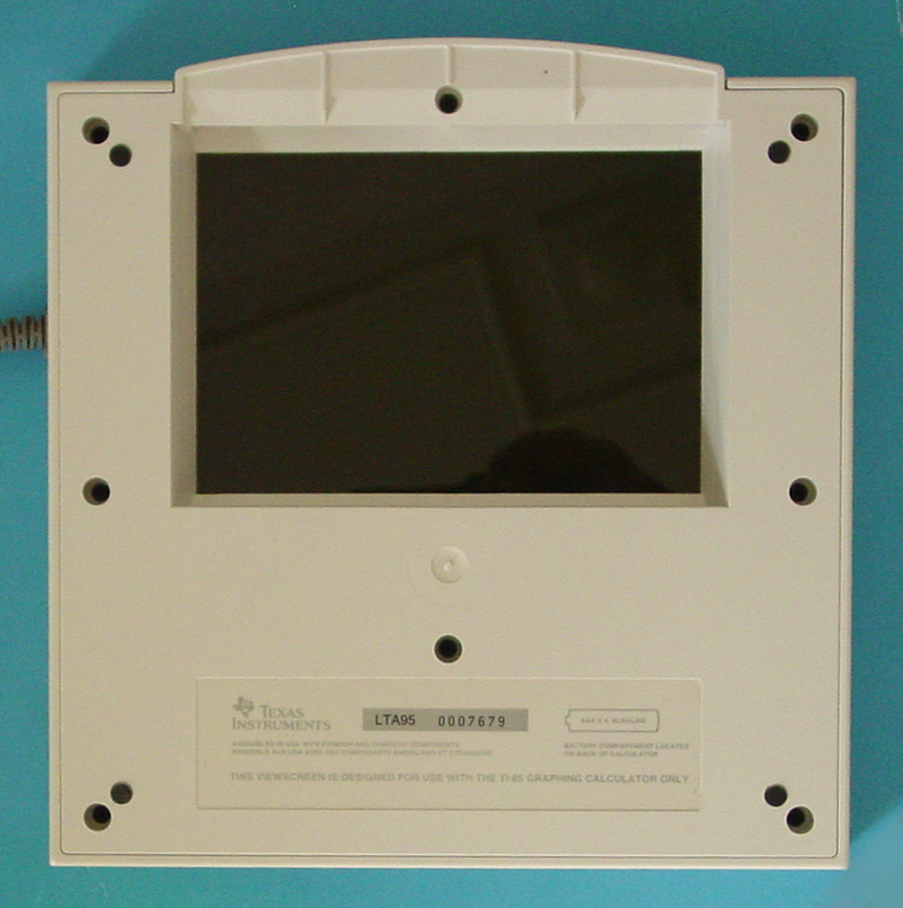

This
TI ViewScreen 85
was

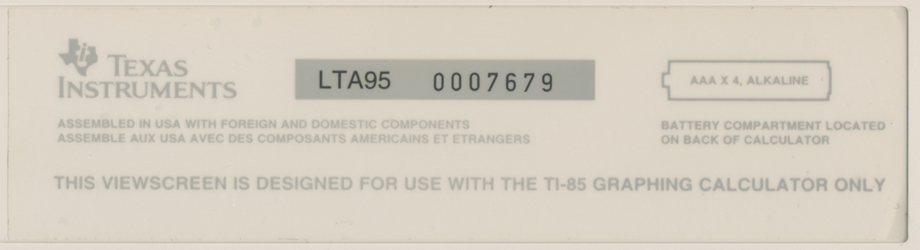

manufactured in February 1995 by Texas Instruments in Lubbock, TX (Date code LTA95 » yr 1995). |
||
The TI ViewScreen 85 units manufactured between 1994
and 1997 support only the TI-85 ViewScreen Calculator. |
||

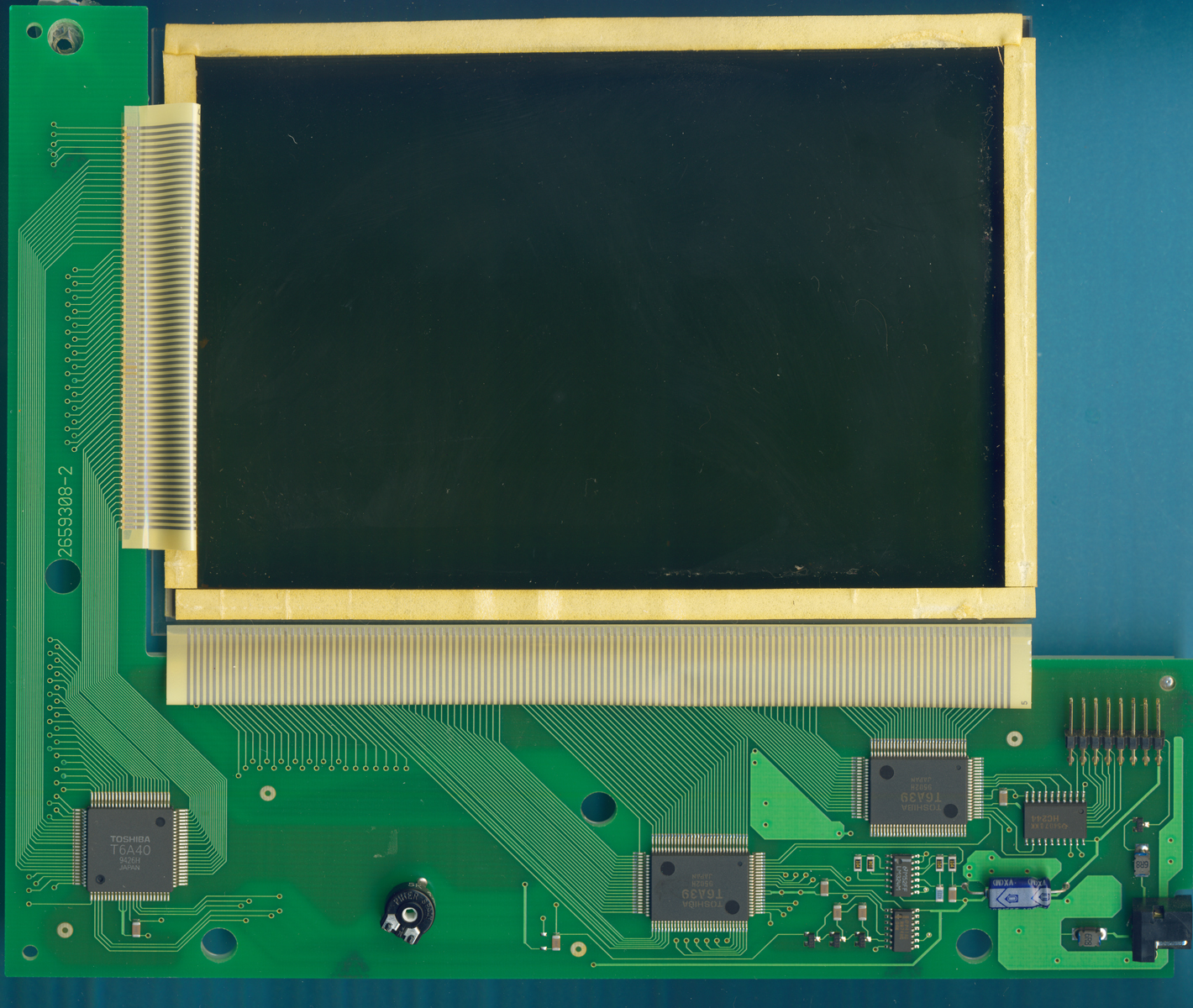

The printed
circuit board (PCB) of this TI ViewScreen 85 manufactured in
February 1995 is centered around a set of Toshiba T6A39 and T6A40 display drivers with some additional components and connected to a huge, transmissive LCD Screen. |
||

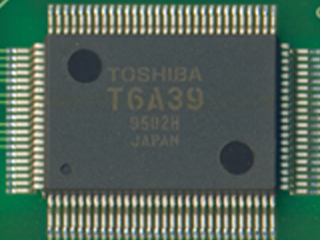

The first
Toshiba T6A39 column driver.
|

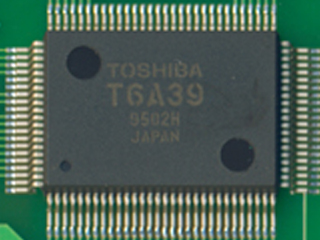

The second
Toshiba T6A39 column driver.
|

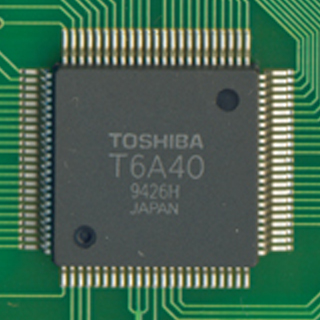

The single
Toshiba T6A40 row driver.
|
