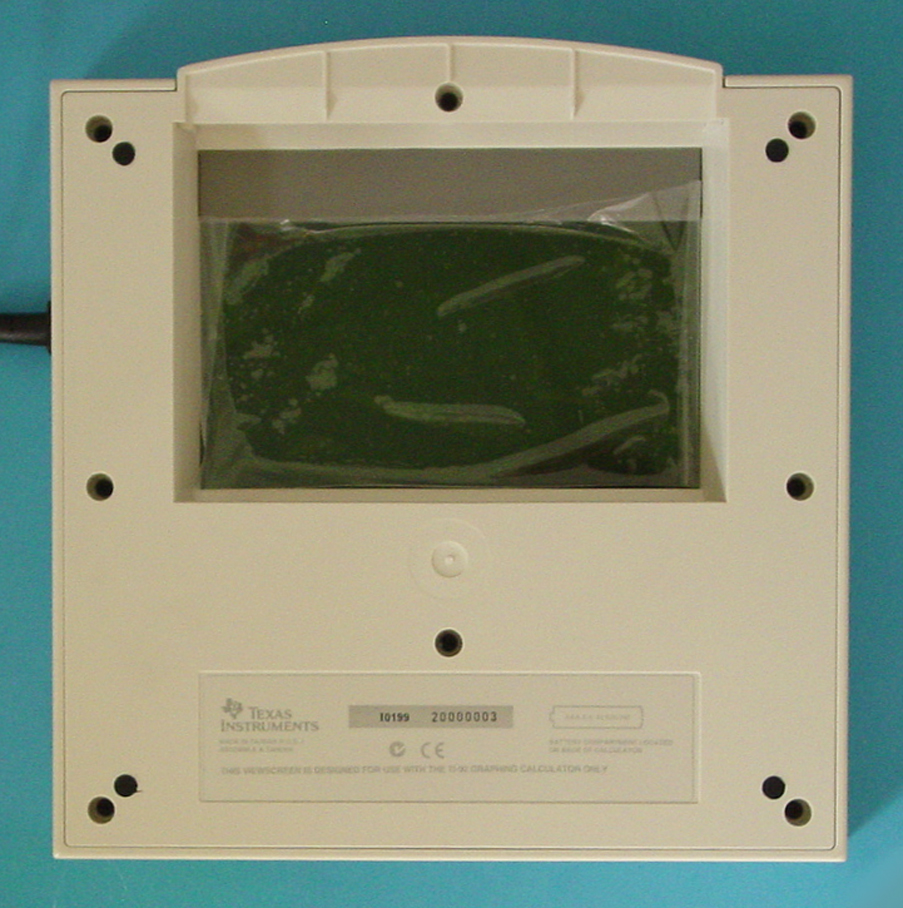

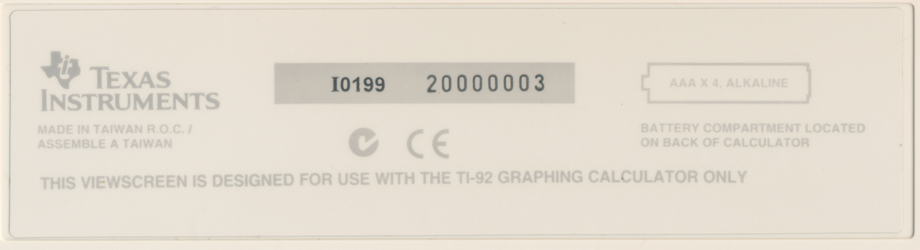

This TI ViewScreen 92 was manufactured in January 1999 by
Inventec Corporation in Taiwan (Date code I-0199 »  mth 01 yr 1999).

The TI ViewScreen 92 units manufactured between 1997 and 1999 support
only the TI-92 Calculator.

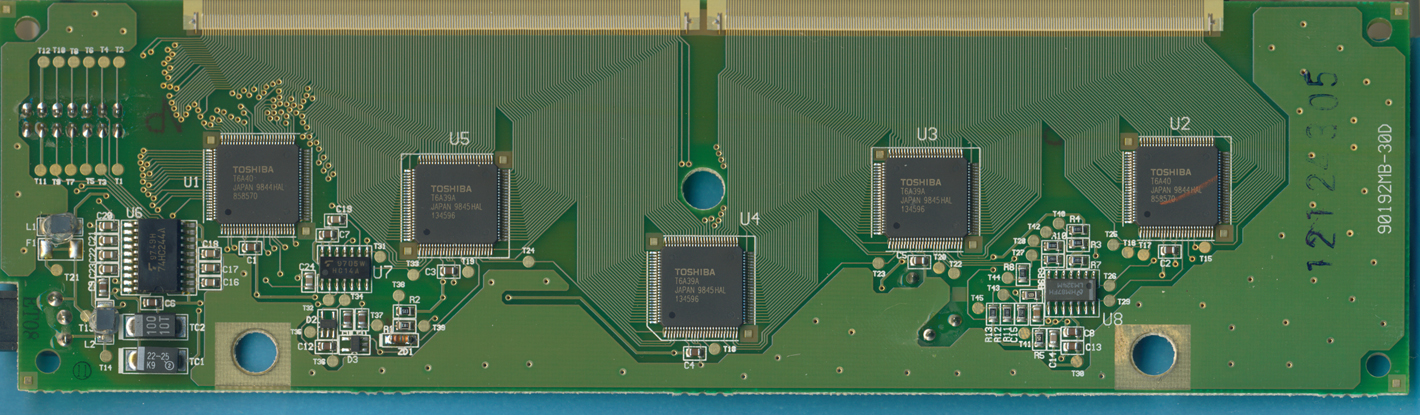

The printed circuit board (PCB) of this TI ViewScreen 92 manufactured in January 1999 is centered around a set of Toshiba T6A39A
and T6A40 display drivers with some additional components and connected to a huge, transmissive LCD Screen.

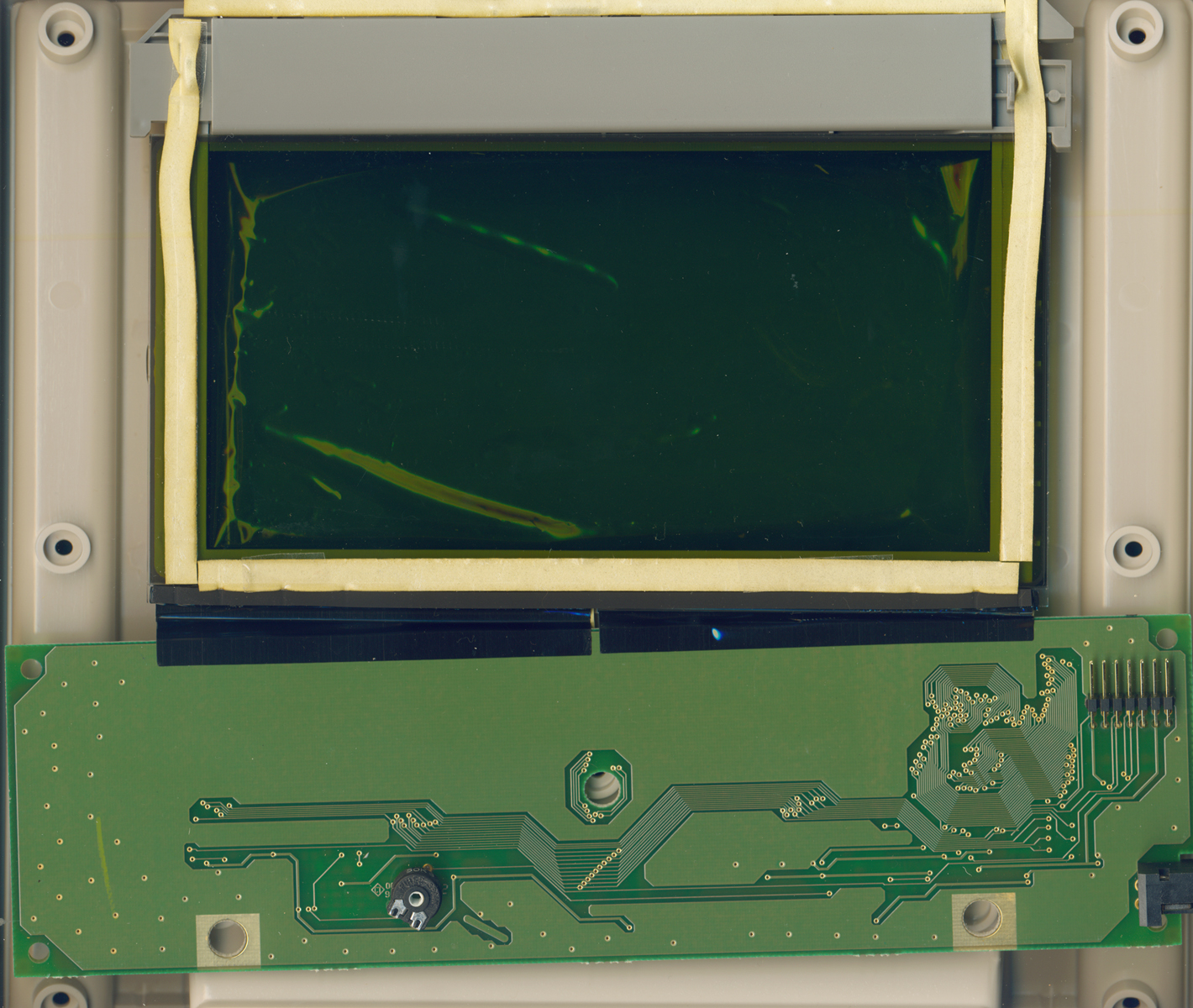

Component-side of the printed circuit board (PCB) of this TI ViewScreen 92 manufactured in January 1999.

The first Toshiba T6A39A
column driver.

The second Toshiba T6A39A
column driver.

The third Toshiba T6A39A
column driver.

The first Toshiba T6A40
row driver.

The second Toshiba T6A40
row driver.
